Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.Features & Details
- 48-Inch Heavy-Duty Bending: This sheet metal brake handles metal sheets up to 48″ wide with bending angles from 0° to 135°, making it ideal for medium-size fabrication shops and heavy-gauge projects.
-
- Mild Steel, Stainless Steel, Copper, and Aluminum compatibility
- Bending capacity up to 12-gauge (2.5 mm) mild steel
- Engineered for demanding industrial applications
- Customizable Die Setup: This sheet metal bender includes 8 segmented fingers (3″ x 4 pcs, 4″ x 3 pcs, 25″ x 1 pc) that can be freely arranged for precise, segmented bends. Perfect for fabricating electrical enclosures, casings, HVAC components, and complex flanged panels.
- Dual Counterweights for Stability: Designed with dual balancing hammers, this metal bending machine provides stronger, more stable clamping of large sheets while reducing operator effort—ideal for heavy-duty bending tasks.

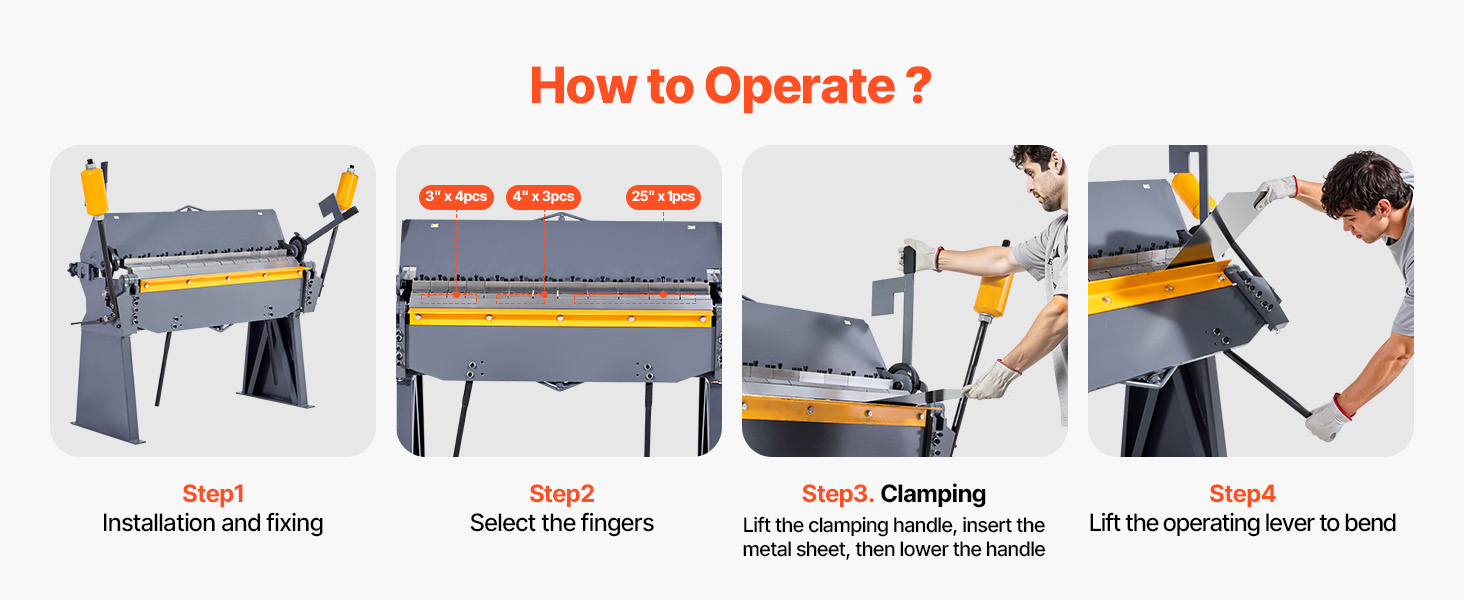

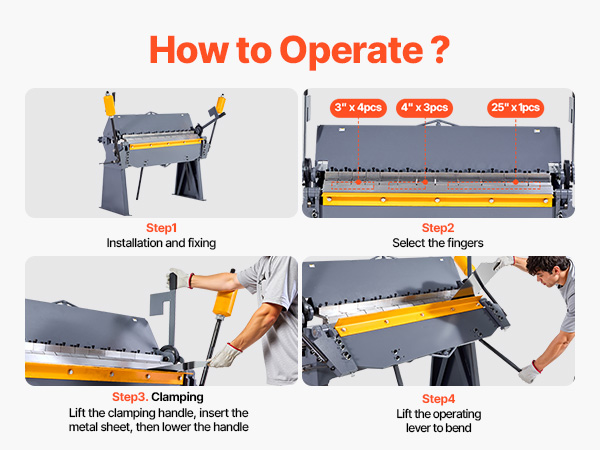

- Easy Operation: The aluminum brake bender is designed for straightforward operation. Simply lift the clamping handle, position the sheet metal, and lower the handle to secure it. Gradually raise the lever to the desired angle. Angle adjustments are manual; note that all metal bending will exhibit springback (e.g., for a 90° bend, set the angle to 92°).

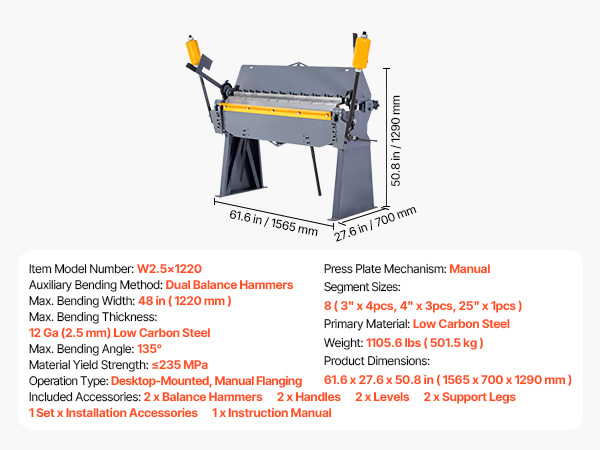

Technical Specifications
| Item Model Number | W2.5×1220 |
|---|---|
| Auxiliary Bending Method | Dual Balance Hammers |
| Max. Bending Width | 48 in (1220 mm) |
| Max. Bending Thickness | 12 Ga (2.5 mm) Low Carbon Steel |
| Max. Bending Angle | 135° |
| Mounting Type | Desktop-Mounted, Manual Flanging |
| Press Plate Mechanism | Manual |
| Segments | 8 (3″ x 4pcs, 4″ x 3pcs, 25″ x 1pcs) |
| Material | Low Carbon Steel |
| Weight | 1105.6 lbs (501.5 kg) |
| Product Dimensions (with Balance Hammer) | 61.6 x 27.6 x 50.8 in (1565 x 700 x 1290 mm) |
Detailed Overview

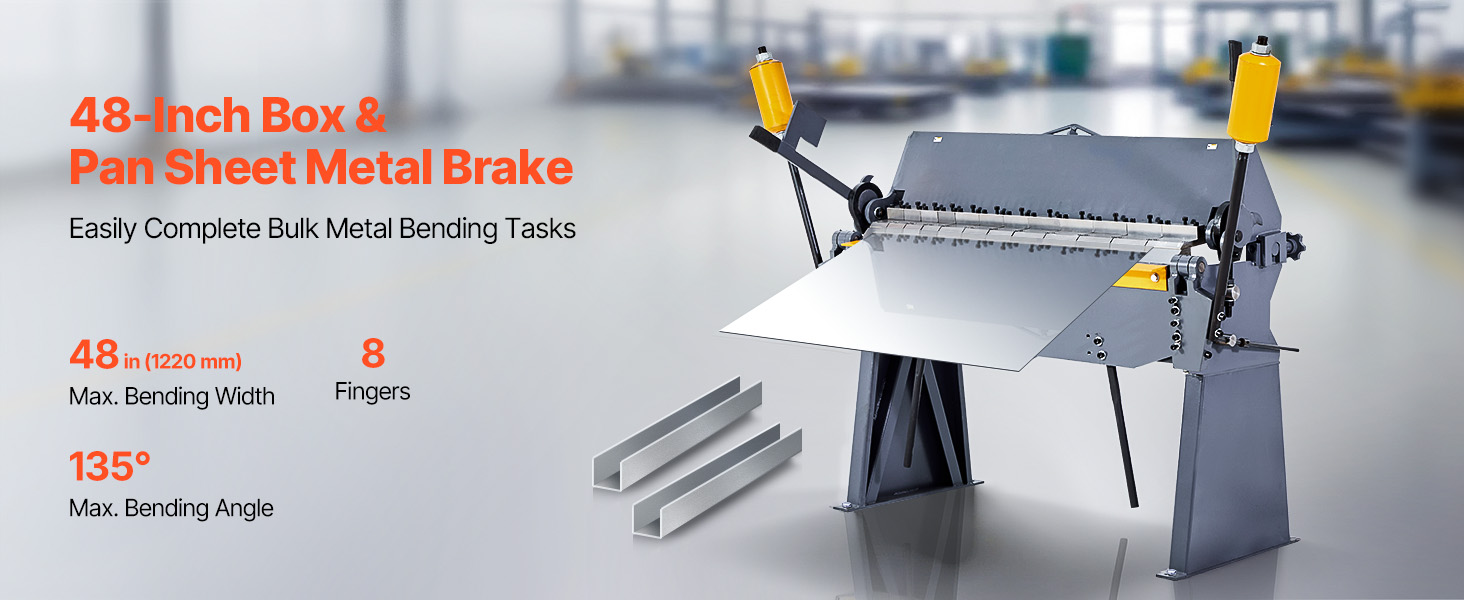

Sheet Metal Brake for Rapid Batch Bending
Bend metal like a pro with this 48-inch sheet metal brake. Ideal for workshops, the box and pan brake handles 12 gauge steel, supports multiple materials, and features modular fingers for complex bends—easy to use, stable, and built for precision bending.
The box and pan brake handles mild steel, stainless steel, aluminum, and copper with ease. Bends 12 gauge (2.5 mm) mild steel in a single pass—no need to swap between machines for different jobs.

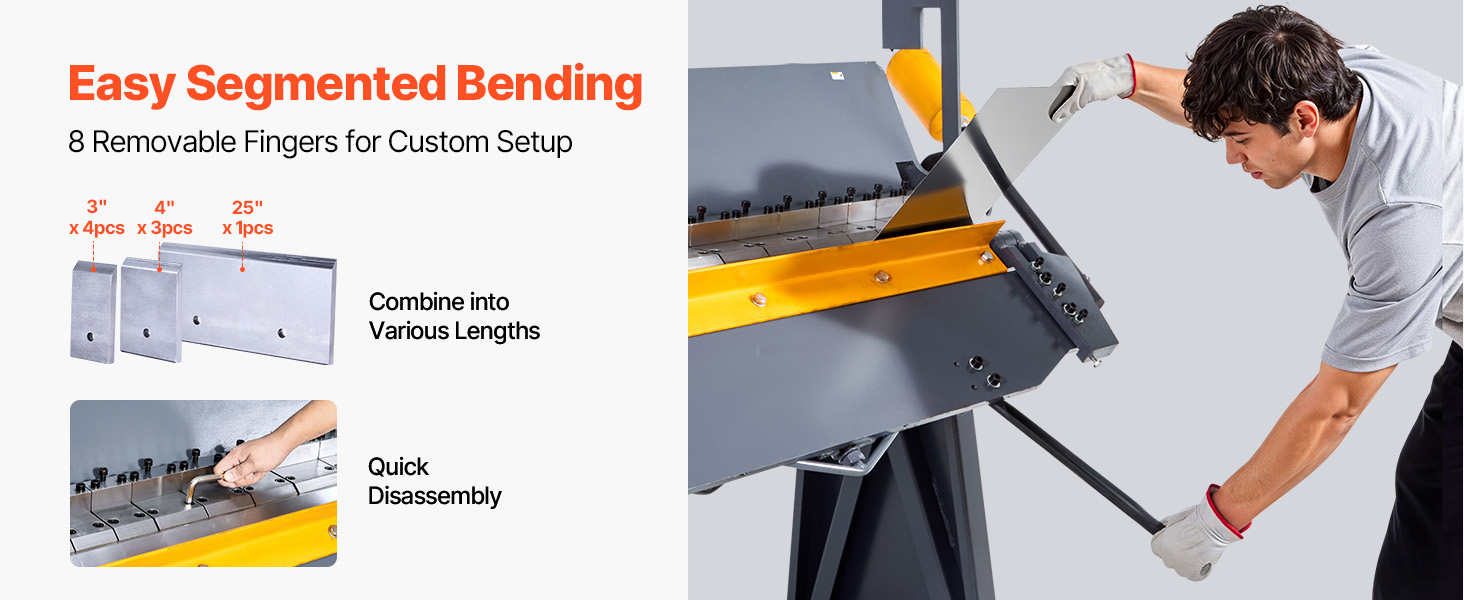

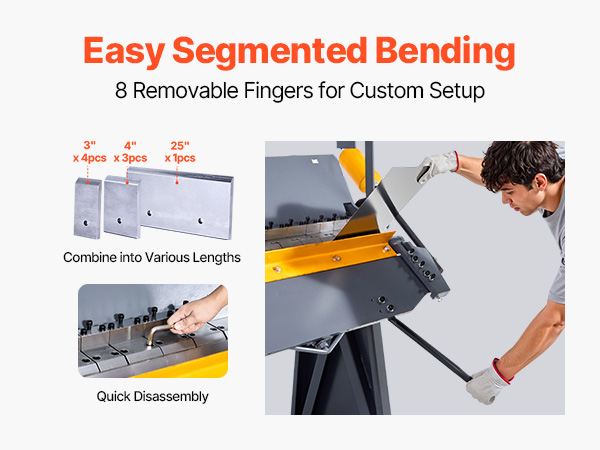

The sheet metal bender includes 8 removable fingers in multiple sizes that can be freely arranged to avoid obstructions on the workpiece. Ideal for forming floor reinforcement channels, corrugated truck beds, bed headers, and inner fenders.

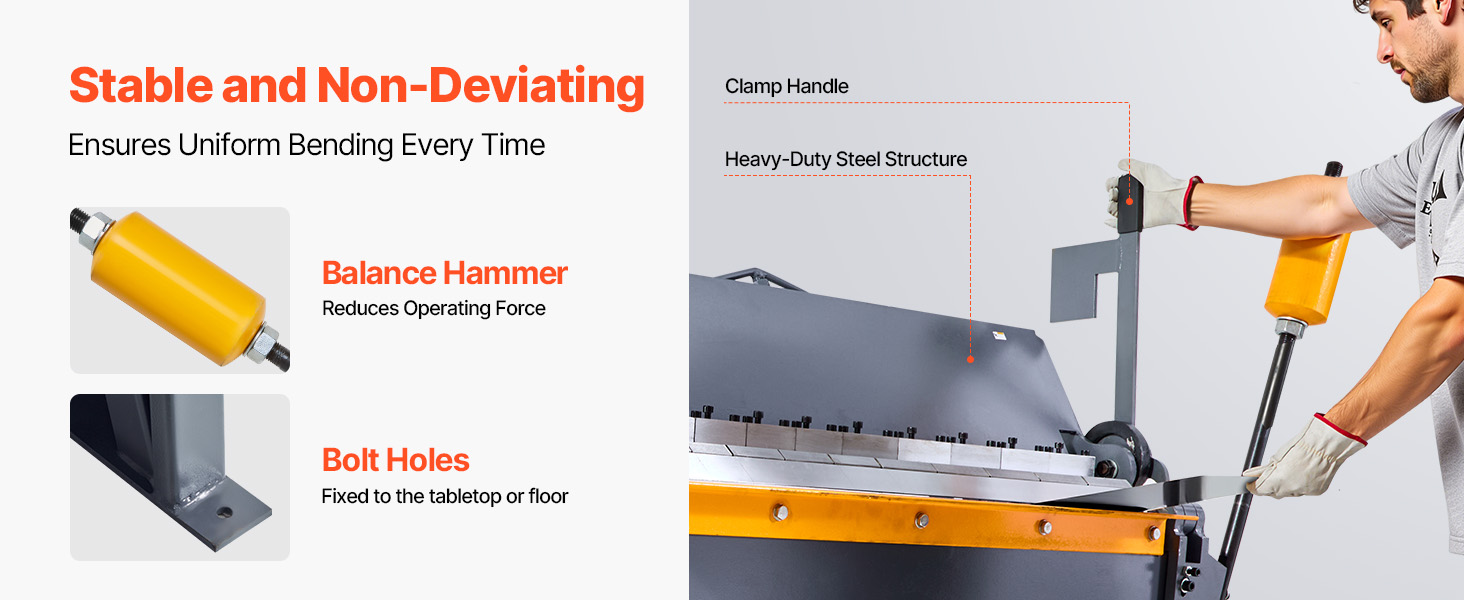

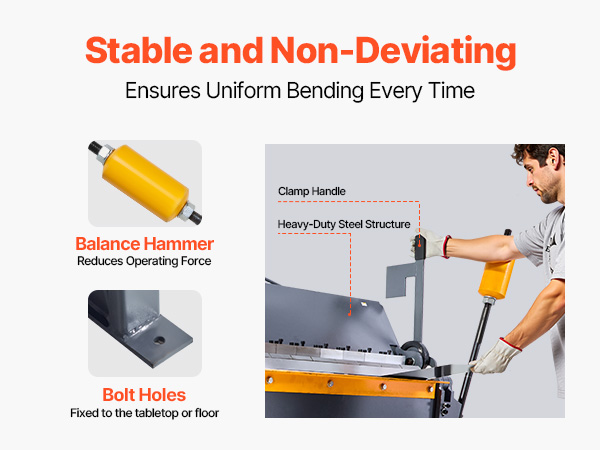

Enhanced with a balancing weight to offset the force during clamping, minimizing deformation—an upgrade over standard brakes. Bolt it down to your workbench to ensure steady, accurate bends.
Always wear goggles, non-slip gloves, and safety shoes before operating the metal bending brake. Stand to the side during bending to avoid injury from springback. For larger sheets, team up with a partner for secure handling.
Note: Great Oak specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
