Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details

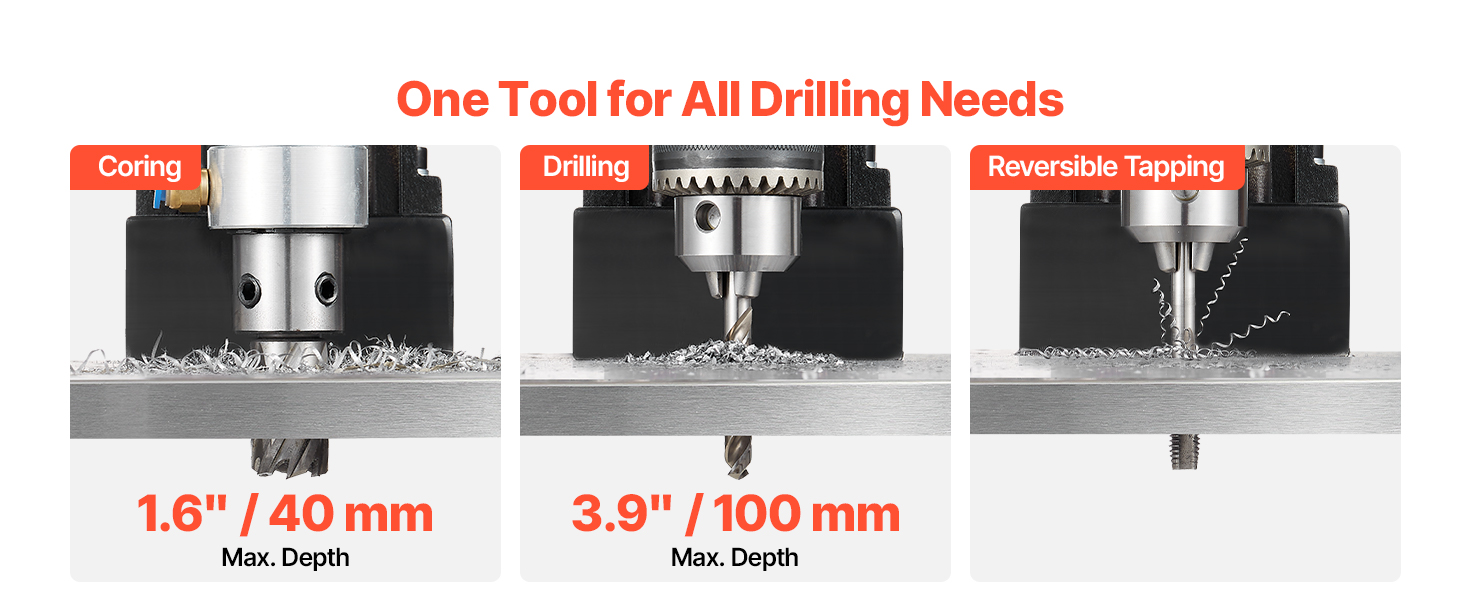

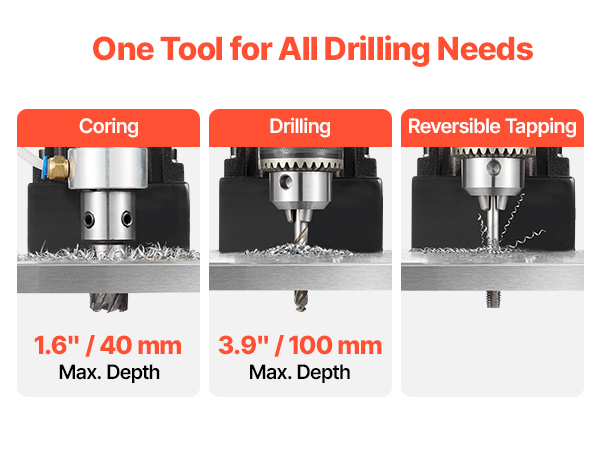

- 3-in-1 Powerful Function: This magnetic drill press supports coring, tapping, and drilling. With an upgraded 2.4"/60 mm coring diameter, it easily handles large-scale projects. Twist drilling range: Φ0.1"-Φ0.6"/Φ3-Φ16 mm, tapping range: M3-M16
- Strong Magnetic Force: The mag drill press features a thick, high-purity iron base delivering up to 2922 lbf / 13000 N magnetic force. It remains firmly secured on vertical or sloped metal surfaces, ensuring stable and secure drilling.

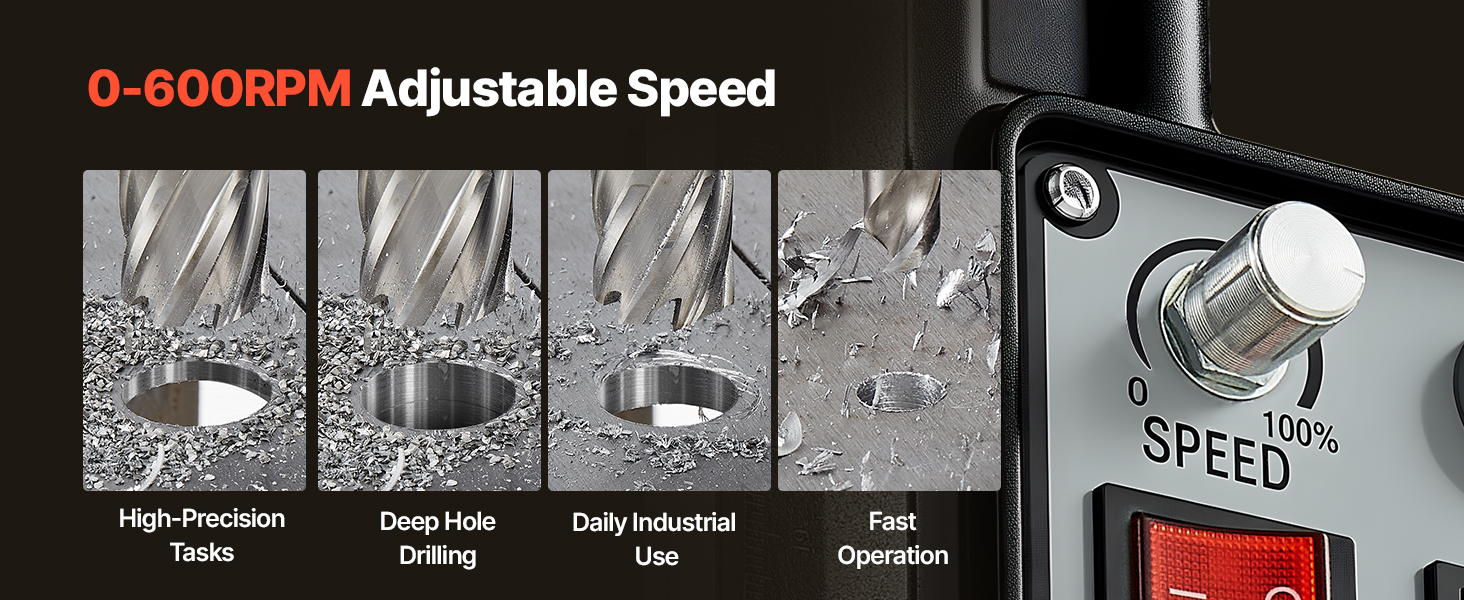

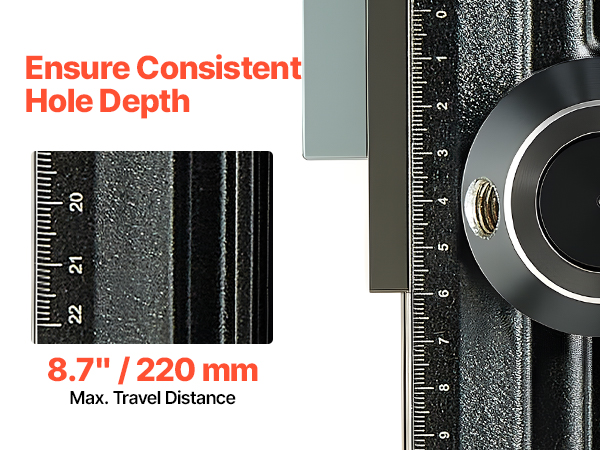

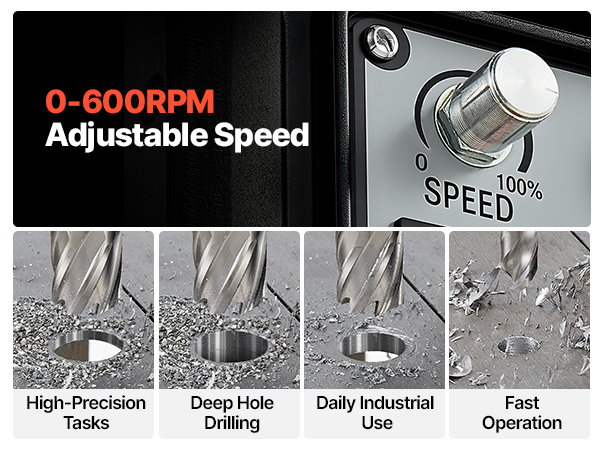

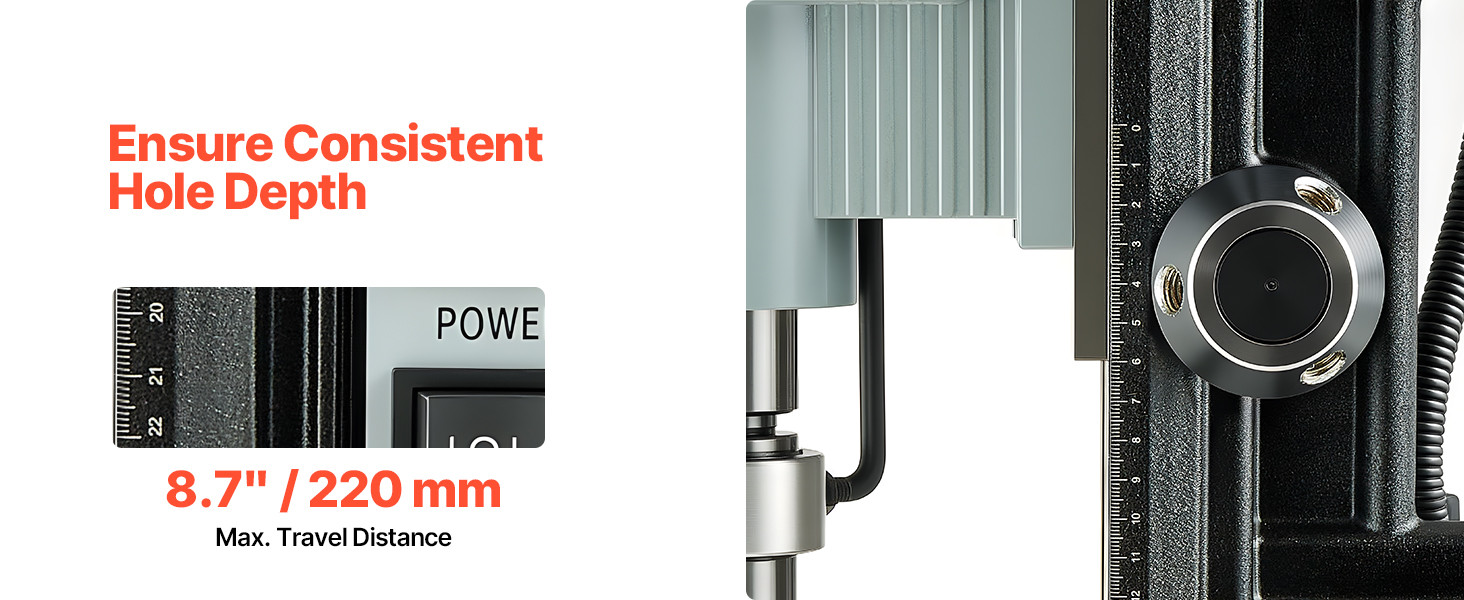

- Precise Control: This magnetic drill features 0-600 RPM speed settings for flexible adjustment based on material and task. Low speeds allow fine work; high speeds enable fast drilling. The built-in depth scales ensure consistent, accurate results.

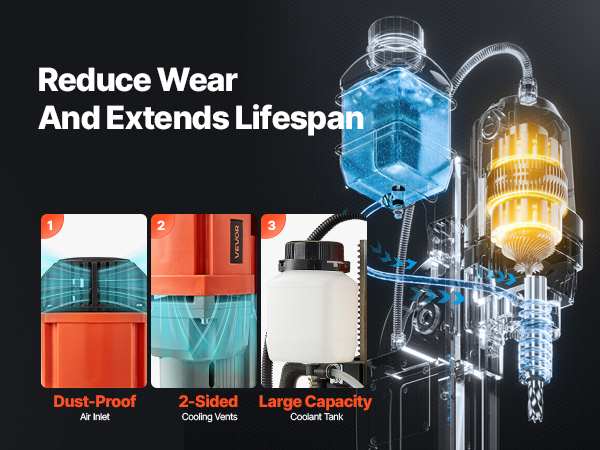

- Reliable Details: Durable metal body, high-precision spindle, efficient cooling system, and overload shut-off ensure accuracy, security, and stability during long-term use. Our magnet drill press gives you confidence during heavy use.

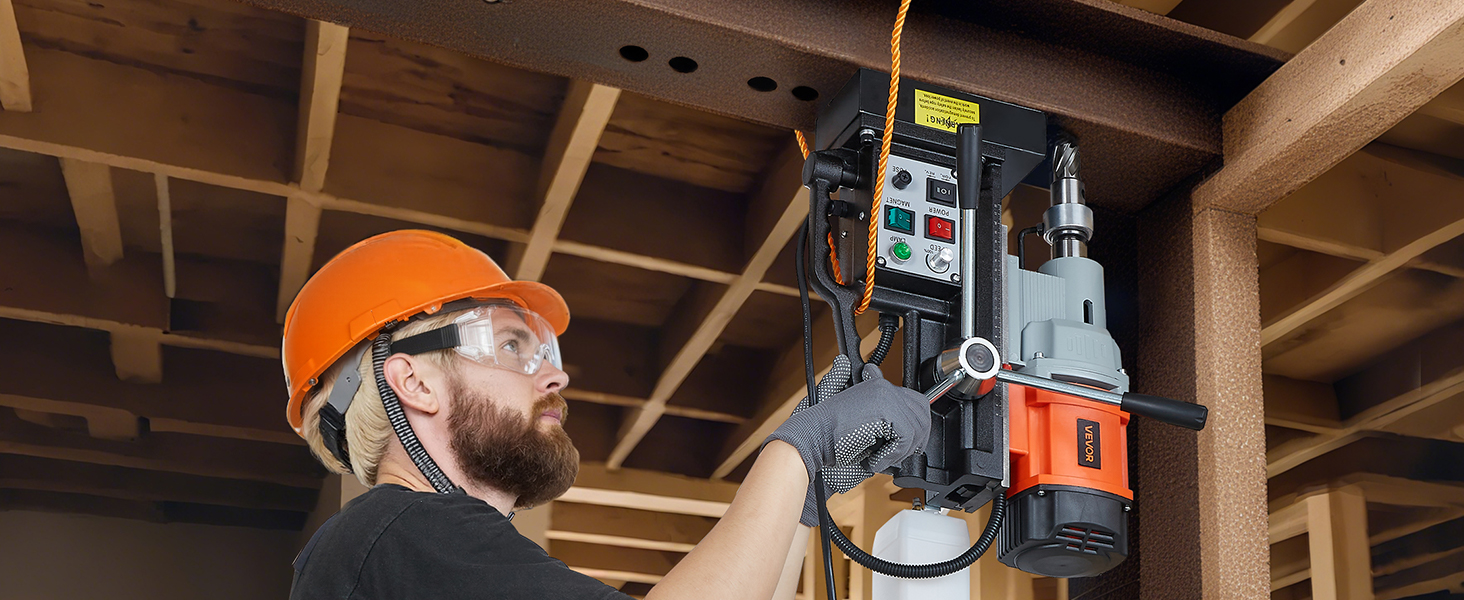

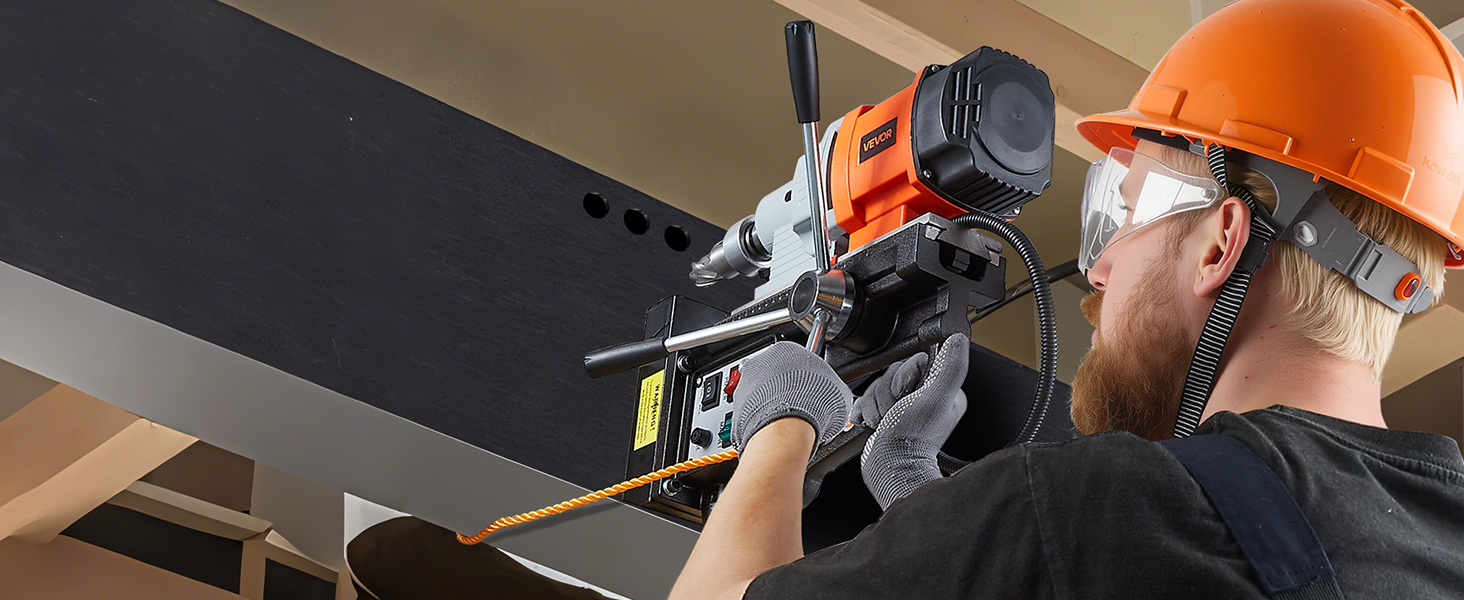

- Efficient: Driven by a 1550W motor, this magnet drill machine delivers powerful performance for home renovation, equipment setup, steelwork, shipbuilding, bridge and rail projects, wind energy, power plants, and more—ready for any job, anywhere

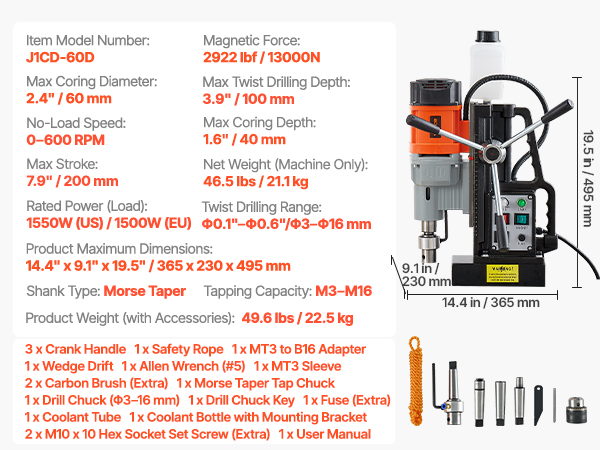

Technical Specifications
| Item Model Number | J1CD-60D |
|---|---|
| Shank Type | Morse Taper |
| Rated Power (Load) | 1550W (US) / 1500W (EU) |
| Magnetic Force | 2922 lbf / 13000N |
| No-Load Speed | 0–600 RPM |
| Max Coring Diameter | 2.4″ / 60 mm |
| Max Coring Depth | 1.6″ / 40 mm |
| Twist Drilling Range | Φ0.1″–Φ0.6″ / Φ3–Φ16 mm |
| Max Twist Drilling Depth | 3.9″ / 100 mm |
| Tapping Capacity | M3–M16 |
| Max Stroke | 7.9″ / 200 mm |
| Net Weight (Machine Only) | 46.5 lbs / 21.1 kg |
| Product Weight (with Accessories) | 49.6 lbs / 22.5 kg |
| Product Dimensions (L x W x H) | 14.4″ x 9.1″ x 19.5″ / 365 x 230 x 495 mm |
Detailed Overview
Strong Power, Steady Drilling
This 1550W magnetic drill ensures fast and stable drilling on various types of steel. The 2922 lbf magnetic force keeps it firmly attached for accurate, non-shifting performance. It features adjustable speed. Engineered for efficiency and convenience, this tool makes drilling easy and professional.
Key Features
Metal Body
The metal construction of the magnetic drill press ensures stability and durability under heavy-duty use. It withstands harsh working environments and delivers a long-lasting, reliable drilling experience.

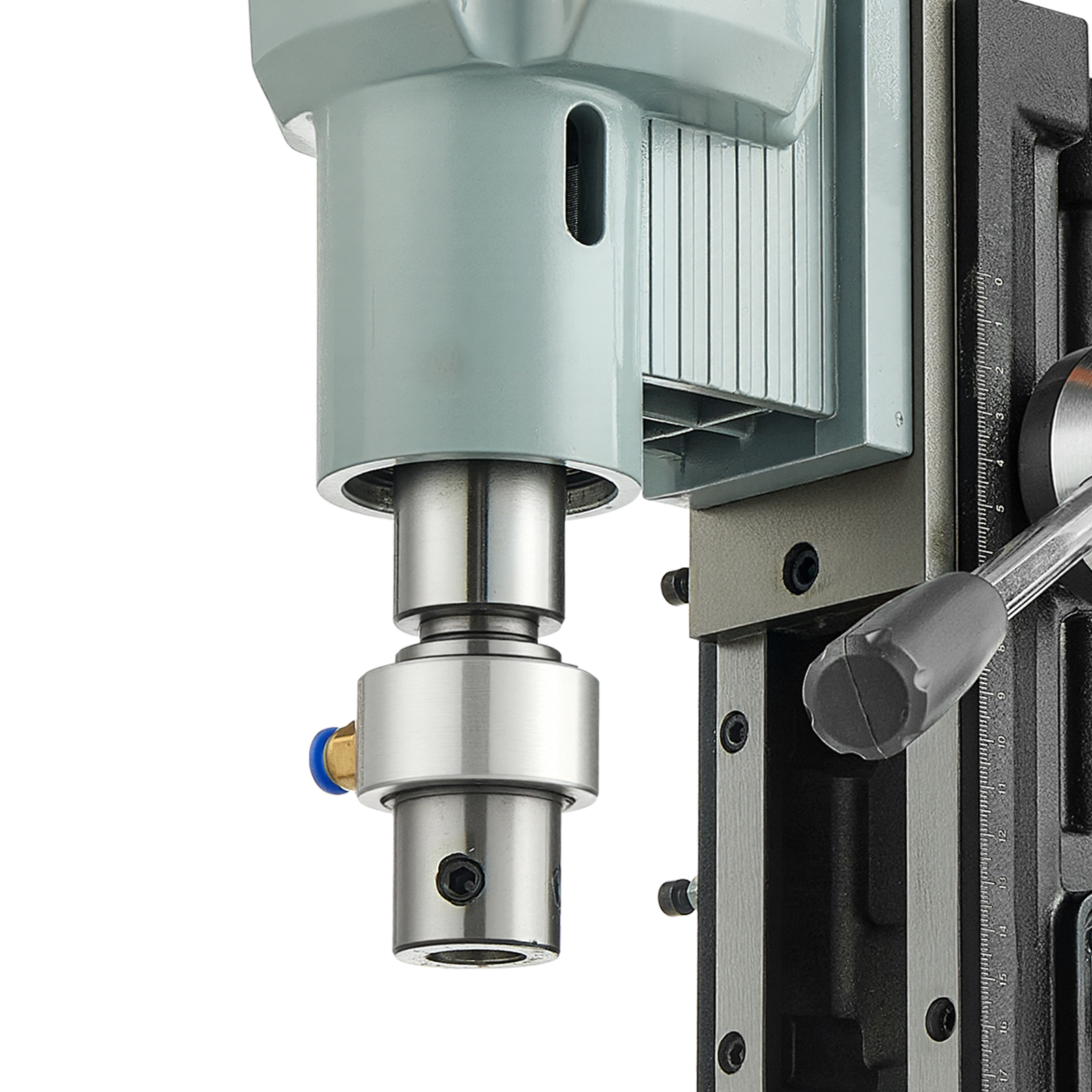

High-Precision Spindle
The high-precision spindle ensures accurate control of hole diameter and depth, ensuring drilling quality to meet the demands of professional and precision work.
Overload Protection
During heavy-duty or high-resistance operations, the mag drill press automatically reduces power or pauses to extend its service life and ensure secure operation.
Note: Great Oak specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
Had to drill hundreds of holes.
worked great
Verified Customer –
I have been building and fabricating for 30 years.
This works great!
I love Vevor products.
Verified Customer –
I should have purchased this drill a long time ago, it took all of the work out drilling hole through thick metal!
Verified Customer –
Works perfectly. Slight runout but tolerable. Magnetic grip is exceptionally strong. Smooth action. Building a platform with steel bottom to use with any material.
Verified Customer –
I was originally skeptical about purchasing this drill as I was unsure of the quality based on the price compared to other mag drills but after reading the reviews I decided to give it a try and have so far been impressed with the performance of this drill. I have been using it to drill holes in truck frames I’ve been working on and it’s functioning perfectly. The drill came packaged extremely well for shipping but did have minor damage to the coolant fluid tank that didn’t interfere with the function. A couple of suggestions I have for use is to be sure to use an adequate safety strap on the drill when using, I have been using a 1” ratchet strap for extra protection, also be aware that the on/off switches for drill power and magnetic power are located in close proximity to each other and are very easy to confuse and potentially hit the wrong one. I would recommend this mag drill.
Verified Customer –
Great Mag Drill. It will drift down but just hold it up. Didn’t use the oil tank yet. Using cooling paste. Only drilled 12 holes so far.
Verified Customer –
Great tool! Works fantastic, I wish I would have bought this years ago!
Verified Customer –
good product for reasonable price
Verified Customer –
For the money it pretty good compare to more expensive brands. Cannot hold its self vertically, but if you are wanting to drill some holes horizontally its great. Motor is definitely lower quality but i have drill several holes in 1/4” this metal with easy
Verified Customer –
Great Drill plenty of power keeps right up with the name brands at less than a 1/4 of the price!! Always impressed with the Quality of there Tools!!!
