Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Efficient Storage Solution: With 12 pivot brackets, this wall mount blueprint storage rack holds up to 240 lbs or 1200 sheets of documents. It offers ample organized storage for blueprints, construction plans, and various documents, maximizing efficiency with easy access.
- Adjustable Width Design: Our blueprint rack features pivot brackets that swing left and right for ease of use. It can hold up to 12 hanging clamps (not included), suitable for hanging 24", 30", 36", or 42" document clamps.
- Premium Metal Construction: Our hanging blueprint holder is build from solid steel with a rust-proof powder coating for durability. The 6mm wire diameter enhances loading capacity, while smooth polished edges prevent hand injuries and document damage. Ensure safe and convenient storage!
- Easy Assembly: We provide installation instructions and all necessary hardware, requiring no additional tools or complex steps. You can easily assemble and mount it to a wall or sturdy surface within half an hour.
- Versatile Applications: This poster display rack is perfect for architects, engineers, contractors, and designers for storing blueprints, architectural paper, engineering documents, maps, wrapping paper, and more. This reliable storage solution is essential for offices, schools, and various environments.

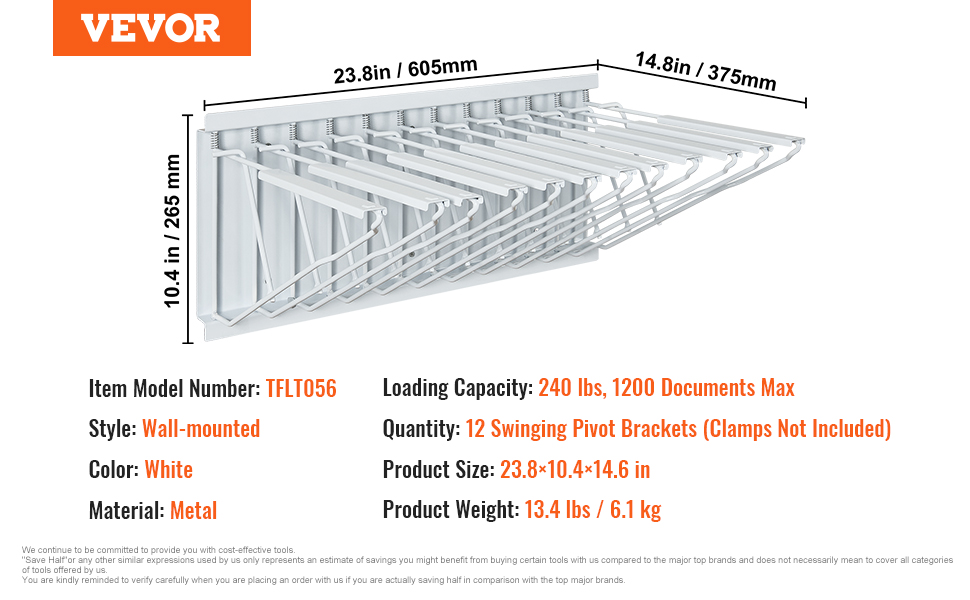

Technical Specifications
| Item Model Number | TFLT056 |
|---|---|
| Style | Wall-mounted |
| Color | White |
| Material | Metal |
| Loading Capacity | 240 lbs, 1200 Documents Max |
| Quantity | 12 Swinging Pivot Brackets (Clamps Not Included) |
| Product Size | 23.8×10.4×14.6 in/605×265×370 mm |
| Product Weight | 15.3 lbs/6.95 kg |
Detailed Overview

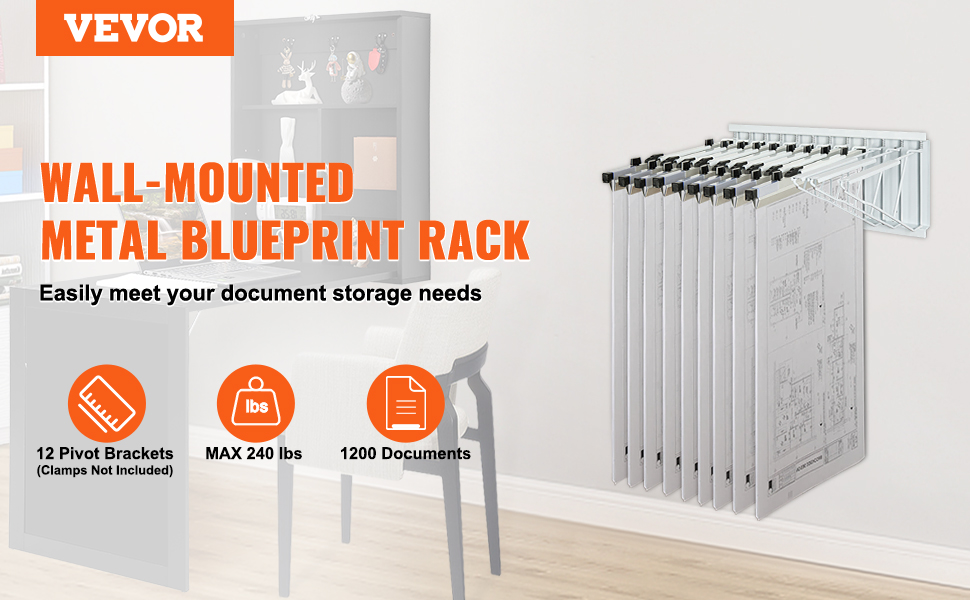

Wall Mount Blueprint Storage Rack-Organize Your Blueprints Neatly!
This wall mount blueprint holder features 12 pivot brackets, holding up to 240 lbs or a maximum of 1200 sheets! It offers organized storage for blueprints and various documents. Easily locate needed files!

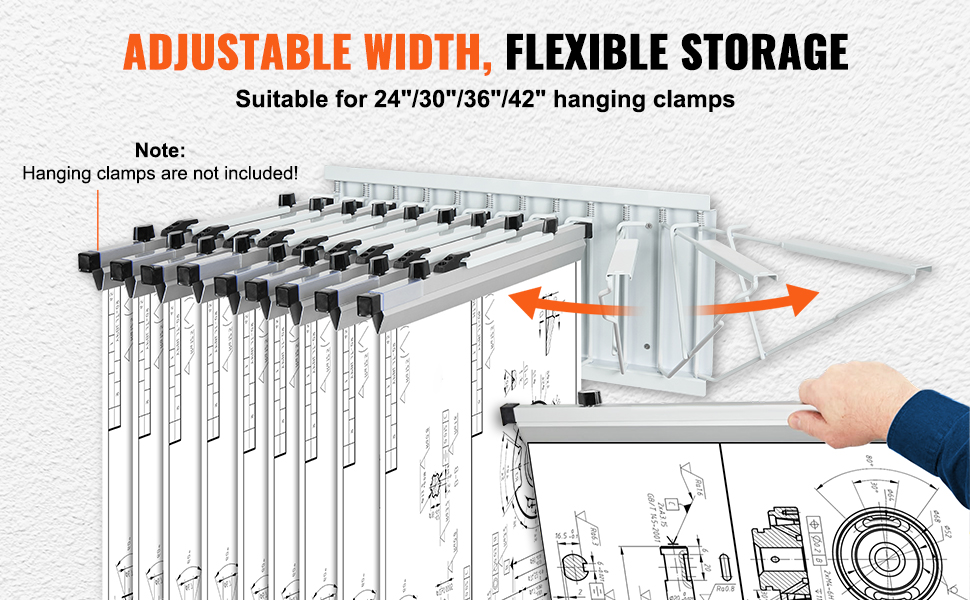

The pivot brackets of wall mount blueprint swing left and right and can accommodate up to 12 hanging clips (not included) for easier storage and access.
Constructed from solid steel with a rust-proof powder coating, our blueprint storage organizer ensures long-lasting durability. The 6mm wire diameter enhances loading capacity for sturdy reliability. The 12 pivot brackets make it easy to locate the necessary blueprints.

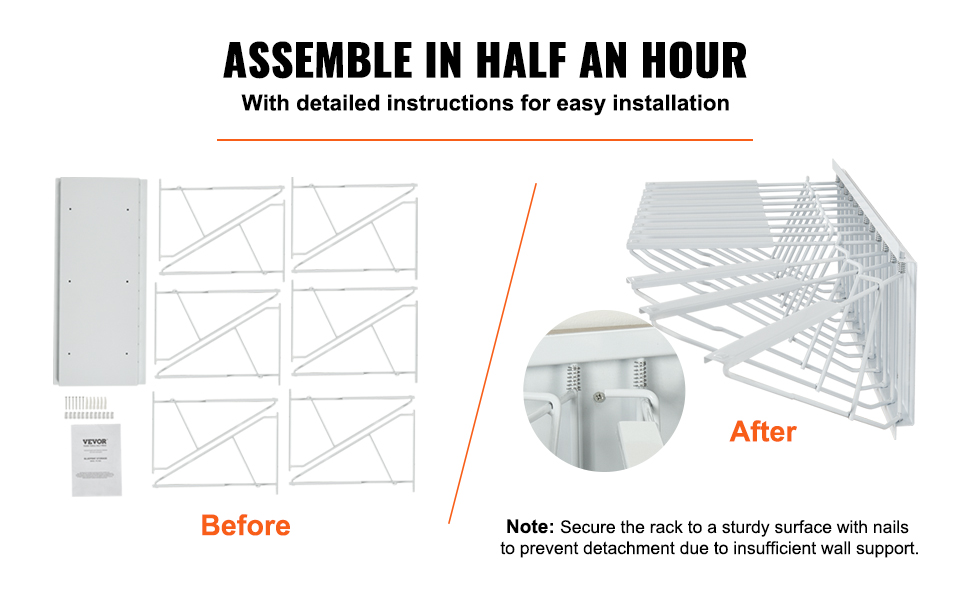

Assembly takes just 30 minutes with no additional tools or complicated steps required.
This plan holder is ideal for architects, engineers, contractors, and designers, this efficient storage solution is essential for offices, schools, and other environments.
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
As a genealogist, I collect maps & needed something for storage other than the tubes normally used. I found this blueprint storage rack works great.
Verified Customer –
Expensive but worth it. Very handsome it’s sturdyy but not overly heavy. Very nice aluminum finish.Beware, the clamps for the plans must be purchased separately.
Verified Customer –
My boss had tons of blueprints laying all over the office, now they are organized and stored upright. Next I’m going to get tags for them so he can find them at a glance instead of pulling them out of the cart to see which one is which.
Verified Customer –
Everyone that comes into my office tells me how lovely it is. I did take the top of the rack off and modify it to hang on the wall above my plans desk. Did some modification to the remaining two sections to be able to secure it with the back brace as originally intended but it is g
Verified Customer –
Easy to assemble and seems sturdy. it keeps my rolled documents neat and ordered. It is as described. I can recommend this product.
Verified Customer –
This is my 3rd one of these. They are great for vertical storage of 3″ core vinyl rolls. The 10yd size fits 2 rolls on each level perfectly. My shop had rolls strewn everywhere. Now I no longer am tripping all over them. Opened up my shop.
Verified Customer –
This item was a bit smaller than I anticipated but it does hold my rolls of prints and vinyl. 60″ rolls tip over, and make it hard to roll around, but it gets the job done.
Verified Customer –
fits plans perfectly easy set up
Verified Customer –
Compared to other available racks, this is an affordable option. The rack is adjustable in height and length to accommodate 24″x36″ plan sets, or larger. The rack does not come with the clamps, however, the “Estune Blueprint Hanging Clamps” worked perfectly with this rack. The wheels on the bottom of the rack make it easy to move around the office if necessary without removing all the plans. The arms holding the plans pivot, making it easy to locate the plans your looking for.
Verified Customer –
I would have given 5 stars but it was missing one screw, which I can find another to fit in the spot (they gave me an extra nut though) and all 4 wheels are supposed to be threaded like a screw to thread into their holes … But one of them was completely smooth so I couldn’t thread it in, it just slipped out. I used hot glue to get it to stay because I don’t want to take it all apart to return it… It should work right? Lol Quality otherwise.
