Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Sturdy and Durable: This PTO shaft is a well-forged Series 4 driveline shaft with CE certification. It consists of a solid 20CrMnTi carburized steel universal joint and a Q345 steel tube inside the shield. The PTO shaft is durable and robust when working with various agricultural machinery.
- 6 Spline ＆ Round Ends: Constructed with a 6-spline tractor end and a round implement end, this brush hog PTO shaft has a standard size of 1-3/8 inches. It is designed to match perfectly with compatible tractors and implements of the same size and type, delivering exceptional driving force to your machinery.
- Adjustable Length: Compressed Length: 43" / 1100 mm; Extended Overall Length: 61" / 1550 mm. The tiller PTO shaft is designed with a telescoping steel tube, a universal joint, and yokes. It delivers 35 Hp (26 Kw) and 460 Nm torque at 540 rpm, and 53 Hp (39 Kw) and 360 Nm torque at 1000 rpm. It enables differential speed operation between the two sides of the PTO drive line shaft.
- Easy Assembly & Safer Use: As a high-efficiency power transmission tool, our PTO extender shaft can be easily assembled for effortless direct replacement. The security chain and sturdy shield eliminate potential dangers during the transmission process.
- Wide Application: The PTO (Power Take-Off) shaft transfers power from the tractor to the PTO-powered attachment. It is widely used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, fertilizer spreaders, and more. Control the speed and power of your machine effectively. Powerful torque conversion and reliability will leave you wishing you got our PTO shaft sooner.
Technical Specifications
| Model | T4-BⅢP*1100mm*4.05.05B*4.05.A35 |
|---|---|
| Part Type | PTO Drive Shaft |
| Series | 4 |
| Certificate | CE Certification |
| Material | 20CrMnTi Carburized Steel + Q345 Steel + Plastic |
| Tractor End | 1-3/8″ x 6 Spline |
| Implement End | 1-3/8″ x Round End |
| Compressed Length | 43″ / 1100mm |
| Extended Overall Length | 61″ / 1550mm |
| At 540RPM | 35hp, 26Kw, 460Nm |
| At 1000RPM | 53hp, 39Kw, 360Nm |
| Color | Black |
Detailed Overview
PTO Drive Shaft for Tractors
43″-61″ ＆ 1-3/8″ Ends ＆ Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
- Sturdy and Durable
- 6 Spline ＆ Round Ends
- Adjustable Length
- Easy Assembly＆Safer Use
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.

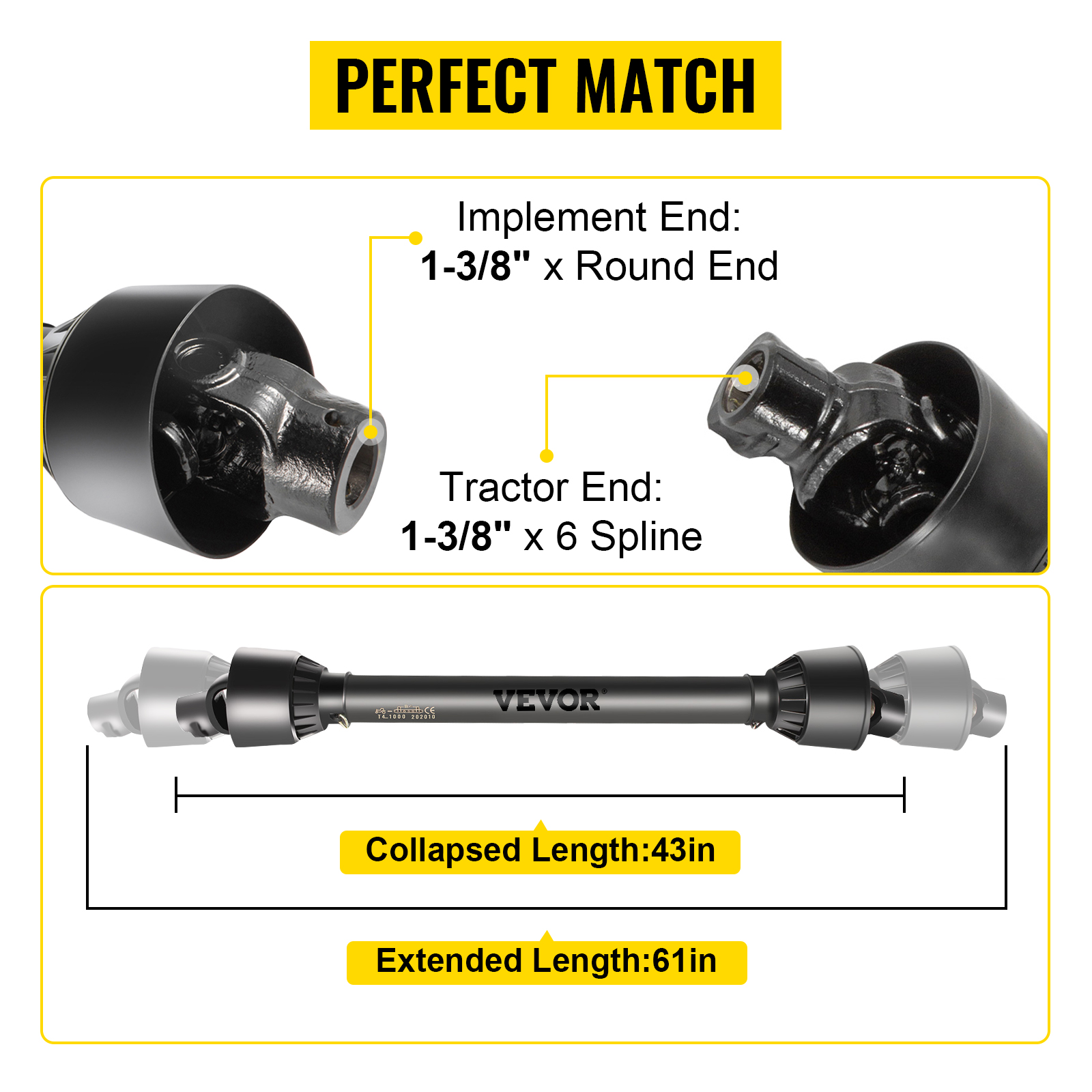

1-3/8″ Standard Size
With 43″-61″ extendable length and featuring 1-3/8″ 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.

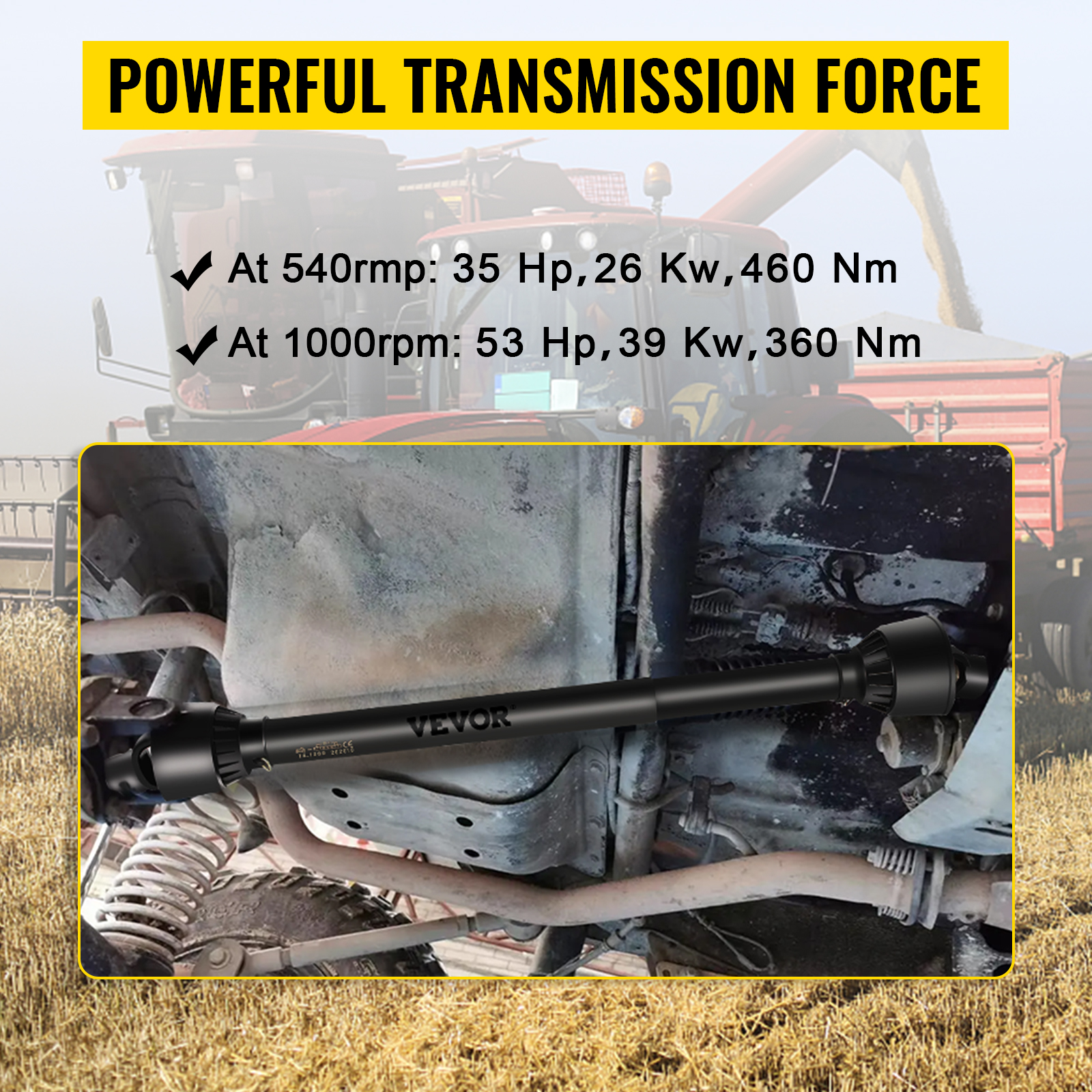

Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.

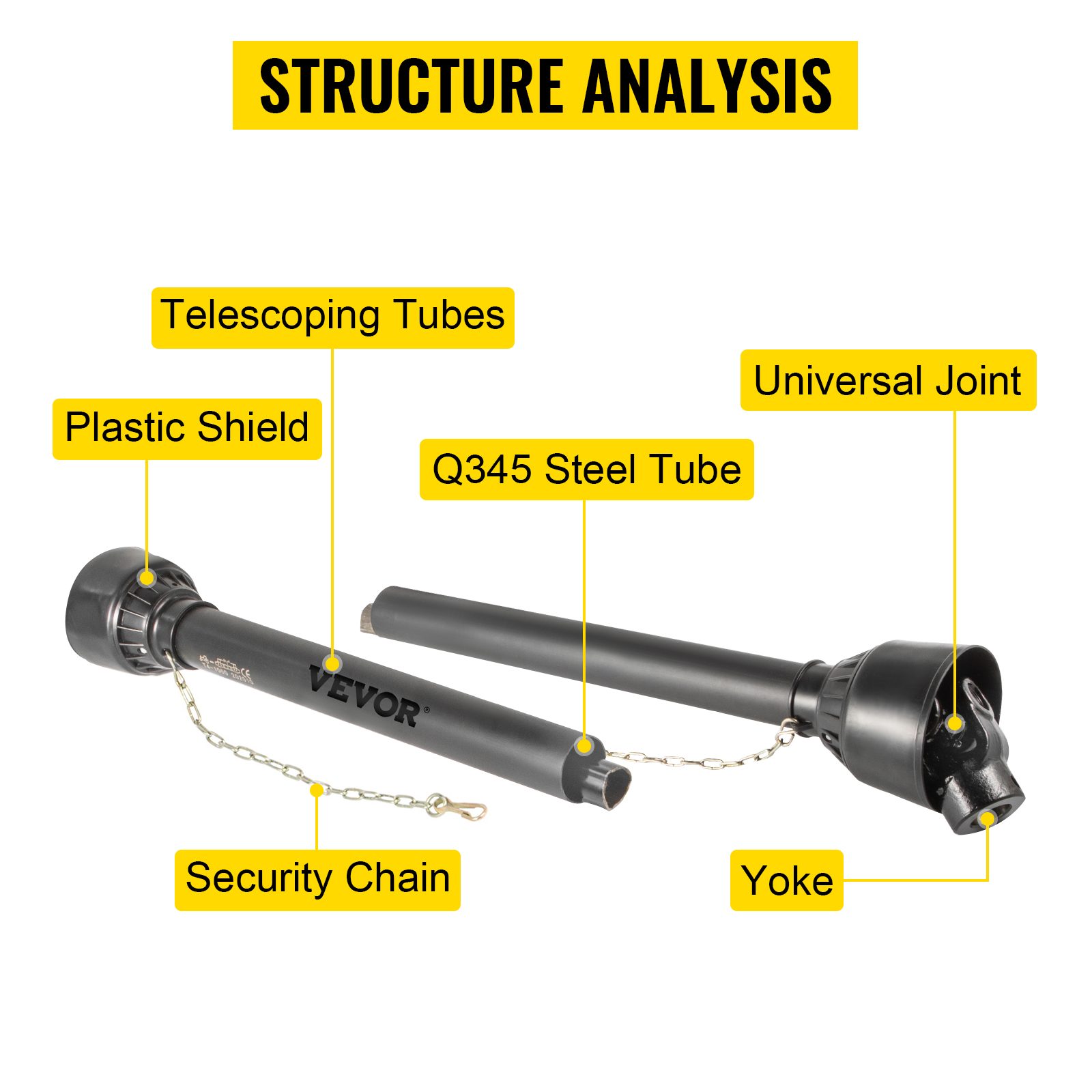

Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.

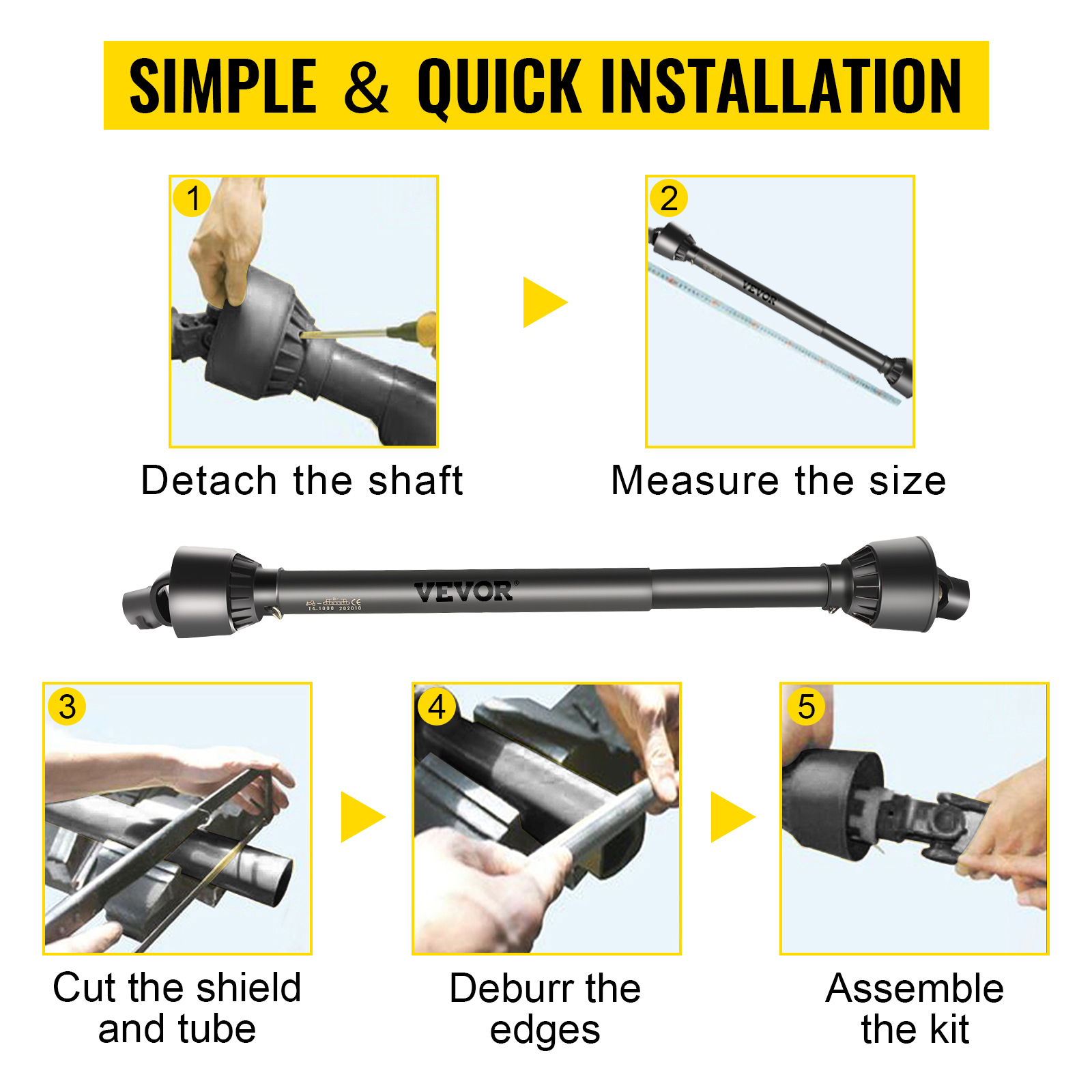

Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.

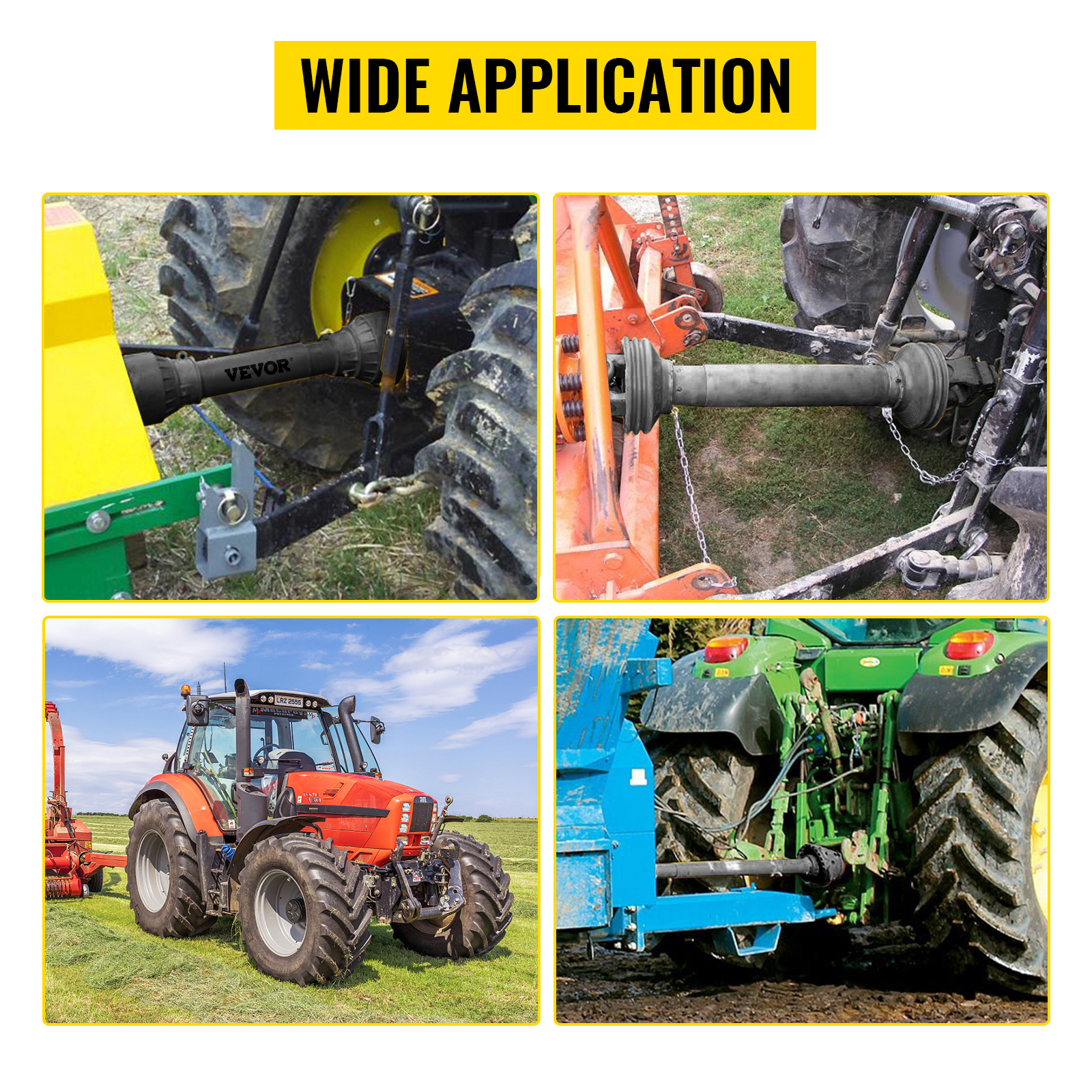

Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
Specifications
- Model: T4-BⅢP*1100mm*4.05.05B*4.05.A35
- Part Type: PTO Drive Shaft
- Series: 4
- Certificate: CE Certification
- Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
- Tractor End: 1-3/8″ x 6 Spline
- Implement End: 1-3/8″ x Round End
- Compressed Length: 43″ / 1100mm
- Extended Overall Length: 61″ / 1550mm
- At 540RPM: 35hp, 26Kw, 460Nm
- At 1000RPM: 53hp, 39Kw, 360Nm
- Color: Black
Package Content
- 1 x PTO Shaft
- 1 x User Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
PTO Drive Shaft for Tractors
43″-61″ ＆ 1-3/8″ Ends ＆ Series 4
This splined PTO shaft is built from sturdy steel and features a 6-spline tractor end and a round implement end. It stands out by its adjustable telescoping tube, strong horsepower, and simple replacement. It can serve as farm power tools to improve your work efficiency significantly. Keep rolling through work, our drive shaft will make sure the job gets done.
- Sturdy and Durable
- 6 Spline ＆ Round Ends
- Adjustable Length
- Easy Assembly＆Safer Use
Durable PTO Shaft
This T4 tiller PTO shaft is made of high-quality 20CrMnTi carburized steel and Q345 tube steel, with a black-painted surface. It is durable enough to withstand large impacts, higher torque, and high speed.
1-3/8″ Standard Size
With 43″-61″ extendable length and featuring 1-3/8″ 6-spline tractor end and round implement end, the PTO link shaft perfectly fits powered farm equipment or machinery of the same size.
Powerful Transmission Force
Our PTO shaft stands out with superior power-transfer ability. At 540 rpm it can provide 35 hp, 26 kw, and 460 nm torque; 53hp, 39kw, and 360 nm at 1000 rpm.
Structure Analysis
The PTO shaft is assembled in a compact structure, consisting of a telescoping tube, a universal joint, yokes, a plastic shield, and a chain for protection. It allows two speeds on both ends and transfers the power into the equipment.
Simple & Quick Installation
The PTO shaft for the bush hug attaches to implement ends and tractors quickly. If you want to cut it to the proper length, please read the manual carefully and remember to deburr the edges after cutting.
Wide Application
The PTO shaft, proving robust power force to the PTO powered attachment, is most commonly used on mowers, wood chippers, rotary tillers, rotary cutters, brush cutters, hush hug, tractors, etc.
Package Content
- 1 x PTO Shaft
- 1 x User Manual
Specifications
- Model: T4-BⅢP*1100mm*4.05.05B*4.05.A35
- Part Type: PTO Drive Shaft
- Series: 4
- Certificate: CE Certification
- Material: 20CrMnTi Carburized Steel + Q345 Steel + Plastic
- Tractor End: 1-3/8″ x 6 Spline
- Implement End: 1-3/8″ x Round End
- Compressed Length: 43″ / 1100mm
- Extended Overall Length: 61″ / 1550mm
- At 540RPM: 35hp, 26Kw, 460Nm
- At 1000RPM: 53hp, 39Kw, 360Nm
- Color: Black
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
