Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Superior Performance: Our portable drill press generates exceptionally strong power thanks to its 980W copper motor. It is capable of drilling into the toughest materials at 680RPM. Maximum Coring Diameter: 1.38"/35mm; Maximum Travelling Distance: 4.92"/125mm. Besides, our magnetic drill can only be used with hollow boring bits, and annular bits less than 0.3"/8 mm in diameter.
- Useful Accessory Kit: We provide you a rust-proof stainless steel cooling pot with the capacity of 21.36 Cubic Inch/350ml and a pilot pin. The pilot pin can remove screws and assist in the installation & removal of bits.
- 10,000N Magnetic Force: The powerful two-stage magnet can generate 10,000 N of holding force, ensuring the drill press machine will not move in the work. Thanks to its Electromagnet base, our magnetic drill press anchor itself securely during use through its solid iron bottom.
- Thoughtful Designs & Cooling System: This ergonomic design handle provides comfortable grip in operation and transport. These 3 extended crank handles are coated with nonslip rubber for laborsaving operation. Coolant tank, dustproof air inlet, and exhaust air holes are designed for cooling the magnetic drill press during overheating.
- Various Applications: This versatile magnetic drill press is immensely suitable for industrial and steel fabrication, ship or bridge building, railway manufacture, wind power generation, power-plant construction, home improvement, equipment installation, and a wide swath of other fields.
Technical Specifications
| Model | BRM-35 |
|---|---|
| Power | 980 watts |
| Power supply | 110V/50Hz |
| Idle speed approx | 680 rpm |
| Max. Drilling Φ (with core drill) | 12-35mm |
| Max. Drilling depth Φ (core drill) | 2″(50mm) |
| Max. Drilling Φ (with full drill) | 1.5-13 mm |
| Max. Travel distance | 125 mm |
| Magnetic holding force | 10,000 N（2250Lbs） |
| Magnetic foot dimensions ca | 160 x 80 mm |
Detailed Overview

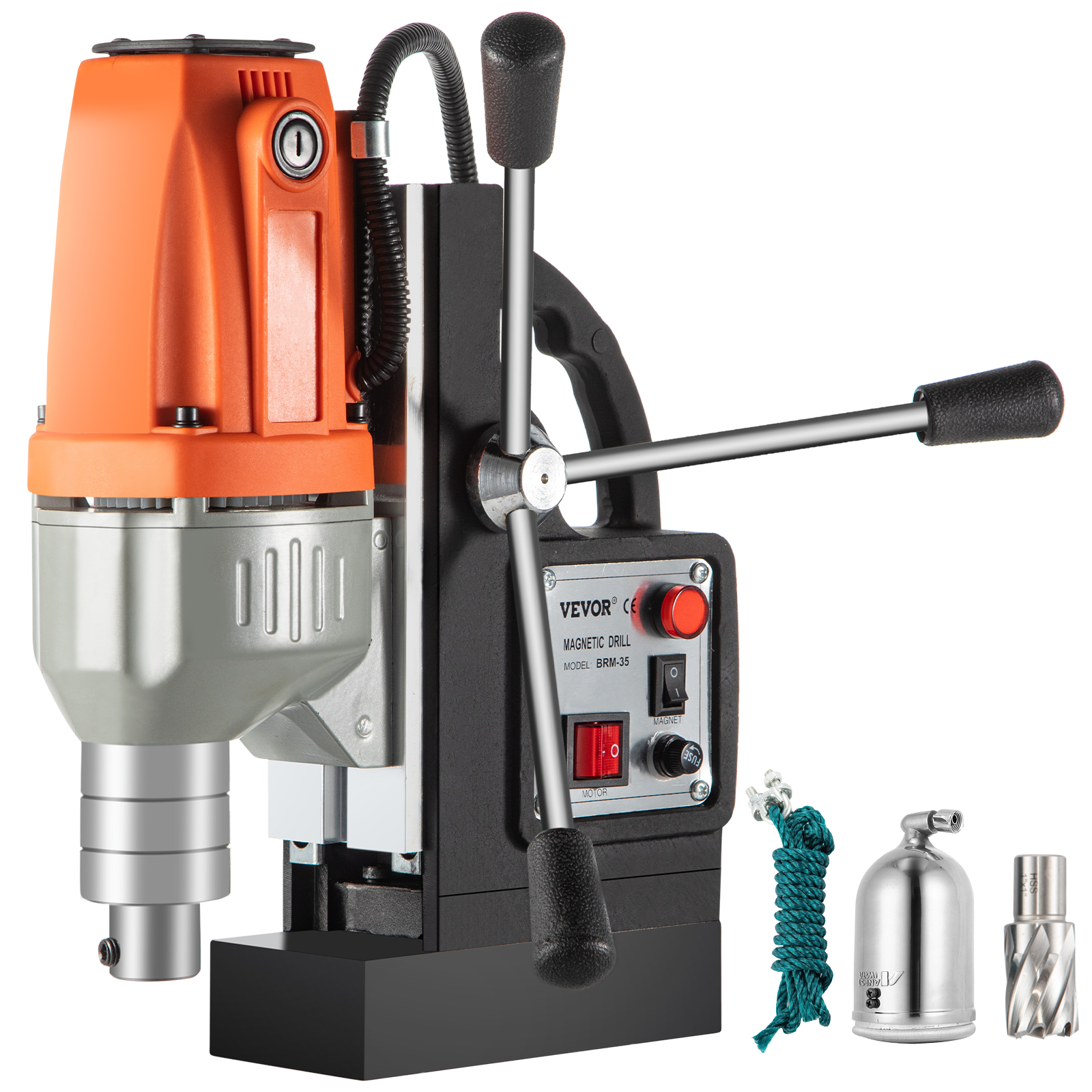

Electric Magnetic Drill Press
This class of leading drill press tools has been designed and engineered specifically for speed and precision, with solid magnetic adhesion of 10000 N, an optimized rotation speed of 680RPM. It is an essential tool for performing heavy-duty industrial and steel fabrication work.
- NOTE: Our magnetic drill can only be used with hollow boring bits, and annular bits less than 0.3″/8 mm in diameter.
- Superior Performance
- Useful Accessory Kit
- 10,000N Magnetic Force
- Thoughtful Designs & Cooling System
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

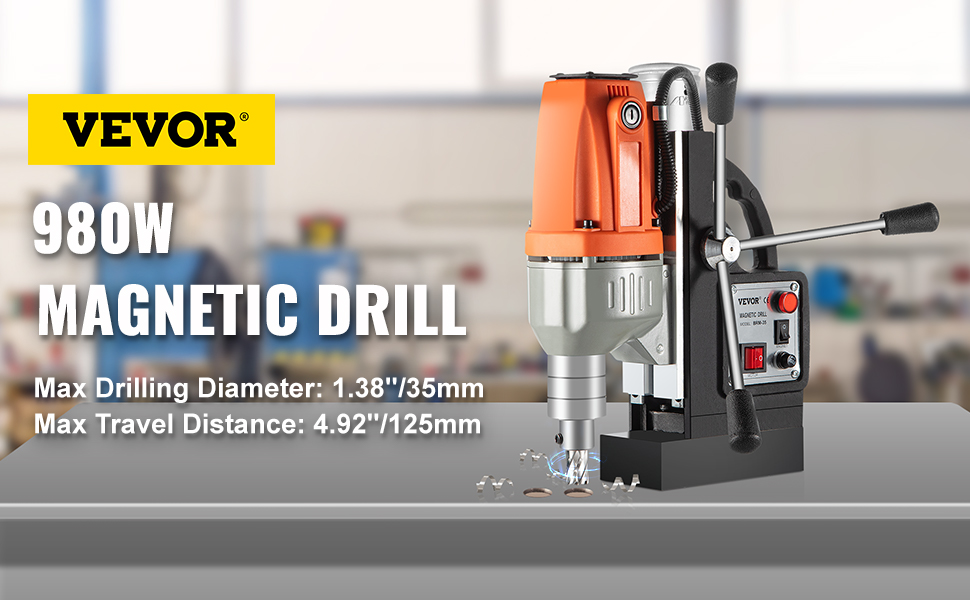

Excellent Performance
Designed for precise and demanding coring, this mag drill features 680rpm and 980 watts of motor power. Max. Coring Diameter: 1.38″/35mm; Max. Travel Distance: 4.92″/125mm. And our magnetic drill can only be used with hollow boring bits, and annular bits less than 0.3″/8 mm in diameter.

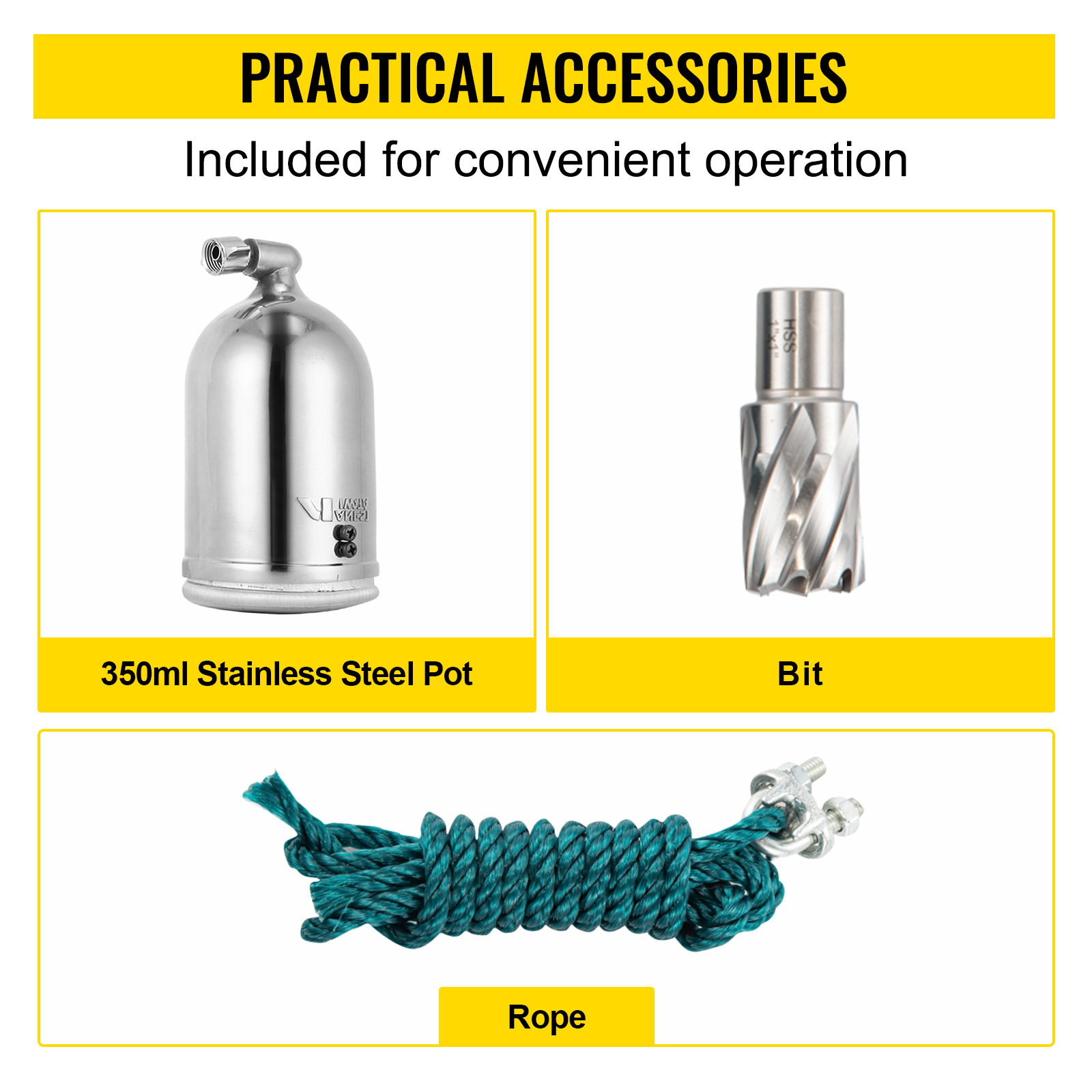

Practical Accessories
There are a stainless steel coolant pot. The cooling system avoids the risk of damage due to dust entering the machine.

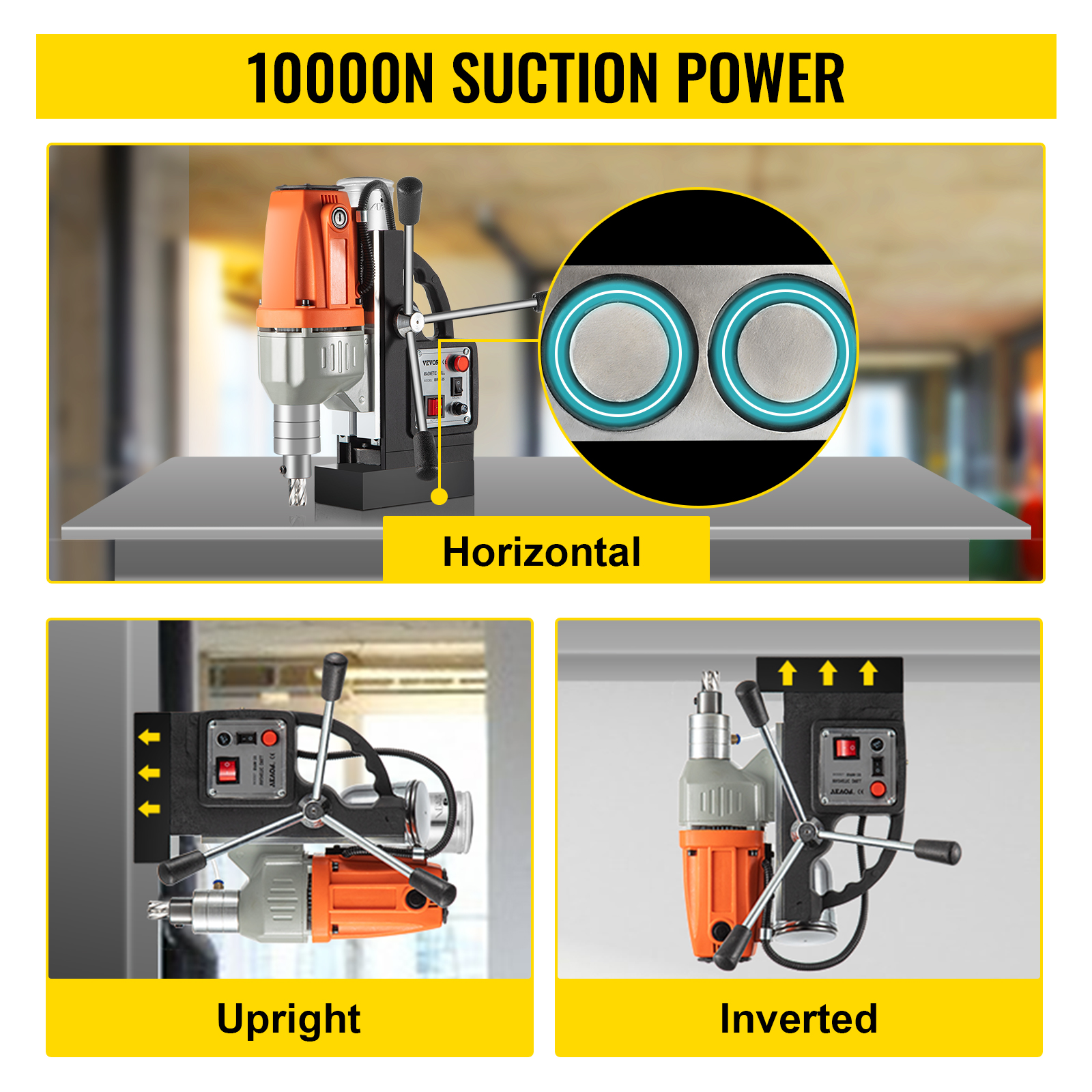

10,000 N Suction Power
The stable base acts as a powerful electromagnet to firmly fix the drill bit at a force of 2250Lbs/10000N during work, preventing movement during drilling process.

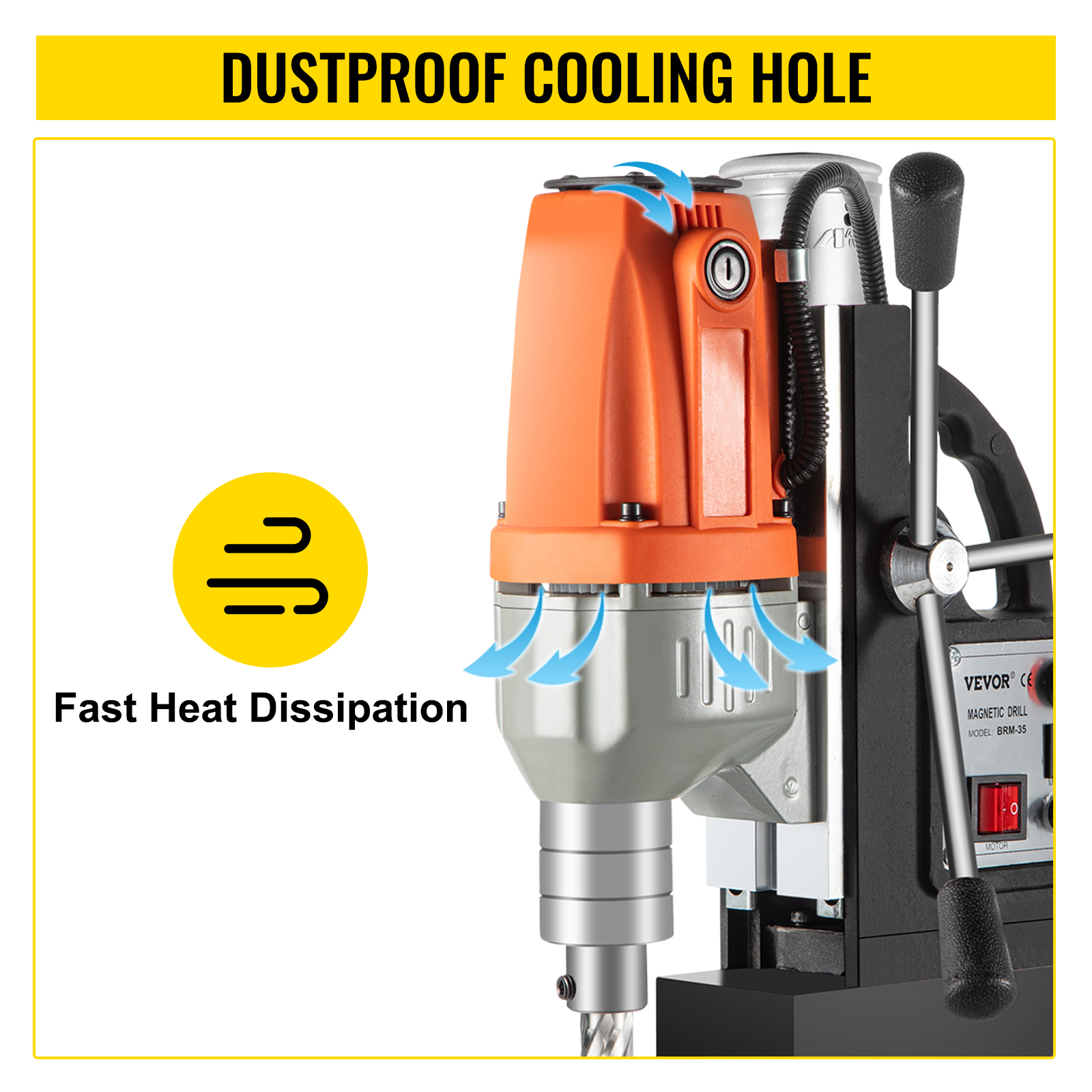

Dustproof Cooling Hole
Coolant bottle with quick push-fit tube connection included for long cutter life and smooth drilling. What’s more, dustproof air inlet and exhaust air holes for temperature reduction.

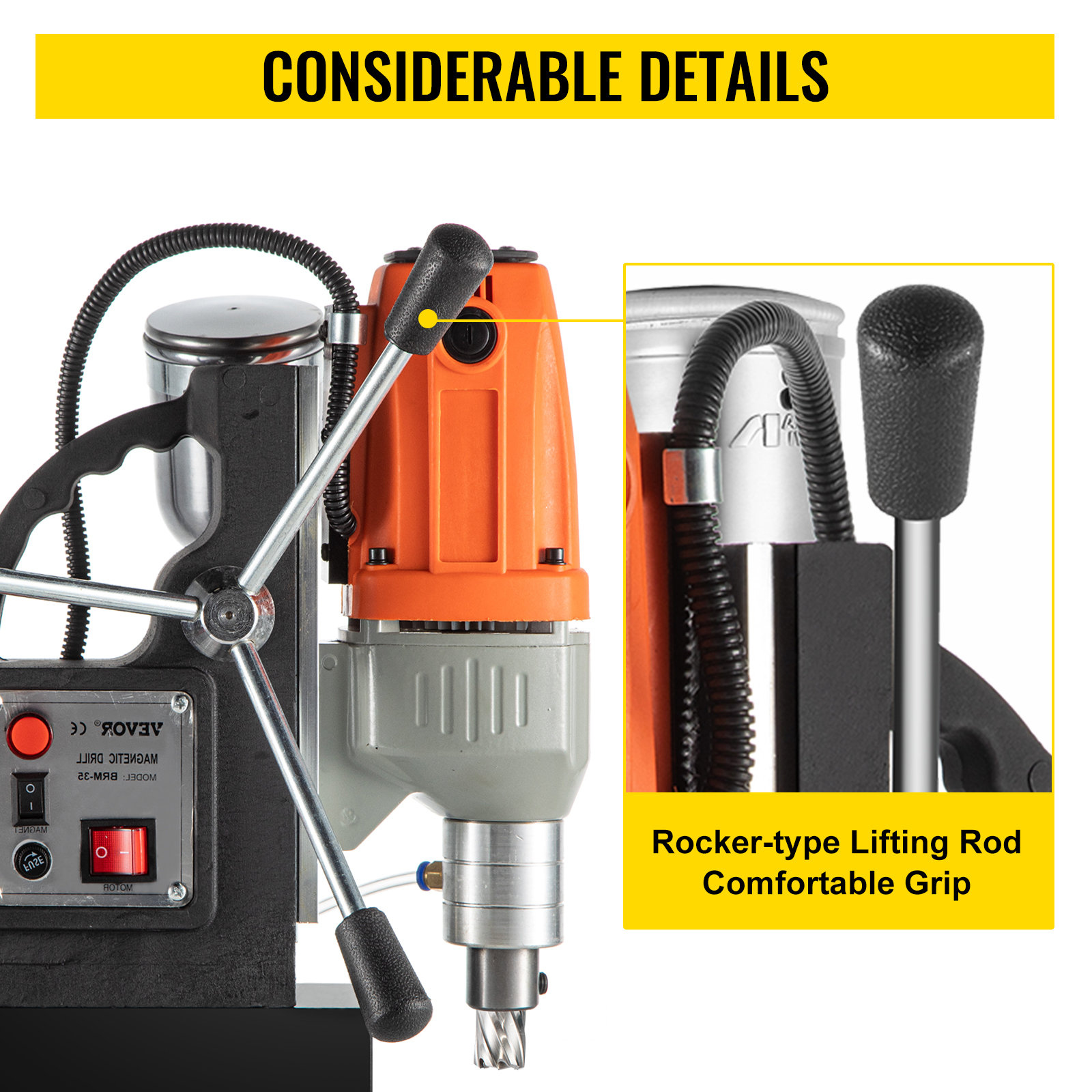

Considerable Details
The crank handles are coated with non-slip rubber, which makes the operation easy and labor-saving. The ergonomically designed handle provides a comfortable grip. A simple control panel allows easy operation.
Various Application
The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, and other engineering facilities.
Specifications
- Model: BRM-35
- Power: 980 watts
- Power supply: 110V/50Hz
- Idle speed approx : 680 rpm
- Max. Drilling Φ (with core drill): 12-35mm
- Max. Drilling depth Φ (core drill): 2″(50mm)
- Max. Drilling Φ (with full drill): 1.5-13 mm
- Max. Travel distance: 125 mm
- Magnetic holding force: 10,000 N（2250Lbs）
- Magnetic foot dimensions ca: 160 x 80 mm
Package Content
- 1 X 35mm Core Drilling Machine
- 1 X kettle
- 1 X rope
- 1 X drill chuck
- 1 X Silk power chuck
- 1 X chuck key
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
Electric Magnetic Drill Press
This class of leading drill press tools has been designed and engineered specifically for speed and precision, with solid magnetic adhesion of 10000 N, an optimized rotation speed of 680RPM. It is an essential tool for performing heavy-duty industrial and steel fabrication work.
- NOTE: Our magnetic drill can only be used with hollow boring bits, and annular bits less than 0.3″/8 mm in diameter.
- Superior Performance
- Useful Accessory Kit
- 10,000N Magnetic Force
- Thoughtful Designs & Cooling System
Excellent Performance
Designed for precise and demanding coring, this mag drill features 680rpm and 980 watts of motor power. Max. Coring Diameter: 1.38″/35mm; Max. Travel Distance: 4.92″/125mm. And our magnetic drill can only be used with hollow boring bits, and annular bits less than 0.3″/8 mm in diameter.
Practical Accessories
There are a stainless steel coolant pot. The cooling system avoids the risk of damage due to dust entering the machine.
10,000 N Suction Power
The stable base acts as a powerful electromagnet to firmly fix the drill bit at a force of 2250Lbs/10000N during work, preventing movement during drilling process.
Dustproof Cooling Hole
Coolant bottle with quick push-fit tube connection included for long cutter life and smooth drilling. What’s more, dustproof air inlet and exhaust air holes for temperature reduction.
Considerable Details
The crank handles are coated with non-slip rubber, which makes the operation easy and labor-saving. The ergonomically designed handle provides a comfortable grip. A simple control panel allows easy operation.
Various Application
The electromagnetic drill press plays a vitally important role in shipbuilding, equipment manufacturing, equipment installation, bridge engineering, and other engineering facilities.
Package Content
- 1 X 35mm Core Drilling Machine
- 1 X kettle
- 1 X rope
- 1 X drill chuck
- 1 X Silk power chuck
- 1 X chuck key
Specifications
- Model: BRM-35
- Power: 980 watts
- Power supply: 110V/50Hz
- Idle speed approx : 680 rpm
- Max. Drilling Φ (with core drill): 12-35mm
- Max. Drilling depth Φ (core drill): 2″(50mm)
- Max. Drilling Φ (with full drill): 1.5-13 mm
- Max. Travel distance: 125 mm
- Magnetic holding force: 10,000 N（2250Lbs）
- Magnetic foot dimensions ca: 160 x 80 mm
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
Work as should be, similar to Milwaukee magnetic drill, powerful and light weight
Verified Customer –
You can NOT beat this drill at this price point! It works exactly as it should and better than expected. An equivalent drill will cost you over a thousand dollars.
Verified Customer –
Hi, I ordered this Magnetic drill, and bought Annular bits separately because none came with this promotion. First off the drill is made really well, if you want to use the chuck for twist drills you can move the motor up by loosing up the allen screw and sliding the motor up, and you will have all the space you need. Why Vevor doesn’t mention this is a mystery. This drill weighs in ar 40lbs, the magnet is incredibly strong, the variable speed is great (no reverse). All in All a great piece of equipment. I’m an industrial Millwright by trade, and i would definitely recommend Vevors mag drills. If you want a mag drill with reverse for tapping, make sure you check the specs on the drill, because the pictures make them look all the same size, but there not!! Some of the ones with reverse are smaller, weighing in at about (27lbs) with a smaller magnet base, still a very nice Mag drill, but A stronger magnet usually means a heavier drill. I personally love them both. The heavy one that weighs (40lbs) I’m using on my welding table, the smaller one with reverse (27lbs) I’m using on vertical drilling so its not to heavy to set up. The Annular bits are a( A+)
Customer service is (A+) I had a problem with one order and they corrected it right away, even more than I expected. So Vevor did a nice job. And I will be purchasing from them again. I hope this helps awnswer some of your questions. And take a look at there products.
Ed
USA
Wisconsin
Verified Customer –
This is a nice drill that is very well made! My order was hassle free and shipped very quickly as always! I have been very pleased with everything I have purchased from Vevor!
Thanks Vevor!
Verified Customer –
Right after I received this tool the winch on my lowboy trailer went out. This magnetic drill with an annular cutter quickly drilled out the 1:2” thick steel mounting plate with ease, precisely where I wanted the mounting and clearance holes, and this was all done on the off-grid job site with the assistance of a generator for AC power. I would definitely buy another one!
Verified Customer –
Good for the price.
Verified Customer –
Works great
Verified Customer –
Used this in the shop with a buddy to help him and it did the same job as well if not better than his expensive brand mag drill performance matched the big brands
Verified Customer –
The mag drill is a beast. It works incredible given the cost, it literally performs as good as a red brand tool I’ve used before at 10% the cost. The magnet is powerful, the speed dial is great, and it has plenty of torque to really push the bits through.
My honest review is 9/10.
The ONLY negatives I’ve found – the speed control is touchy do’s low rpm, but that is to be expected in my opinion. The rails that the drill head rides in may require some infrequent adjusting. At first it took effort (minimal) to crank the head down and up – now it basically doesn’t “hold its self up”. Lastly, the oiling can has to be wide open to ge adequate flow while using annular cutters.
Verified Customer –
Excellent Drill
