Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Top-level Magnet: Get ready for unstoppable power! Our electric mag drill generates exceptionally powerful driving force with its 1300W copper motor. It is capable of drilling into the toughest material at 810 RPM. Max. Boring Diameter (Coring Drill): Φ1.6 in / Φ40 mm; Max. Coring Depth: 2 in / 50 mm
- Understand the Power: 2810 lbf / 12500N of robust force is generated by the electromagnetic thickened base, featuring pure iron anchors. The mag drill press operates stably at any angle during the drilling process.

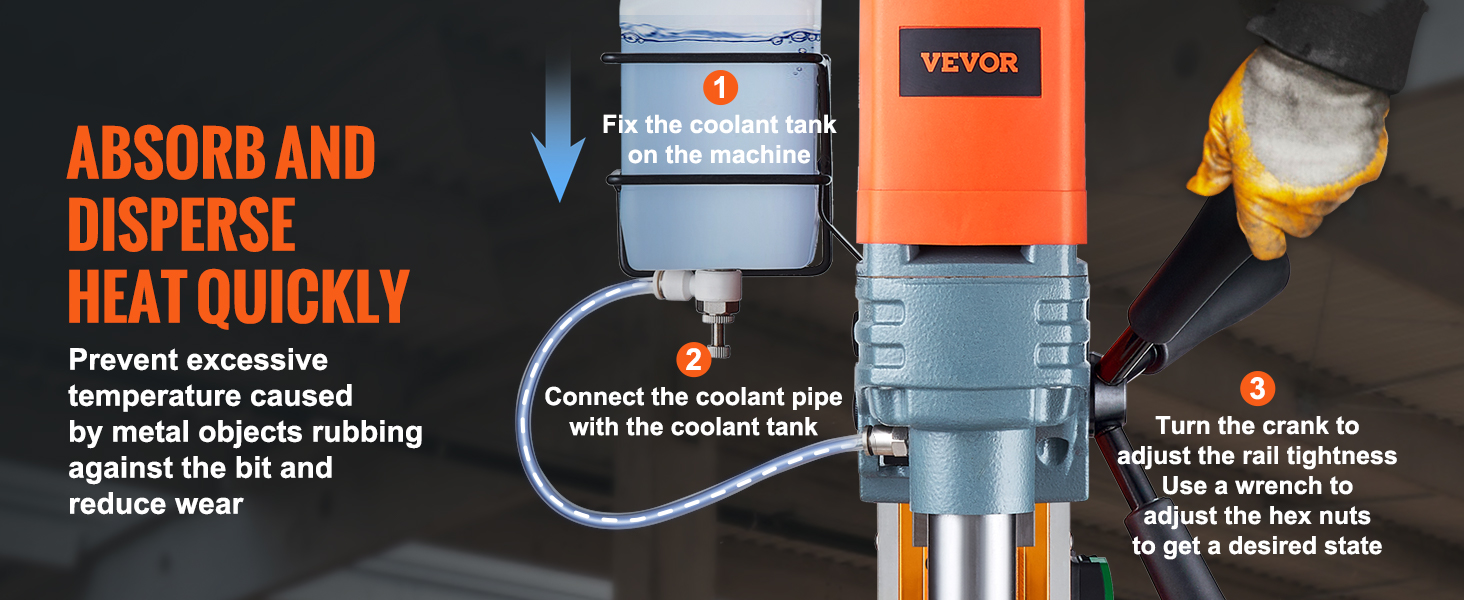

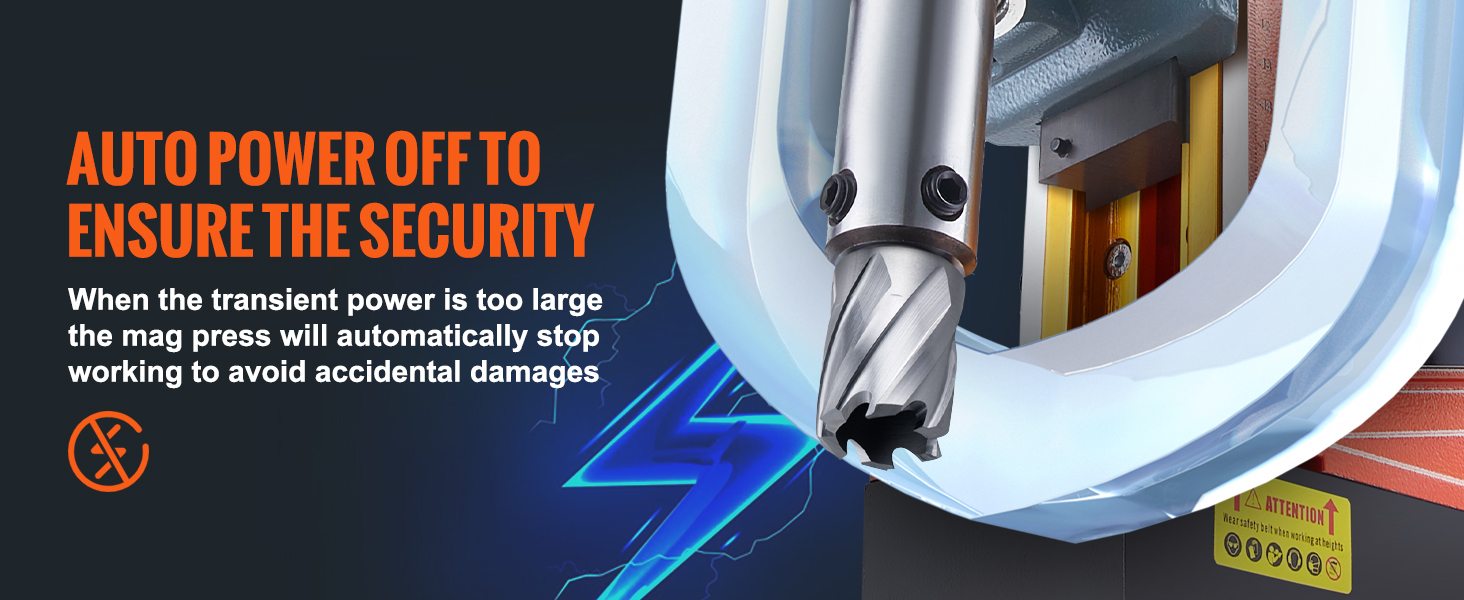

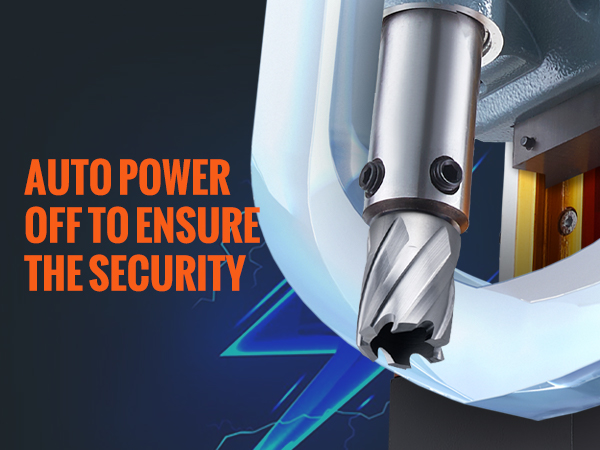

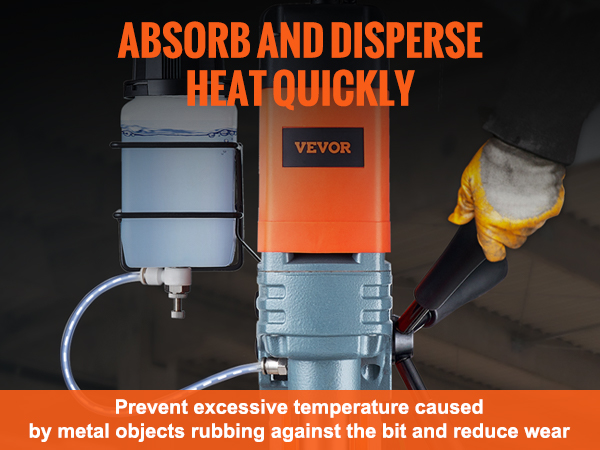

- Security and Durability: Your safety is paramount. The integrated overload protection features ensure operational integrity. The cooling system enables rapid heat dissipation, safeguarding operators from sudden power surges and elevated temperatures during drilling. Additionally, the premium alloy guide rail offers corrosion and wear resistance, significantly extending the device's service life.
- User-friendly design: A scale has been added to the machine's frame to help users pinpoint the distance between the drill bit and the drilled material in millimeters. Even a novice can bore accurate and neat holes. In addition, the ergonomically designed handle and 3 extended cranks provide a comfortable grip during handling and moving, saving great effort.
- Wide Applications: This versatile magnetic drill plays a vitally important role in home improvement, equipment installation, industrial and steel fabrication, ship and bridge building, railway manufacture, windmill & power-plant construction, and many other fields. Note: Ensure optimal use by adhering to a steel plate thickness of ≥ 0.39 in / 10 mm. Not suitable for stainless steel or cast iron. Please use a safety rope for inverted and horizontal drilling

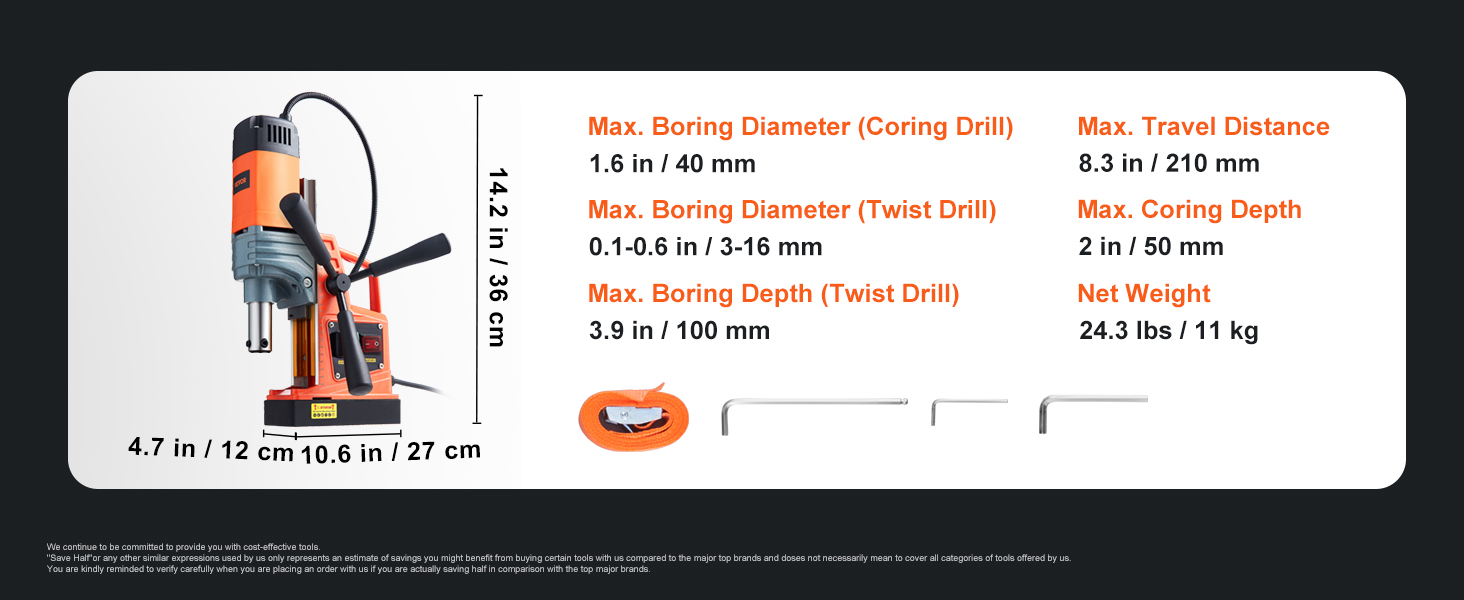

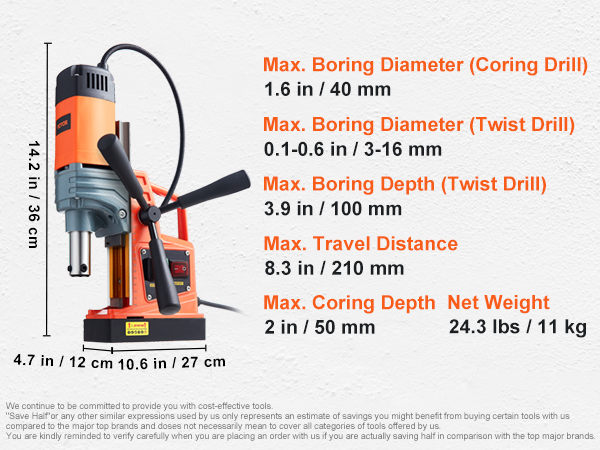

Technical Specifications
| Item Model Number | 8840 |
|---|---|
| Shank Type | Weldon Shank |
| Maximum Load Power | 1300W |
| Maximum Magnetic Force | 2810 lbf / 12500 N |
| No-Load Speed | 810 rpm |
| Max. Boring Diameter (Coring Drill) | Φ1.6 in / 40 mm |
| Max. Coring Depth | 2 in / 50 mm |
| Max. Boring Diameter (Twist Drill) | Φ0.1-0.6 in / 3-16 mm |
| Max. Boring Depth (Twist Drill) | 3.9 in / 100 mm |

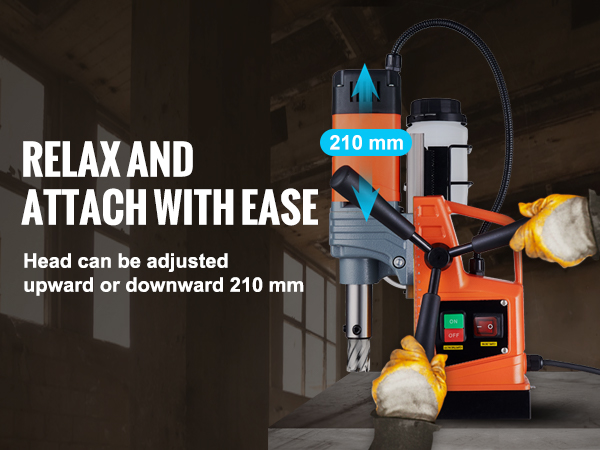

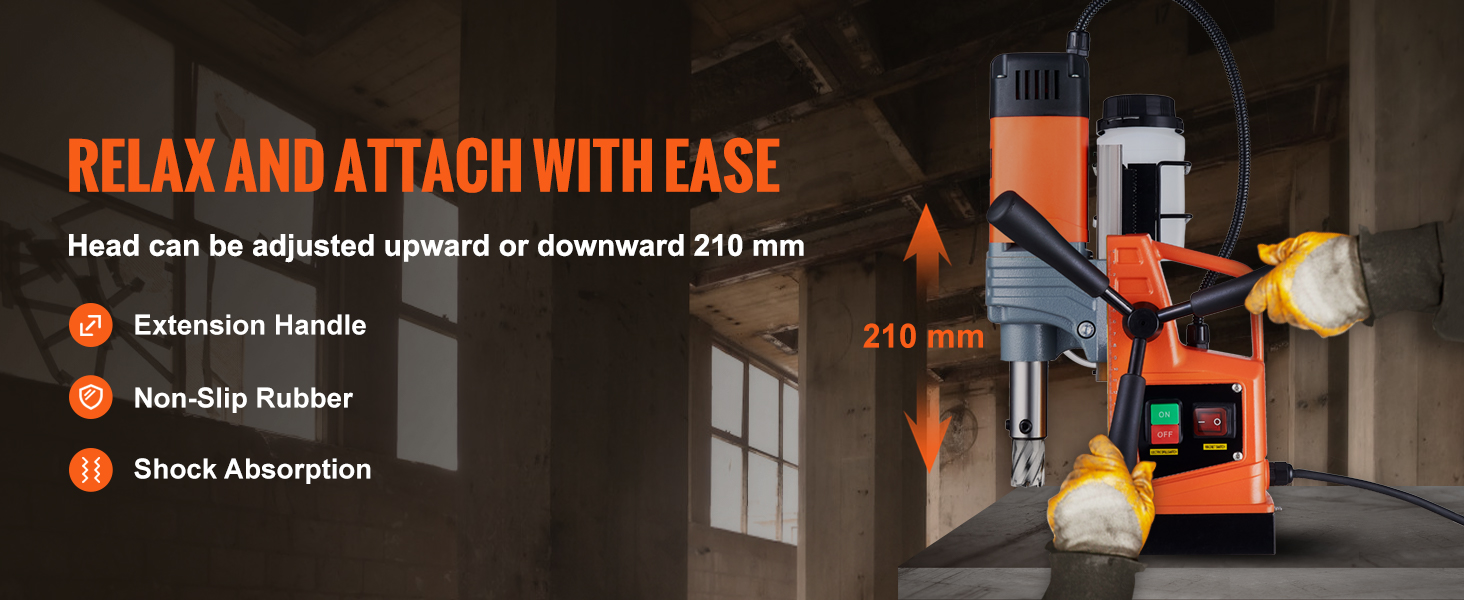

| Max. Travel Distance | 8.3 in / 210 mm |
| Net Weight (Including All Accessories) | 24.3 lb / 11 kg |
Detailed Overview
The Pinnacle of Magnetic Power
This magnetic drill press securely adheres to steel or iron surfaces, delivering precise, burr-free holes. Made of premium alloy, it’s ideal for home assembly, industrial use, and steelwork.
Q: What is the applied voltage and size of the product?
A: The product size is 10.6×4.7×14.2in/270x120x360mm, applicable voltage/frequency is 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: What is the drilling range of the product?
A: Max boring diameter of the coring drill is 40 mm; Boring diameter of the twist drill is 3-16 mm;
Q: What accessories are in the package?
A: Our products are equipped with professional drilling tools, including a coolant tank, a coolant tube, a rope, 3 hex wrenches, and 3 hand cranks.
A: The product size is 10.6×4.7×14.2in/270x120x360mm, applicable voltage/frequency is 120V 60Hz for US.
Q: What kind of materials does the mag press work on? What kind of drill bits are they compatible with?
A: The magnetic drill can bore on steel and iron structures above a 10mm thickness by upright, inverted, and horizontal adsorption. Drilling bits with a diameter of less than 50mm are applied.
Q: What is the drilling range of the product?
A: Max boring diameter of the coring drill is 40 mm; Boring diameter of the twist drill is 3-16 mm;
Q: What accessories are in the package?
A: Our products are equipped with professional drilling tools, including a coolant tank, a coolant tube, a rope, 3 hex wrenches, and 3 hand cranks.
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
I received my mag drill on time, and when I picked up the box, I knew by the weight of the package, that it was a quality item ! When I took it out of the box, I couldn’t believe the construction and Quality, for the price ! Compared to the top of the line machines, this one rates 5 out of 5 stars ! Thanks, Mike.
Verified Customer –
Work as should be, similar to Milwaukee magnetic drill, powerful and light weight
Verified Customer –
You can NOT beat this drill at this price point! It works exactly as it should and better than expected. An equivalent drill will cost you over a thousand dollars.
Verified Customer –
Hi, I ordered this Magnetic drill, and bought Annular bits separately because none came with this promotion. First off the drill is made really well, if you want to use the chuck for twist drills you can move the motor up by loosing up the allen screw and sliding the motor up, and you will have all the space you need. Why Vevor doesn’t mention this is a mystery. This drill weighs in ar 40lbs, the magnet is incredibly strong, the variable speed is great (no reverse). All in All a great piece of equipment. I’m an industrial Millwright by trade, and i would definitely recommend Vevors mag drills. If you want a mag drill with reverse for tapping, make sure you check the specs on the drill, because the pictures make them look all the same size, but there not!! Some of the ones with reverse are smaller, weighing in at about (27lbs) with a smaller magnet base, still a very nice Mag drill, but A stronger magnet usually means a heavier drill. I personally love them both. The heavy one that weighs (40lbs) I’m using on my welding table, the smaller one with reverse (27lbs) I’m using on vertical drilling so its not to heavy to set up. The Annular bits are a( A+)
Customer service is (A+) I had a problem with one order and they corrected it right away, even more than I expected. So Vevor did a nice job. And I will be purchasing from them again. I hope this helps awnswer some of your questions. And take a look at there products.
Ed
USA
Wisconsin
Verified Customer –
This is a nice drill that is very well made! My order was hassle free and shipped very quickly as always! I have been very pleased with everything I have purchased from Vevor!
Thanks Vevor!
Verified Customer –
Right after I received this tool the winch on my lowboy trailer went out. This magnetic drill with an annular cutter quickly drilled out the 1:2” thick steel mounting plate with ease, precisely where I wanted the mounting and clearance holes, and this was all done on the off-grid job site with the assistance of a generator for AC power. I would definitely buy another one!
Verified Customer –
Good for the price.
Verified Customer –
Works great
Verified Customer –
Used this in the shop with a buddy to help him and it did the same job as well if not better than his expensive brand mag drill performance matched the big brands
Verified Customer –
The mag drill is a beast. It works incredible given the cost, it literally performs as good as a red brand tool I’ve used before at 10% the cost. The magnet is powerful, the speed dial is great, and it has plenty of torque to really push the bits through.
My honest review is 9/10.
The ONLY negatives I’ve found – the speed control is touchy do’s low rpm, but that is to be expected in my opinion. The rails that the drill head rides in may require some infrequent adjusting. At first it took effort (minimal) to crank the head down and up – now it basically doesn’t “hold its self up”. Lastly, the oiling can has to be wide open to ge adequate flow while using annular cutters.
