Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- High-Quality Compressor and Circulation Pump: The VEVOR laboratory chiller circulator features an efficient, fully enclosed compressor, compact structure, rapid cooling speed, and robust temperature stability for long-term constant-temperature operation. The quiet circulation water pump ensures low noise and smooth operation, maintaining stable water flow over extended periods.
- Advanced Smart Control: Our circulator pump chiller features a high-definition LCD screen with 0.01℃ accuracy, a temperature range of -5℃ to 100℃ (23°F to 212°F), and a clear digital display for easy monitoring. It includes overheat and over-current protection, with alarms for overheating, ensuring a smart and comfortable user experience.
- Internal and External Dual Circulation System: The lab recirculating chiller features internal mode for stable, precise temperatures in small-scale experiments and storage, and external mode for seamless integration with equipment, supporting large-scale experiments and industrial applications. The dual circulation design enhances equipment versatility and flexibility.

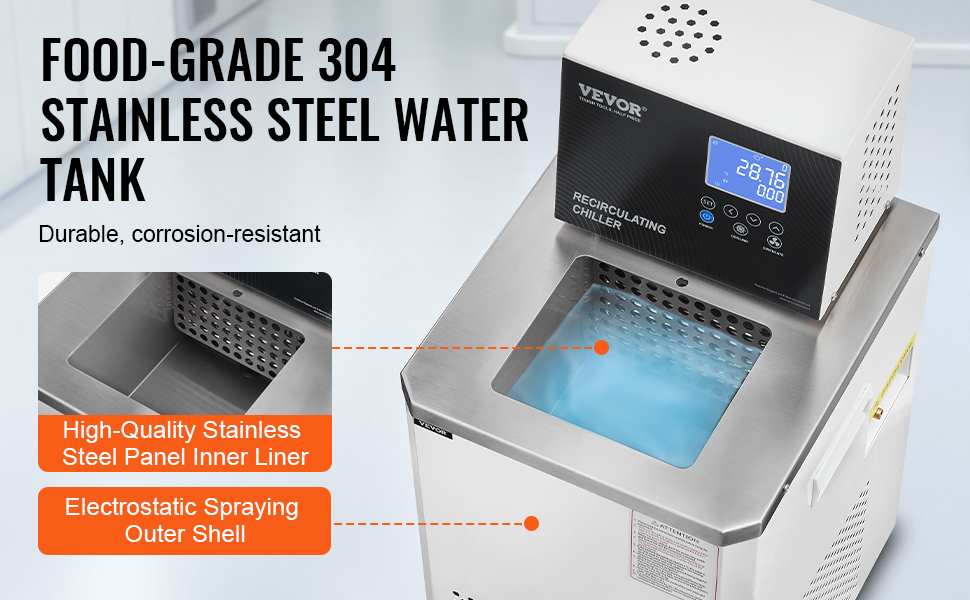

- High-Quality Corrosion-Resistant Materials: The recirculating water cooling chiller features a 304 stainless steel worktop and water tank, providing superior resistance to chemicals, acids, and alkalis, with minimal risk of deformation or damage. Electrostatic spraying technology enhances the unit's service life.
- Wide Application: The lab chiller cooler is particularly suitable for chemical, biological, and physical laboratory work under normal or extreme temperature conditions. It is ideal for biotechnology, food processing, chemical engineering, metallurgy, chemical analysis, petroleum, and other fields. Note: The equipment supports ethanol as a refrigerant and is plug-and-play, requiring no voltage adjustment before use.

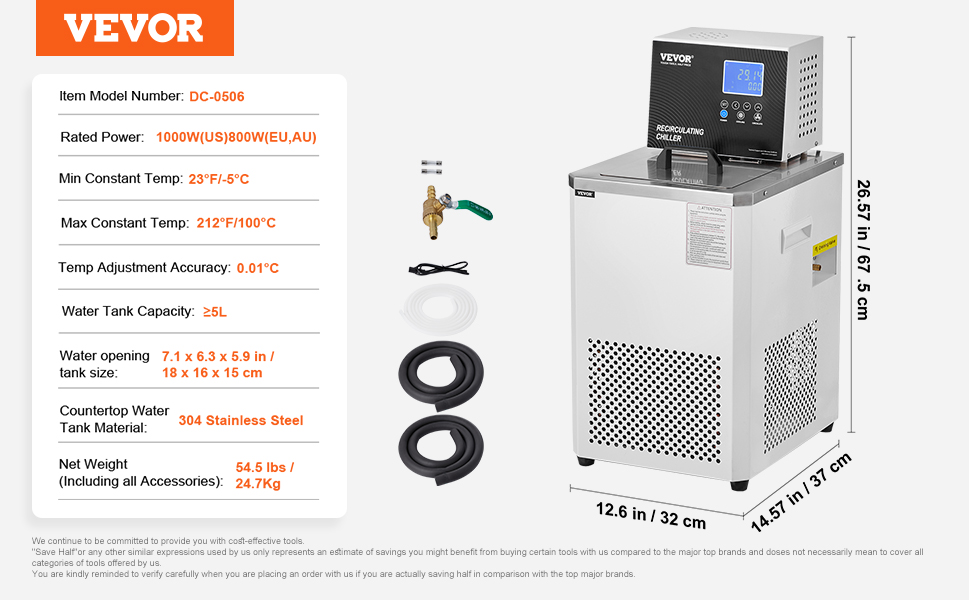

Technical Specifications
| Item Model Number | DC-0506 |
|---|---|
| Rated Power | 1000W(US)/800W(EU,AU) |
| Min Constant Temp | 23°F / -5℃ |
| Max Constant Temp | 212°F / 100℃ |
| Temp Adjustment Accuracy | 0.01℃” |
| Water Tank Capacity | ≥5L |
| Water Tank Size (LxWxH) | 7.1 x 11 x 5.9 in / 18 x 28 x 15 cm |
| Countertop Water Tank Material | 304 Stainless Steel |
| Net Weight (Including all Accessories) | 54.5 lbs / 24.7Kg |
| Product Dimensions(LxWxH) | 12.6 x 15.6 x 26.2 in / 32 x 39.5 x 66.5 cm |
Detailed Overview

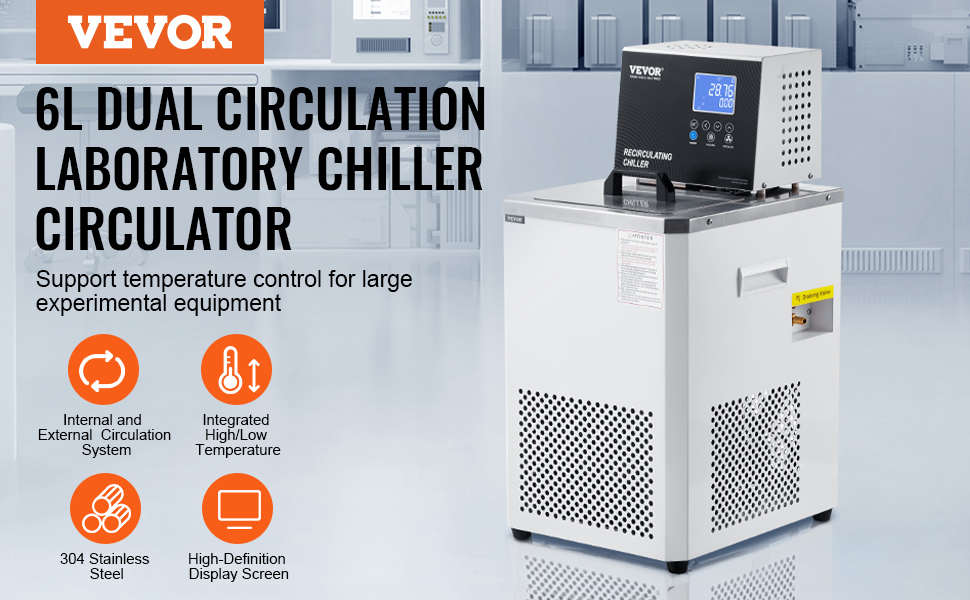

VEVOR Dual Circulation System Laboratory Chiller Circulator
The internal circulation mode ensures uniform temperatures for precise small-scale experiments and sample preservation. The external circulation mode connects with external equipment, providing temperature control for large-scale experiments and industrial applications, boosting flexibility.

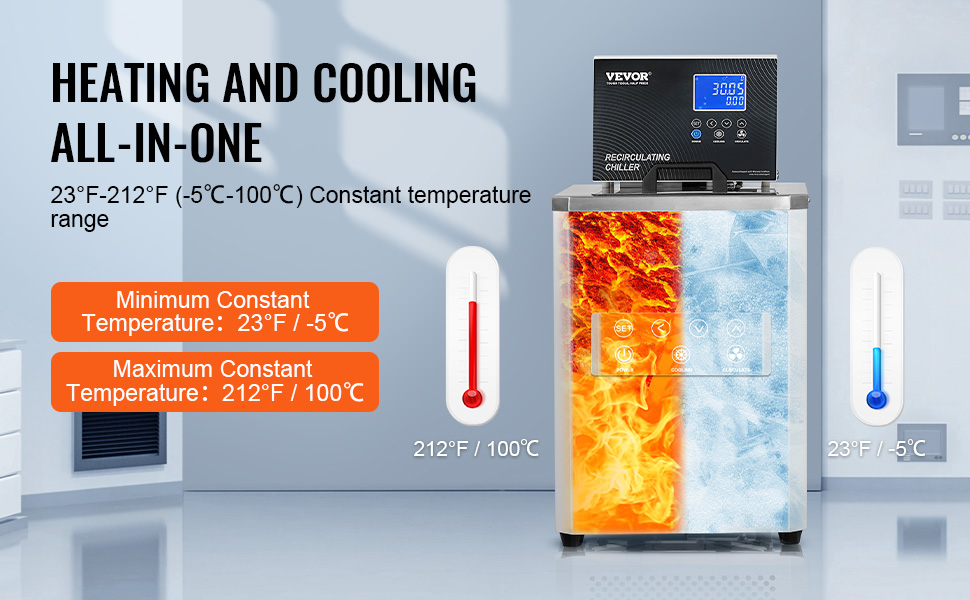

Whether you need precise low-temperature environments for biological sample preservation or high-temperature conditions for chemical synthesis reactions, our circulator pump chiller handles it all. Minimum constant temperature: 23°F / -5℃, maximum constant temperature: 212°F / 100℃.

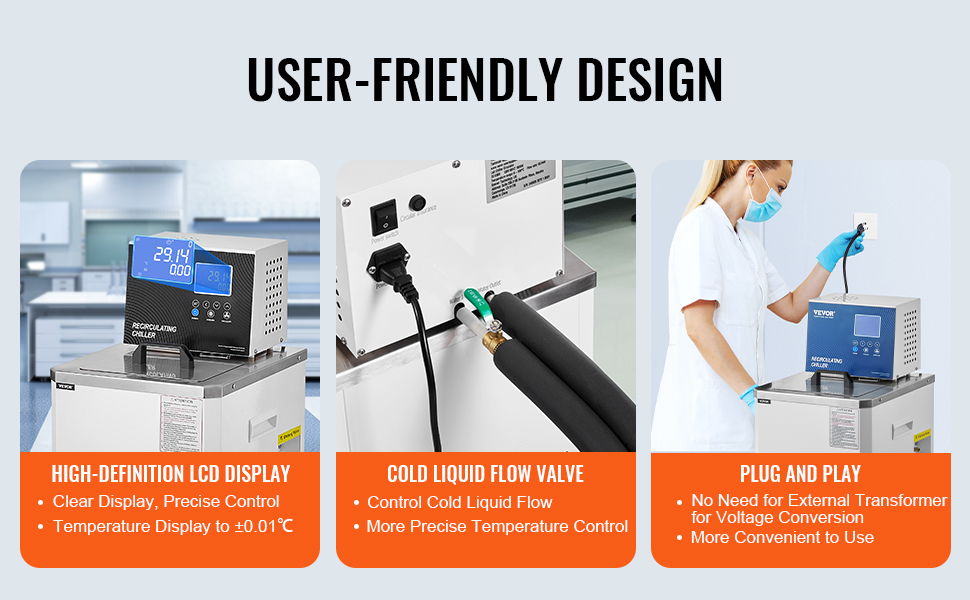

High-precision temperature display of ±0.01℃ ensures precise control over temperature and timing. Our circulator pump chiller is equipped with a cold liquid flow valve for precise control. Plug-and-play functionality without the need for external voltage transformers before use.
The lab chiller cooler features a thick and durable stainless steel worktop ensures stable performance over the long term. Electrostatic spraying technology throughout prevents rusting and extends the lifespan. Stainless steel cover and hidden handle enhance convenience and safety.
Our recirculating water cooling chiller is suitable for various laboratory environments, particularly for high and low-temperature experiments. It widely used in biotechnology, food processing, chemical engineering, metallurgy, chemical analysis, and petroleum industries.
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
I have compared these to other first buy chillers, this is the best price. I have been using mine for 6 months and no issues. It could definitely use a better circulator and chiller unit but I can’t expect much for $900. I use this for running soxhlet extractors. I can really only one at a time with water extractions. I can usually run two extractors at once with an alcohol extraction because it has a lower boiling point and doesn’t over heat the unit.My wish is it would have a higher pressure circulator but again, compared to $5000 starting units, this is pretty good and can hold low temps pretty consistently. I use around 50-70% isopropyl alcohol with it.
Verified Customer –
Works as intended. Would be better if it has closed-loop capabilities (temp controlled externally).
Verified Customer –
Works as advertised. There is no computer interfacing for dynamic control but this is perfect for situations where you need a constant temperature.
Verified Customer –
Very reliable chiller at a very competitive price.
Verified Customer –
This fountain is awesome. It looks modern, doesn’t take up a lot of space, and as advertised it is very quiet. Filters are convenient to order and easy to replace.
Verified Customer –
Extremely easy to use and clean. My only complaint is not being able to see the internal water level but you can tell when you pick it up if it’s running low.
Verified Customer –
Let’s look at this laboratory chiller…Very impressed by the crating of this chiller. The equipment is sizeable and heavy. It took two movers to move the crate up one flight of stairs. All contents inside were perfectly protected with no damage. We are a small lab that performs pharmaceutical development of investigational products. Since we have many different development projects, we need a flexible lab understanding that our equipment is also flexible. The operating temperatures are perfect for our wide variety of temperature uses. The construction materials were favorable and ideal for a lab environment. Controls of the unit are entirely push button, and a nice digital screen with just the information you need. Our first use of the machine was in the range of 25C and 48C. The circulator worked well and responded to temperature set points very quickly. The materials of construction were favorable and perfect for a lab environment. Yes, there are occasional reasons to buy similar units for quadruple the price, but this solution was perfect in this case! Disclosure Statement: You should read the manual before operating it. Not like me.
Verified Customer –
Wonderful chiller, very nice people to work with. Fed Ex lost one of the two I ordered and they made it right immediately. The one I did get arrived fast and works like a charm. A bit larger that the units sold by instrument companies but holds temperature just as well. Would definitely buy again.
Verified Customer –
Works extremely well. Can easily go from chilling to heating which is especially useful for jacketed reaction systems. Go flow pressure. Great for the price especially.
Verified Customer –
Works as expected.
