Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Premium Material: Diameter: 5 inch / 125 mm. The 4-jaw mini lathe chuck body is made of cast iron that has passed rigorous quality tests. It features high strength and toughness, compression resistance, durability, and a long service life.
- Reversible Jaw Set: The lathe chuck is equipped with 3 inward stepped jaws that can be adjusted inward or outward to securely hold raw materials of varying shapes. The high-precision bevel gear design ensures accurate chuck operation.
- Enhanced Flexibility: The T-shaped chuck key enables installation of various workpieces and ensures effortless operation to reduce changeover time.
- Internal Jaw Clamping Range: 0.276"-2.244" / 7-57 mm
- External Jaw Clamping Range: 1.89"-4.92" / 48-125 mm
- High Precision: The 4-jaw lathe chuck operates with high accuracy, featuring a bearing tolerance of ≤ 0.003 inch / 0.07 mm to ensure precise metalworking. The accessory screws enhance adaptability, allowing compatibility with the same series of jaws as the chuck.
- Remarkable Versatility: This 4-jaw independent metal lathe chuck features a compact construction. It is suitable for installation on multiple types of metal lathe chucks and clamping workpieces of various shapes.
Technical Specifications
| Chuck Body Material | Cast Iron |
|---|---|
| Color | Silver |
| Jaws Material | 40CR Steel |
| Bevel Gear Material | 40CR Steel |
| Pinions Material | 20CR Steel |

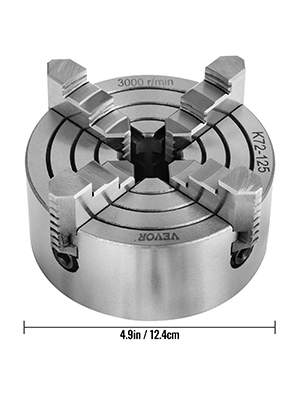

| Chuck Diameter | 4.92″ / 125 mm |
| Center Hole | 1.2″ / 30 mm |
| Circle Diameter | 4.3″ / 108 mm |
| Internal Jaw Clamping Range | 0.276″-2.244″ / 7-57 mm |
| External Jaw Clamping Range | 1.89″-4.92″ / 48-125 mm |
| Tolerance | ≤ 0.003″ / 0.07 mm |
| Accuracy | 0.002″ / 0.051 mm |
| Maximum Speed | 3000 RPM |
| Item Weight | 10.9 lbs / 4.92 kg |
| Package Dimensions (L x W x H) | 5.9″ x 5.5″ x 3.93″ / 15 x 14 x 10 cm |
Detailed Overview

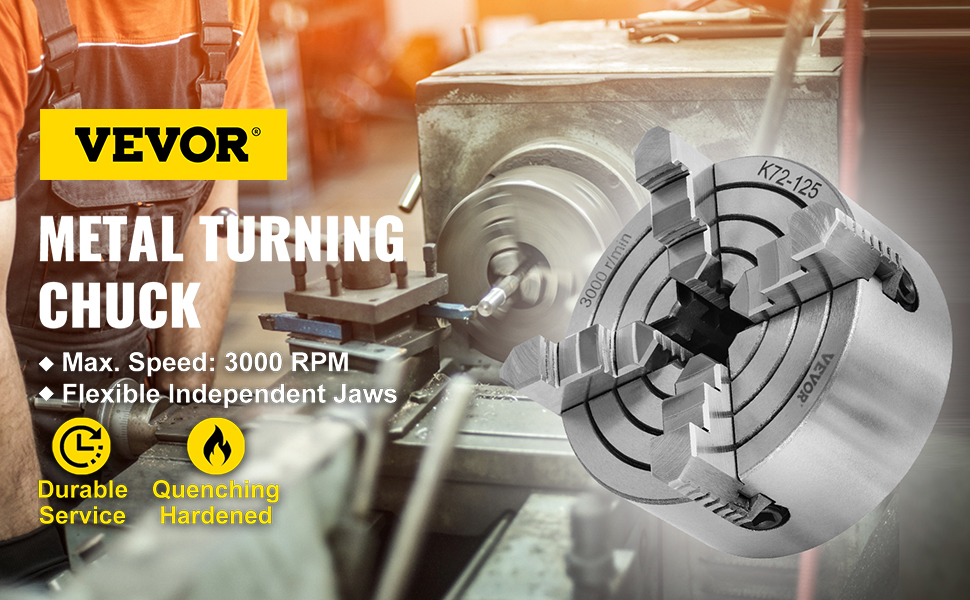

K72-125 4-Jaw Independent Lathe Chuck
Large Clamping Range & Flexible Adjustment & w/ Chuck Key
The 5-inch independent lathe chuck is composed of a strong cast iron body and four hardened steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle. It is ideal for your lathe.
- Premium Material
- Reversible Jaw Set
- Enhanced Flexibility
- High Precision
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

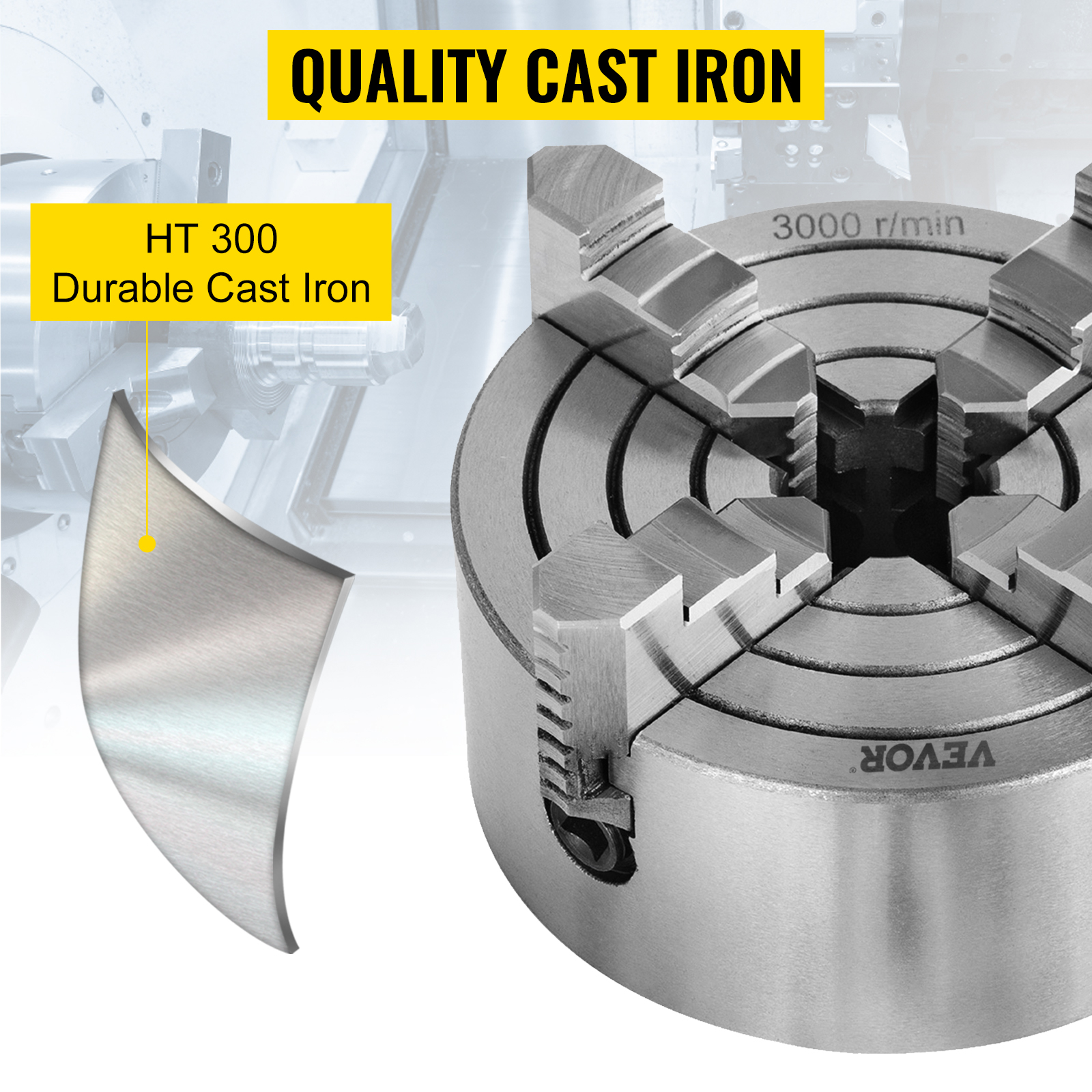

Quality Cast Iron
The lathe chuck body is made of high-quality cast iron that is rigid and durable, and it looks low-profile.

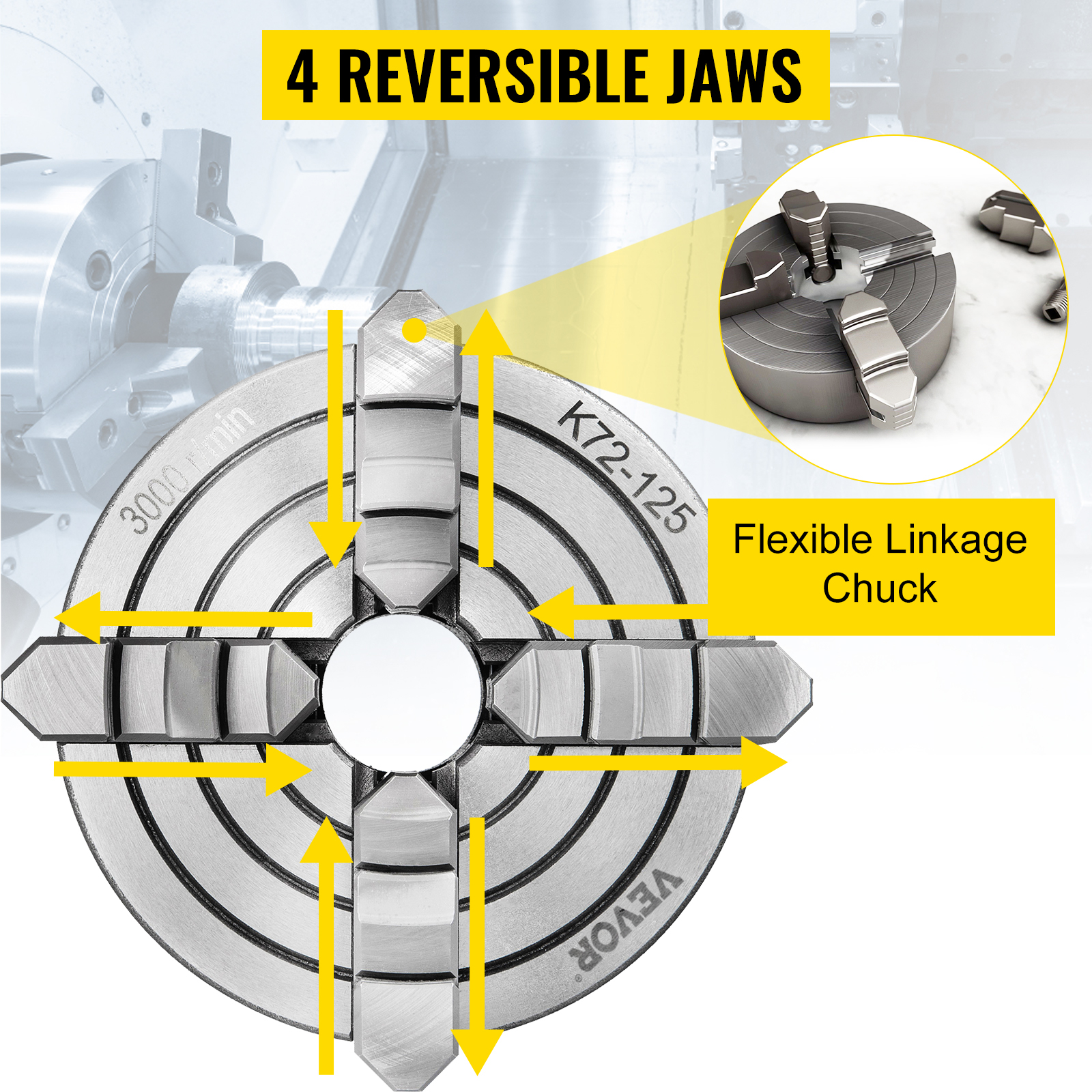

4 Reversible Jaws
The chuck jaws can step either inward or outward so that it’s easy for you to deal with various materials.

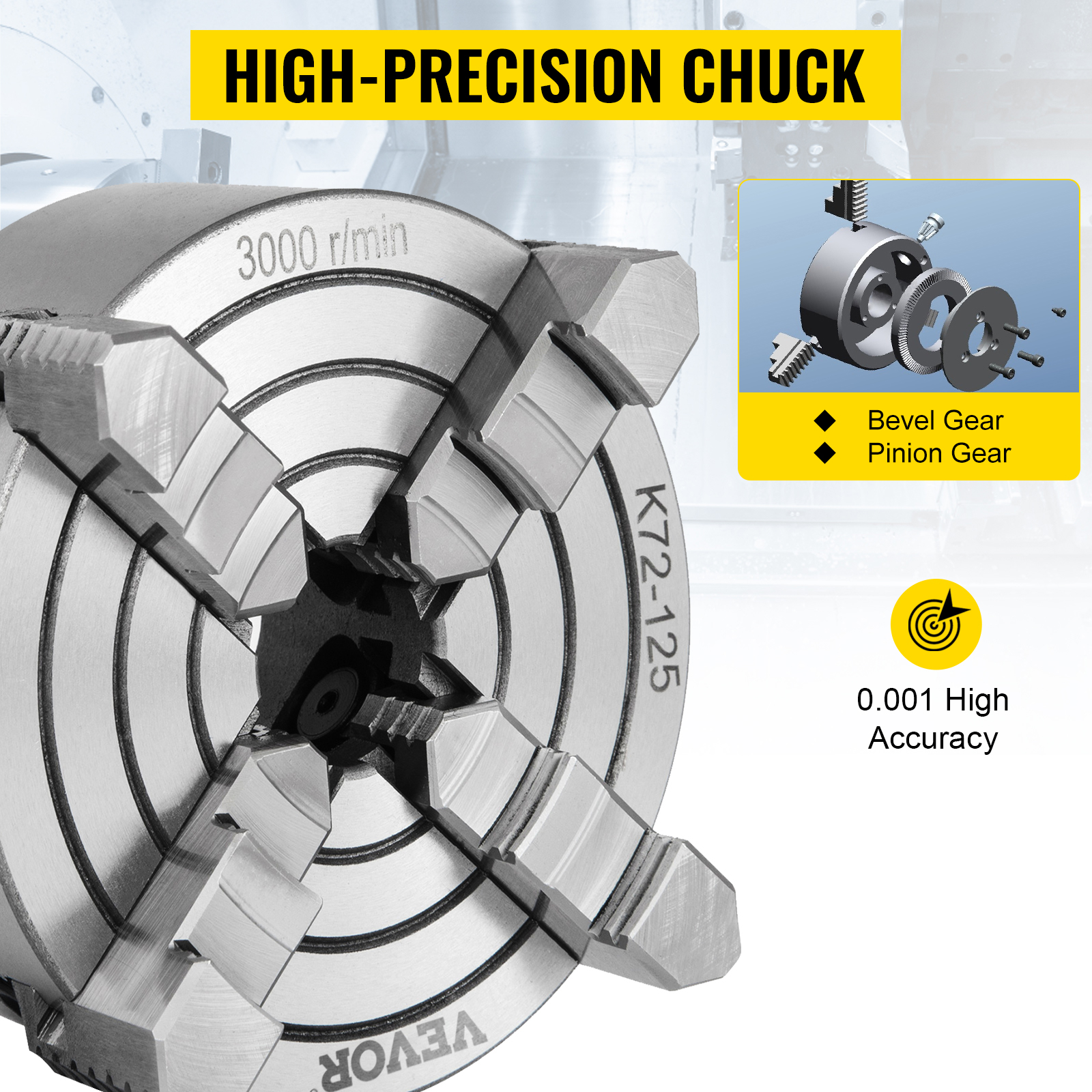

With Great Accuracy
The K72 lathe machine chuck works with few vibrations, ensuring you will get accurate finished parts.
Independent Jaws
The mini lathe chuck features four independent jaws. Each of them is set respectively and can stop in different places.
Easy to Operate
The lathe collet chuck comes with a T wrench, with which you can easily loosen or tighten the jaws.

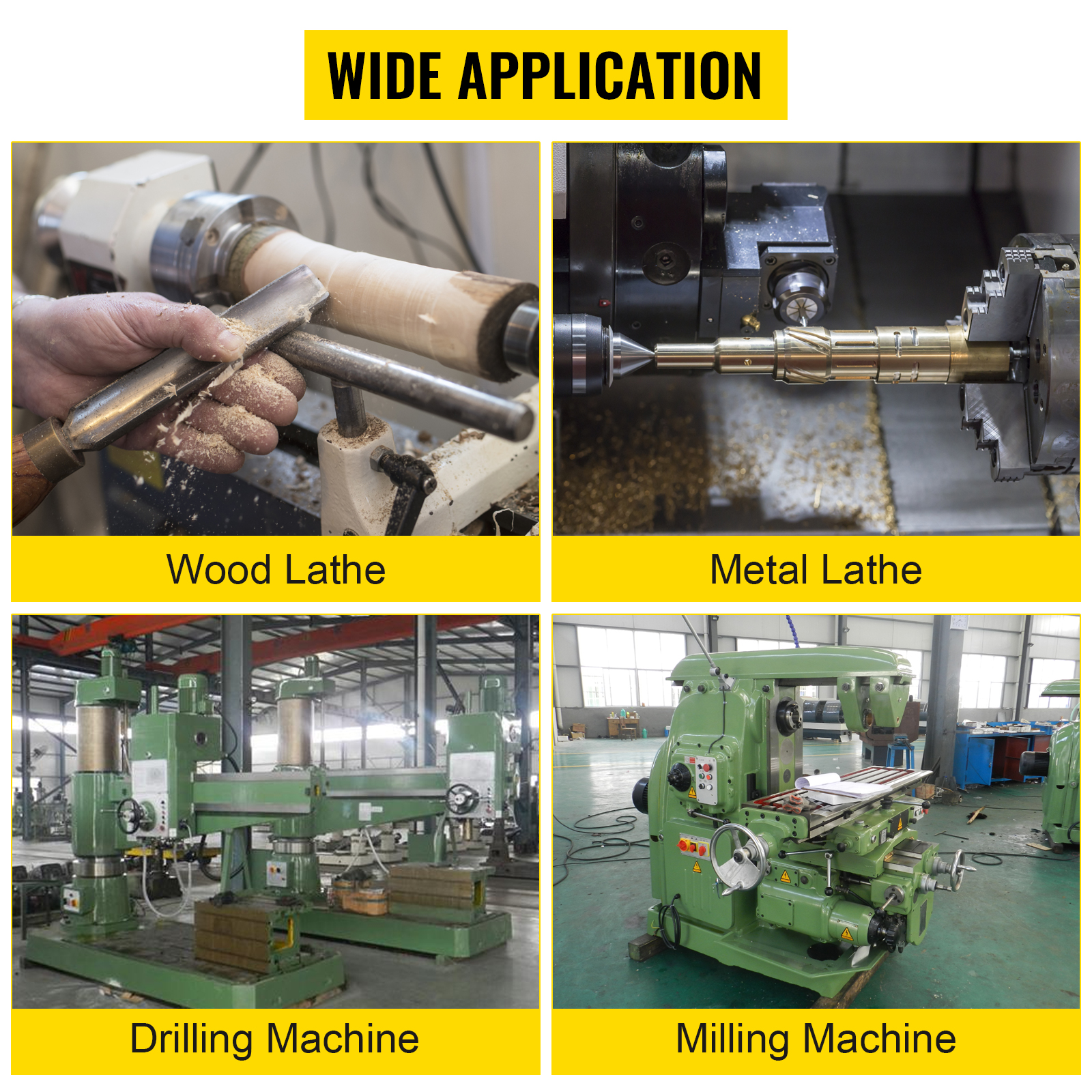

Wide Application
The 4-jaw independent chuck is light and convenient, and it is the perfect choice for your lathe machine.
Specifications
- Chuck Body Material: Cast Iron
- Color: Silver
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel
- Chuck Diameter: 4.92″ / 125 mm
- Center Hole: 1.2″ / 30 mm
- Circle Diameter: 4.3″ / 108 mm
- Internal Jaw Clamping Range: 0.276″-2.244″ / 7-57 mm
- External Jaw Clamping Range: 1.89″-4.92″ / 48-125 mm
- Tolerance: ≤ 0.003″ / 0.07 mm
- Accuracy: 0.002″ / 0.051 mm
- Maximum Speed: 3000 RPM
- Item Weight: 10.9 lbs / 4.92 kg
- Package Dimensions (L x W x H): 5.9″ x 5.5″ x 3.93″ / 15 x 14 x 10 cm

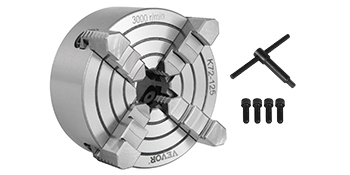

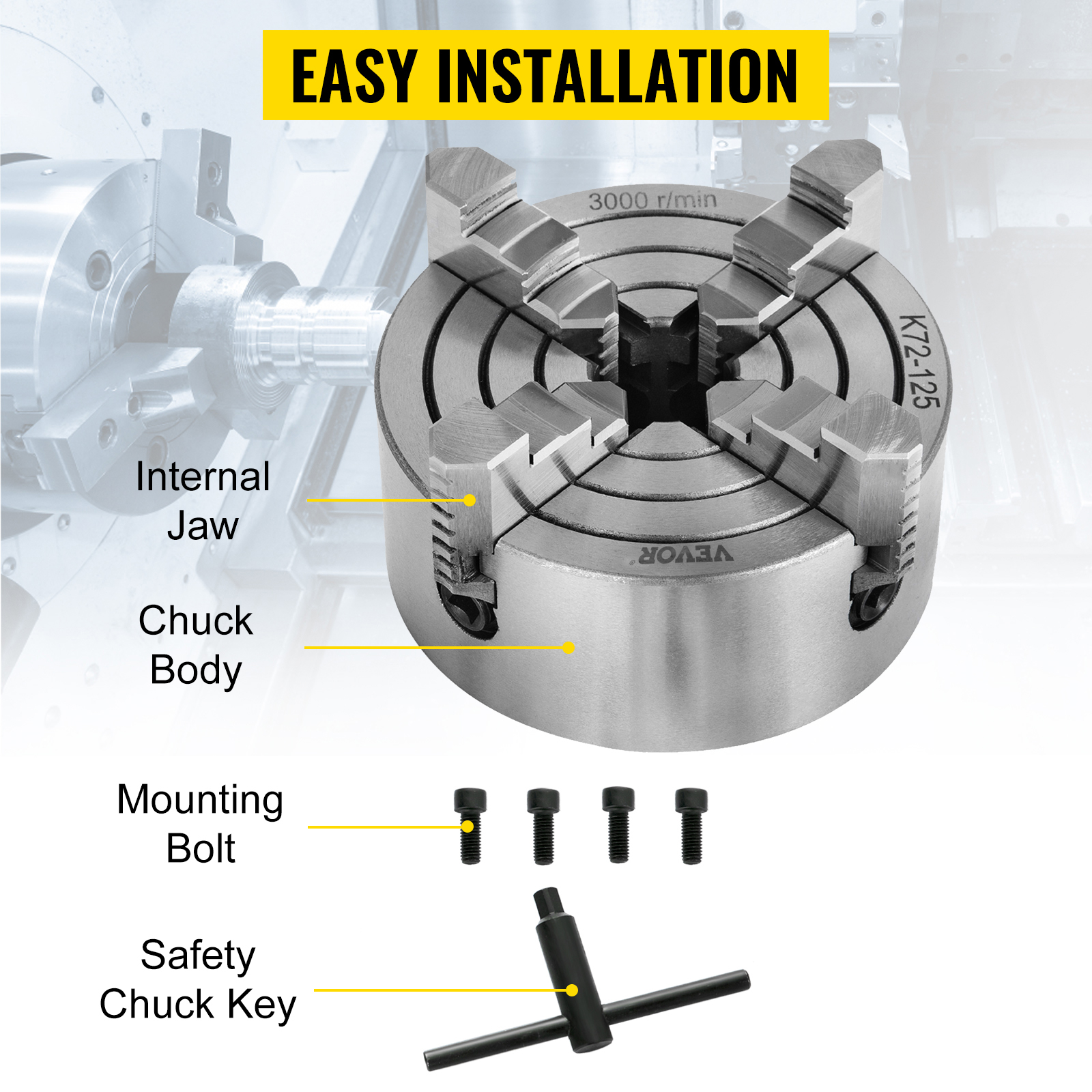

Package Content
- 1 x Lathe Chuck
- 4 x Mounting Screws
- 1 x Chuck Key
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
K72-125 4-Jaw Independent Lathe Chuck
Large Clamping Range & Flexible Adjustment & w/ Chuck Key
The 5-inch independent lathe chuck is composed of a strong cast iron body and four hardened steel jaws so that it can withstand harsh working environments. It features a wide clamping range and high precision. So you can deal with a variety of materials after fastening it with a single T handle. It is ideal for your lathe.
- Premium Material
- Reversible Jaw Set
- Enhanced Flexibility
- High Precision
Quality Cast Iron
The lathe chuck body is made of high-quality cast iron that is rigid and durable, and it looks low-profile.
4 Reversible Jaws
The chuck jaws can step either inward or outward so that it’s easy for you to deal with various materials.
With Great Accuracy
The K72 lathe machine chuck works with few vibrations, ensuring you will get accurate finished parts.
Independent Jaws
The mini lathe chuck features four independent jaws. Each of them is set respectively and can stop in different places.
Easy to Operate
The lathe collet chuck comes with a T wrench, with which you can easily loosen or tighten the jaws.
Wide Application
The 4-jaw independent chuck is light and convenient, and it is the perfect choice for your lathe machine.
Package Content
- 1 x Lathe Chuck
- 4 x Mounting Screws
- 1 x Chuck Key
Specifications
- Chuck Body Material: Cast Iron
- Color: Silver
- Jaws Material: 40CR Steel
- Bevel Gear Material: 40CR Steel
- Pinions Material: 20CR Steel
- Chuck Diameter: 4.92″ / 125 mm
- Center Hole: 1.2″ / 30 mm
- Circle Diameter: 4.3″ / 108 mm
- Internal Jaw Clamping Range: 0.276″-2.244″ / 7-57 mm
- External Jaw Clamping Range: 1.89″-4.92″ / 48-125 mm
- Tolerance: ≤ 0.003″ / 0.07 mm
- Accuracy: 0.002″ / 0.051 mm
- Maximum Speed: 3000 RPM
- Item Weight: 10.9 lbs / 4.92 kg
- Package Dimensions (L x W x H): 5.9″ x 5.5″ x 3.93″ / 15 x 14 x 10 cm
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
Br advised that this chuck requires 4 mtg studs. I was unaware and tried to mount it on my three hole back plate???
Need adapter plate or redrill back plate
Verified Customer –
I got this to use on my old Atlas 12 ” lathe. The original 4 jaw is way too big for small stuff. I have a three jaw that I use mostly, but I need something to hold small irregular pieces. This fits my needs fine. I found a backplate on EBAY that just happened to fit PERFECTLY after I received it. Took a fine face cut to insure no run-out. It’s typical Chinese quality, But it serves my purpose. Don’t recommend for fine precision jobs though.
Verified Customer –
My minilathe came with a three-jaw chuck, so I needed a four-jaw for times when odd shaped materials won’t work in the 3-jaw. It came well packaged and completely covered with a machine oil to prevent rust, and it took a bit to clean it all off. The jaws all needed sharp edges smoothed off, and once re-lubricated and assembled, it works fine. Just taking a star off for the sharp edges.
Verified Customer –
Great value 4 jaw chuck for the price. It came in clean without much dirt or grime from manufacturing. I only needed to remove the jaws, give it wipe down, and mount it on the lathe. Keep in mind this chuck has 4 bolt pattern for mounting.
Verified Customer –
Bought to put on a weld positioner, works great to be able to weld square to round parts. I took the spring off the chuck end bit the quality seems good.
Verified Customer –
Needed to make some parts with offsets, so I got this. The mounting studs that came with it might have worked if the mounting plate on my lathe was 3 angstroms thick, but I cut the heads off some bolts to mount it. After cleaning it up, and oiling it, it works fine, and the mild aggravation was worth it for the price. The parts got made.
Verified Customer –
Shipping was quick, as was the delivery. I had the chuck in my hands within two days of ordering it.
The quality of the chuck seems pretty good, all the parts arrived without any obvious defects. I ordered this for a future project so I can’t swear to the quality 100%, but a visual and functional inspection didn’t turn up any problems. The independent jaws adjust as expected, and the body seems well made.
I’m looking forward to building a 4th axis for my CNC with this and a few more parts. After I customize my CNC to increase rigidity and use an 80mm air-cooled spindle.
Anyway, it seems a great value purchase and I’m hoping to get some good use out of this.
Verified Customer –
Definitely worth the money. Do note this is not Self centering
Verified Customer –
Good little four jaw chuck for the price. I use it on my dividing head so that I can dial the part in precisely.
Verified Customer –
Ok so I purchased 4 independent jaw chuck because its the only way I can work on shapes other then round.
I never owened anything other than a three jaw chuck, so it was a learning curve.
Quality and precision: My Vevor lathe came with a three bolt stud mounting pattern, and new chuck has a four hole mounting pattern.at first a bought a four hole backing plate to later realize my backing plate is pressed on. So new plate was a waste of money. I wound up drilling my original backing plate , to work with the four hole new chuck.After mounting up everything my runout turned out to be .002. Now that was a surprise to say the least. I very happy with purchase. I would definitely purchase again.
