Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Solid Cast Iron Construction: Swing: 6-1/2"/168 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long-term use. Its delicate parts work perfectly, mathematically dividing the materials to be cut.
- Easy of Adjustment: The headstock of the dividing head for the milling machine can tilt from 10 degrees below horizontal to 90 degrees vertical so that you can handle the stuff of different sizes by changing its angle.
- High Precision Indexing Plate: The universal dividing head comes with a direct indexing plate and an interchangeable one on the head, and two replacement interchangeable ones with different numbers of holes. It's the dividing plates that set the precise distance between cuttings.
- Strong Workpiece Support: The coming package also includes a tailstock that will give strong support to the long metal stick you are going to deal with, providing a more stable working condition.
- Versatile Application: The rotary indexer is used on the tables of milling machines and other machine tools, including drill presses, grinders, and boring machines.
Technical Specifications
| Swing | 6-1/2″ (16.5 cm) |
|---|---|
| Center Height | 3-15/16″ (10 cm) |
| Headstock Taper | MT2 |
| Net Weight | 50.7 lbs (23 kg) |

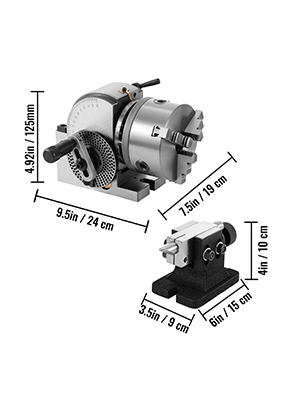

| Headstock Dimensions | 9.5″ x 7.5″ x 6.5″ ( 24 x 19 x 16.5 cm) |
| Tailstock Dimensions | 3.5″ x 6″ x 4″ (9 x 15 x 10 cm) |
Detailed Overview
BS-0 Precision Dividing Head
MT2 Headstock Taper & Complete Set & Simple Operation
The indexing head doesn’t only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.
- Solid Cast Iron Construction
- Adjustable Dividing Head
- High Precision Indexing Plate
- Strong Workpiece Support
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

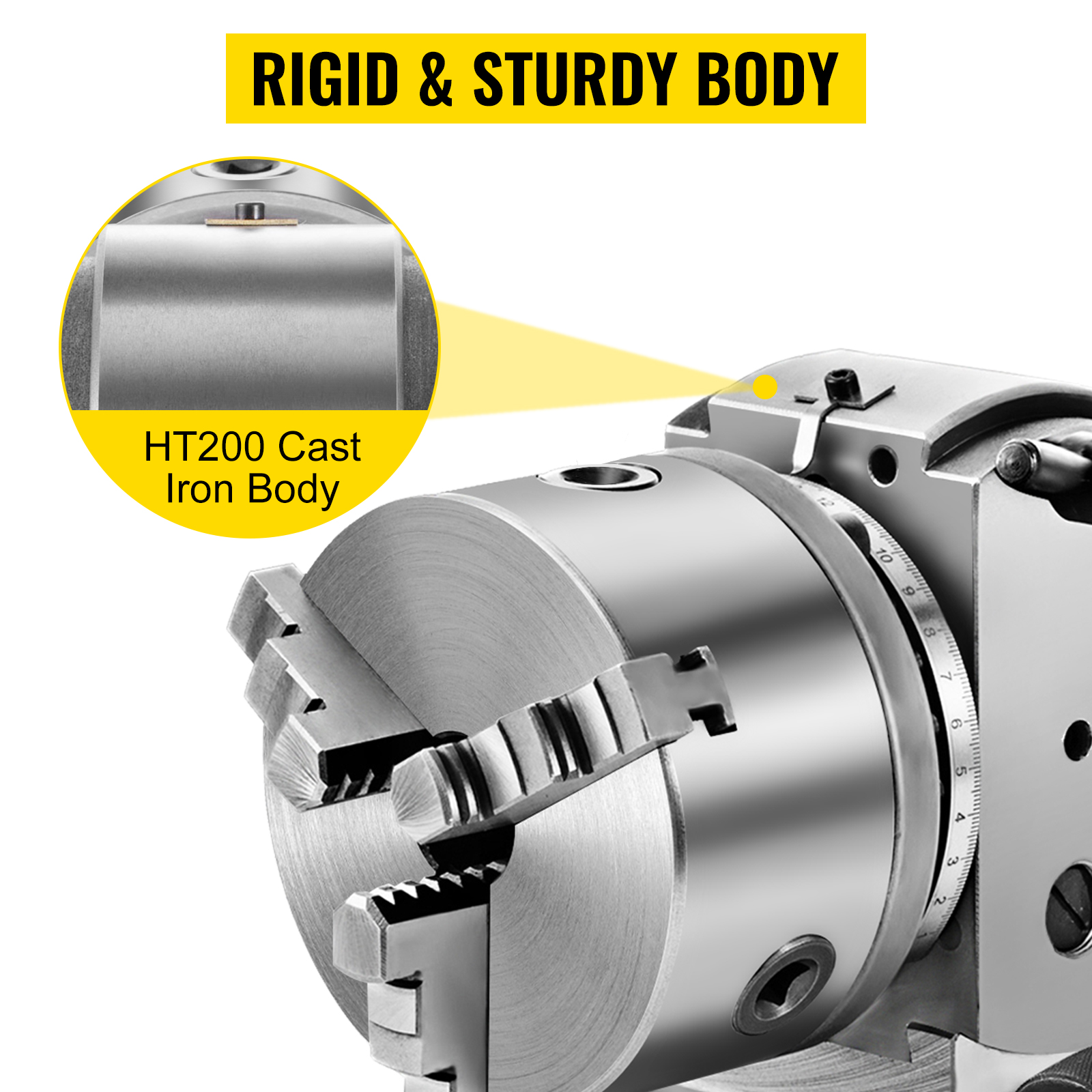

Rigid & Sturdy Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that is wear-resistant and tear-resistant and looks low-profile.

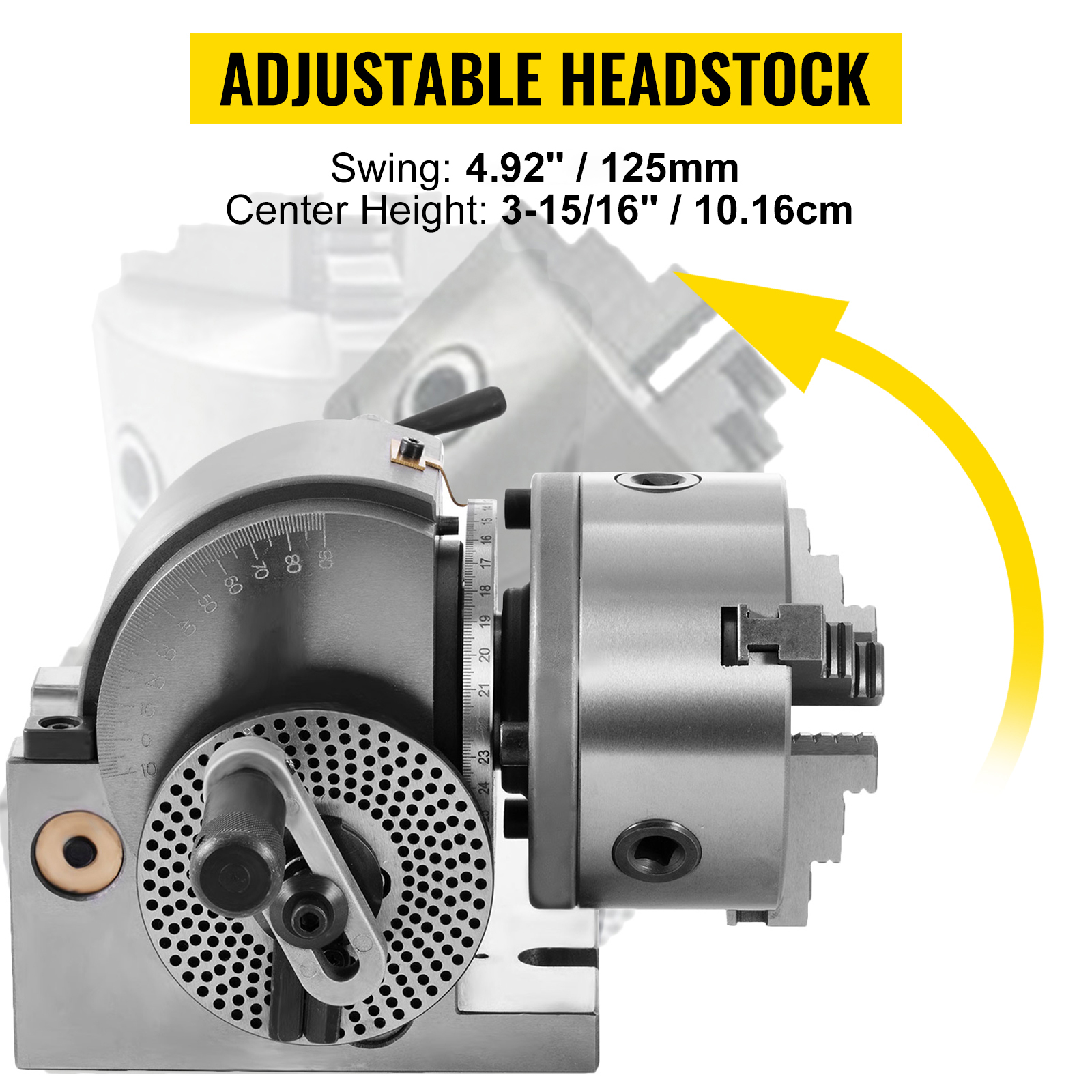

Adjustable Headstock
The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.

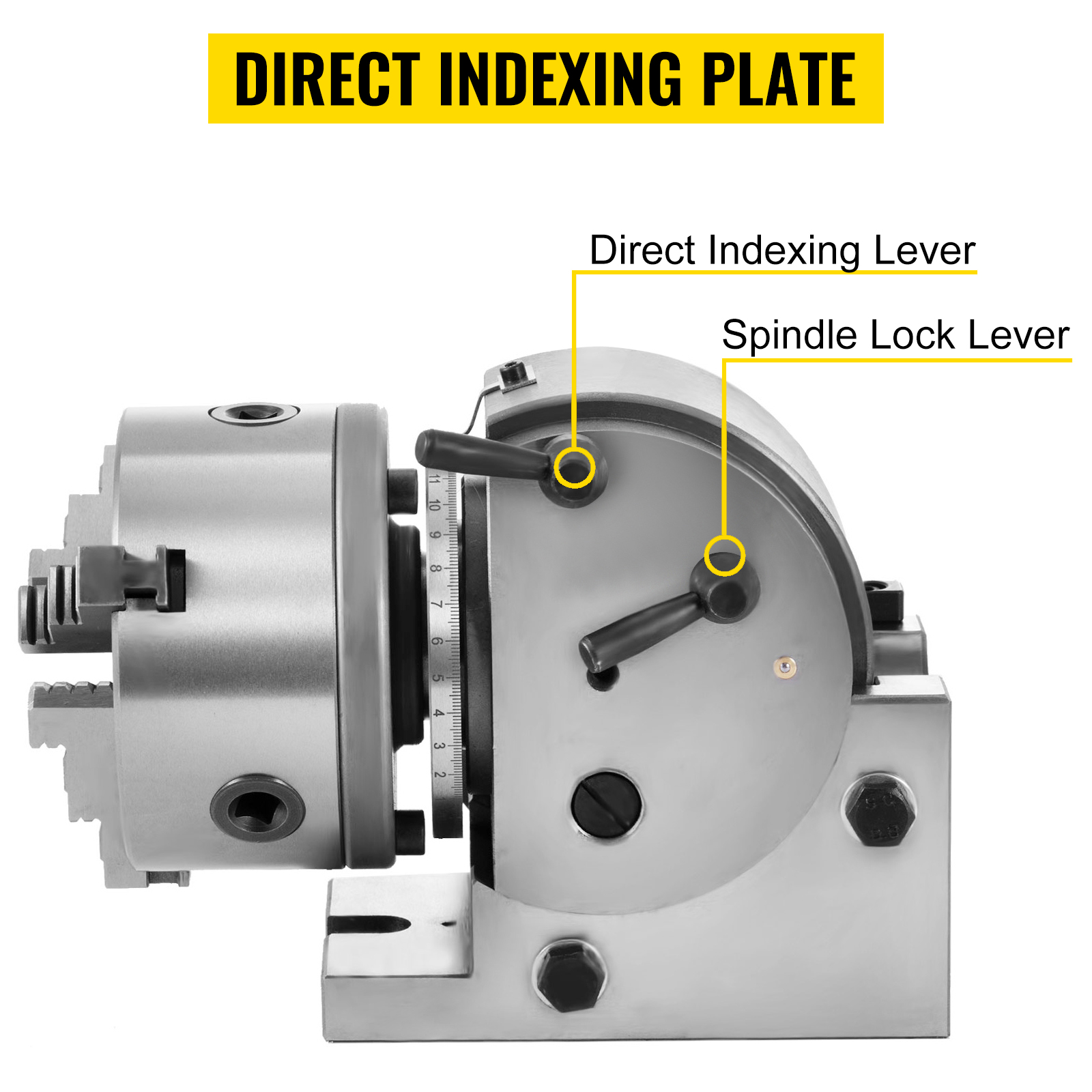

Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.

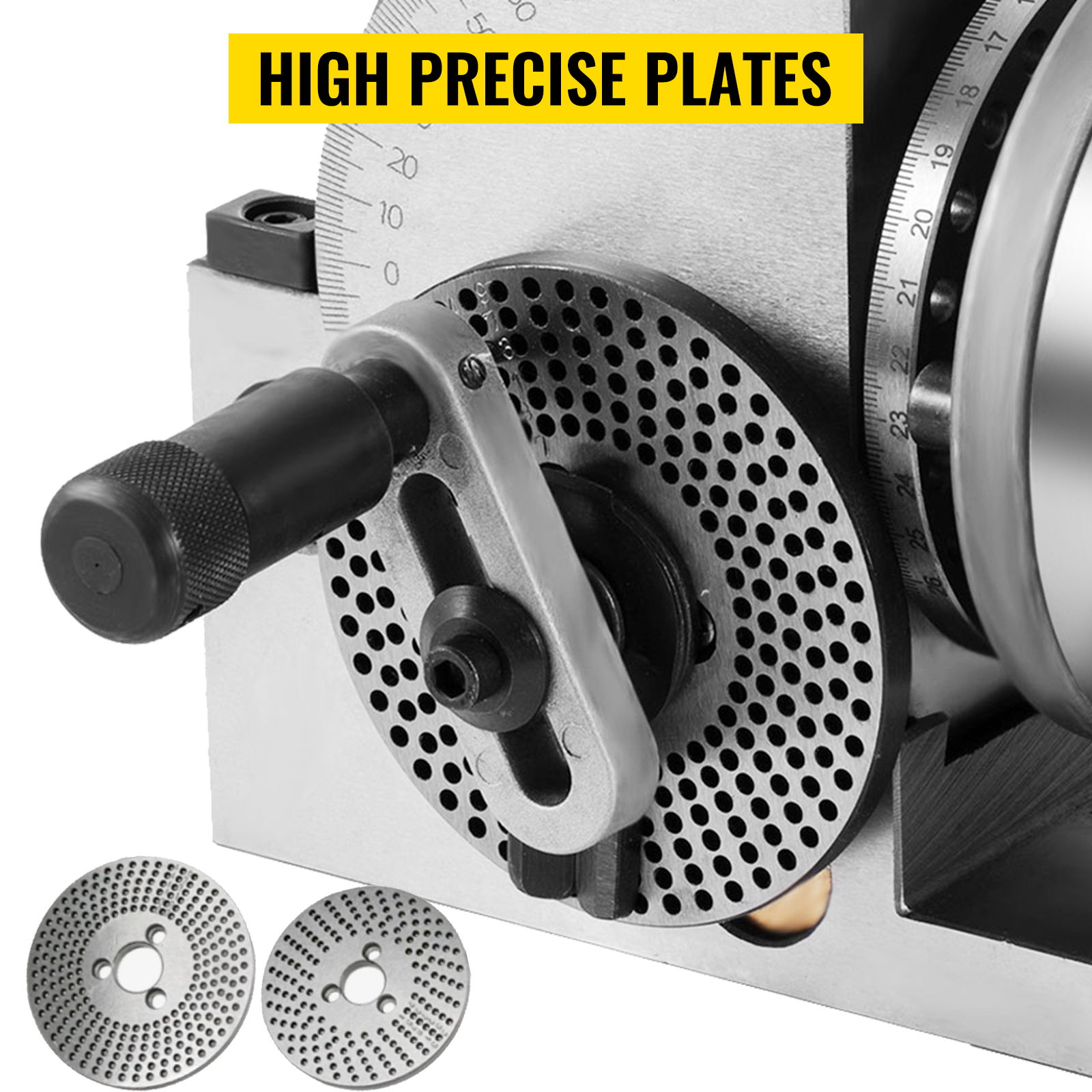

More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.

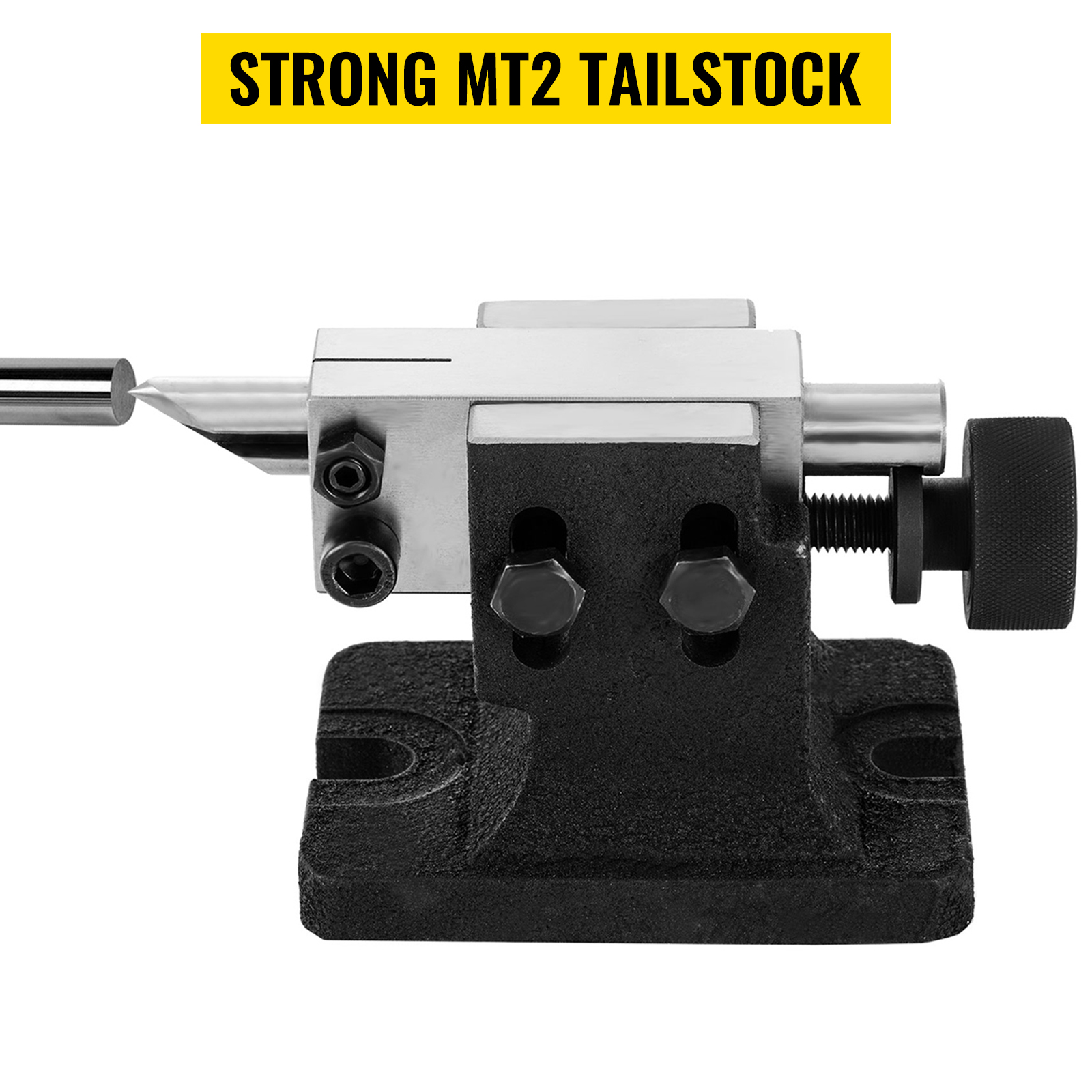

Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.

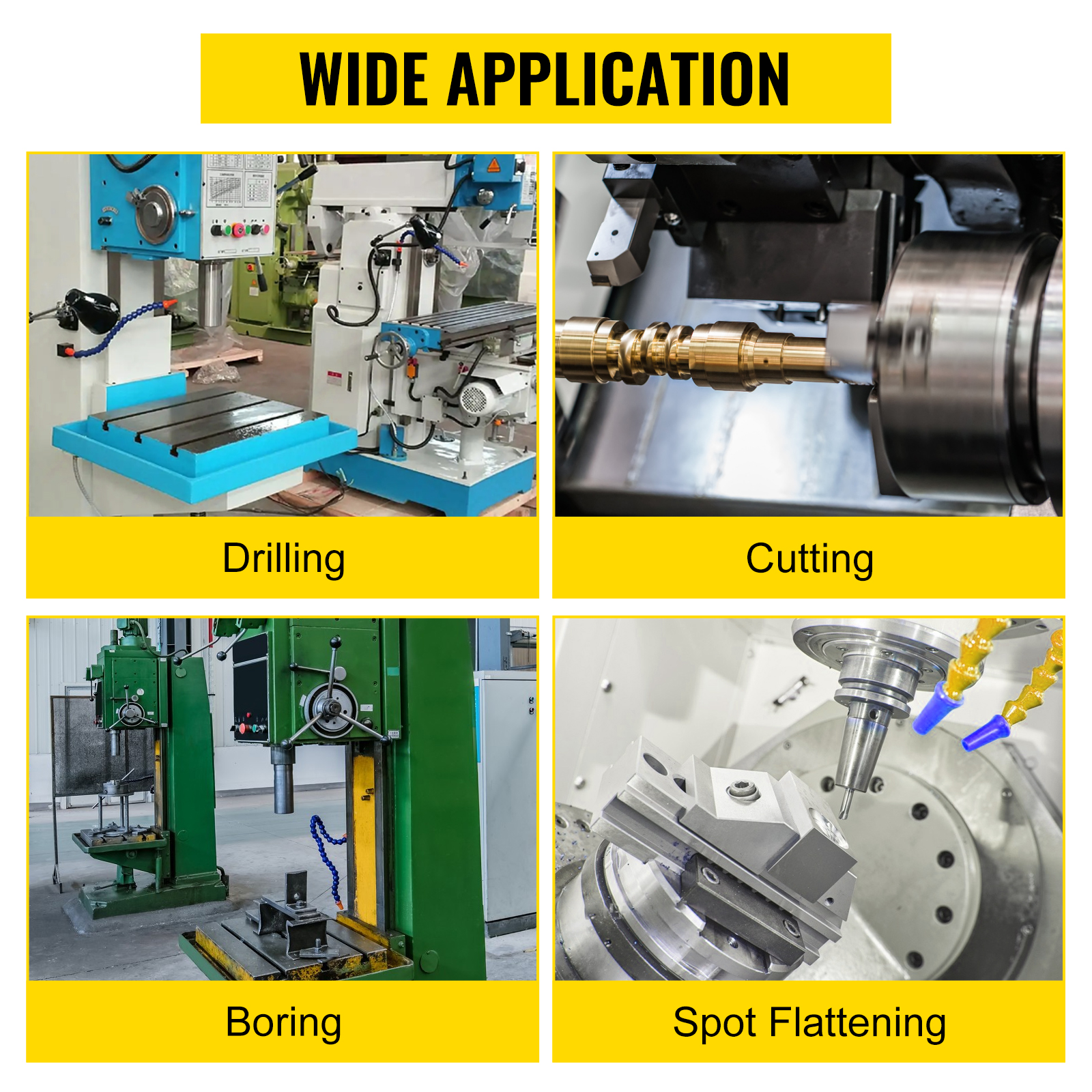

Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
Specifications
- Swing: 6-1/2″ (16.5 cm)
- Center Height: 3-15/16″ (10 cm)
- Headstock Taper: MT2
- Net Weight: 50.7 lbs (23 kg)
- Headstock Dimensions: 9.5″ x 7.5″ x 6.5″ ( 24 x 19 x 16.5 cm)
- Tailstock Dimensions: 3.5″ x 6″ x 4″ (9 x 15 x 10 cm)

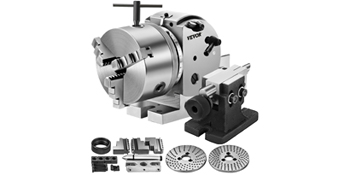

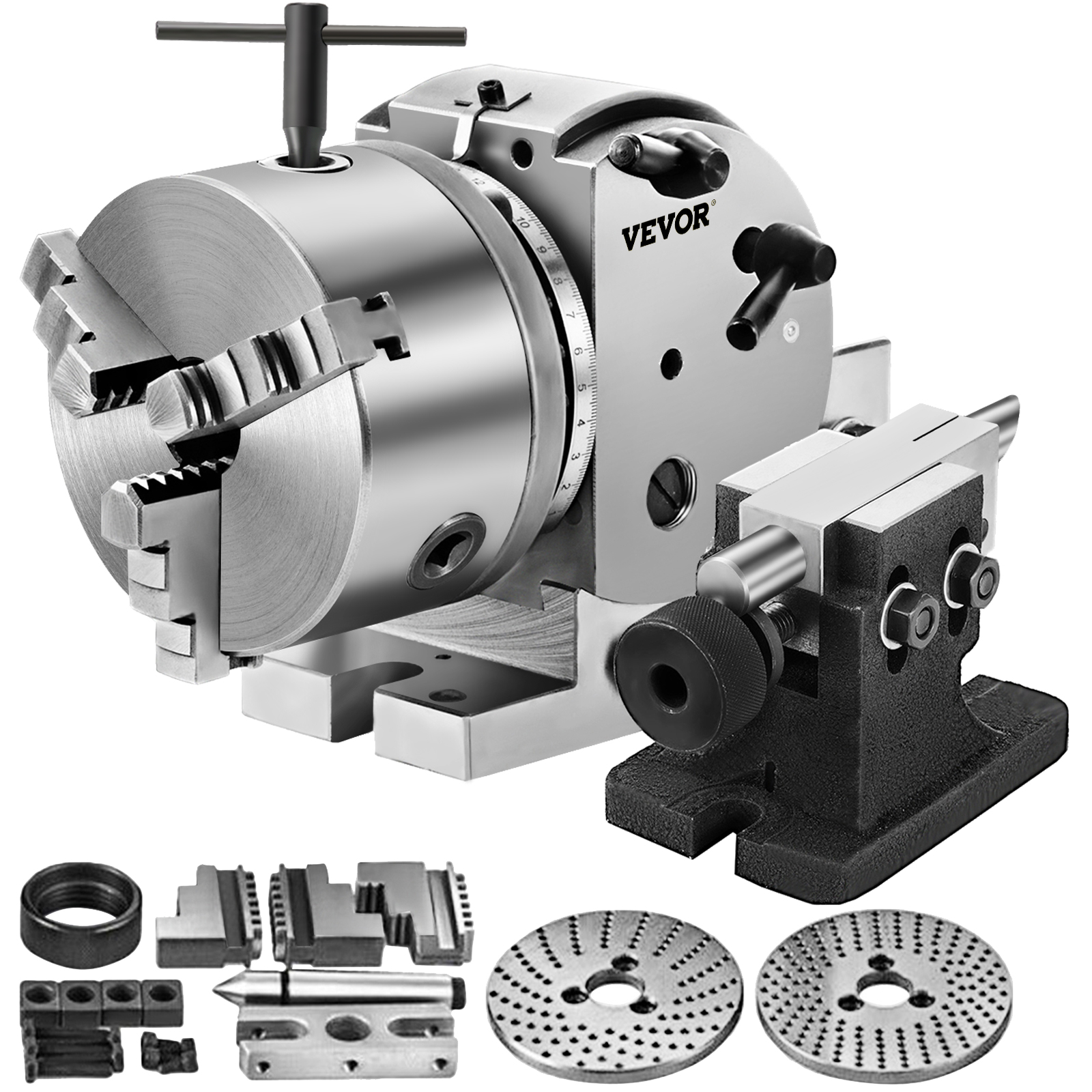

Package Content
- 1 x Dividing Head
- 3 x Dividing Plates
- 1 x Tailstock
- 1 x 125 mm 3-Jaw Chuck
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
BS-0 Precision Dividing Head
MT2 Headstock Taper & Complete Set & Simple Operation
The indexing head doesn’t only look great but allows you to do more with your milling machine: measuring specific angles and dividing a circle into equidistant arcs. It comes with 3 interchangeable indexing plates and a tailstock to ensure more precise and stable work. It will be your perfect assistant to machine the flutes of a milling cutter, cut the teeth of a gear, curved mill slots, or drill a bolt hole circle around the circumference of a part.
- Solid Cast Iron Construction
- Adjustable Dividing Head
- High Precision Indexing Plate
- Strong Workpiece Support
Rigid & Sturdy Body
The indexing head features a long service life due to its rigid quality. It is designed with a mirror finish that is wear-resistant and tear-resistant and looks low-profile.
Adjustable Headstock
The dividing head is enabled to tilt from 10 degrees below horizontal to 90 degrees vertical. And that will be convenient if you want to cut the part from a certain angle.
Direct Indexing Plate
By turning the 1st level that extrudes the pin, the pin goes into the plate and you can divide the full circle into 2, 3, 4, 6, 8, 12, or 24 divisions. The other level prevents the spindle from vibrating during machining.
More Precise Plates
The high precision performance of the indexing head is achieved with indirect indexing plates A, B, and C. All divisions 2-50 can be done, but some from 51 to 380 cannot be obtained. Check the manual before setting.
Strong MT2 Tailstock
The MT2 tailstock gives strong support to the workpiece being machined. It is particularly useful when the workpiece is relatively long and slender.
Wide Application
The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
Package Content
- 1 x Dividing Head
- 3 x Dividing Plates
- 1 x Tailstock
- 1 x 125 mm 3-Jaw Chuck
Specifications
- Swing: 6-1/2″ (16.5 cm)
- Center Height: 3-15/16″ (10 cm)
- Headstock Taper: MT2
- Net Weight: 50.7 lbs (23 kg)
- Headstock Dimensions: 9.5″ x 7.5″ x 6.5″ ( 24 x 19 x 16.5 cm)
- Tailstock Dimensions: 3.5″ x 6″ x 4″ (9 x 15 x 10 cm)
