Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Sturdy Iron Construction: The mini metal lathe bed is made of high-grade iron. Equipped with nylon gears, this lathe machine is wear-resistant, sturdy, and professional. Mini metal lathe power of motor: 400W. The full-length splash guard provides maximum protection.
- Infinitely Variable Speed: Variable speed from 50-2250 RPM. Forward and reverse at all speeds. Operate either manually or with the adjustable auto feed rate. The hardness and accuracy of the sideways are obtained by raw material, heat hardening and grinding. The emergency stop button included.
- Accurate 3-Jaw Chuck: 3-jaw self-centering chuck for setting materials steadily. Backsplash guard included. The spindle is supported by precision tapered roller bearings, spindle accuracy within 0.01 mm.
- Professional Compound Rest: The mini metal lathe quick change tool post can achieve positions of internal cutting, face cutting, and bevel cutting by changing the tool post angle and adjusting the compound rest. The professional slide is designed with abrasive resistance, moving blades freely with a feed rod.
- Extensive Application: Driven by the quality motor, this mini metal lathe cut off tool can be used in areas such as mini precision parts processing, sample processing, and modeling works. It is suitable for processing jobs, like drilling, milling, threading and cutting jobs on kinds of materials.
Technical Specifications
| Volt | 110V 60 Hz |
|---|---|
| Motor Power | 400W |
| Motor Type | Brushed |
| Phase | Single Phase |
| Variable Speed Gear | Plastic Nylon |
| Certification | CE |
| Swing Over Bed | 7″ / 180 mm |
| Distance Between Centers | 11.8″ / 300 mm |
| Spindle Accuracy | 0.0004″ / 0.01 mm |
| Spindle Speed | 50 – 2250 RPM |
| Spindle Bore | 0.83″ / 21 mm |
| Tail Stock Taper | MT2 |
| Spindle Taper | MT3 |
| Top Slide Travel | 1.38″ / 35 mm |
| Cross Slide Travel | 2.56″ / 65 mm |
| Net Weight | 102.5 lbs / 46.5 kg |

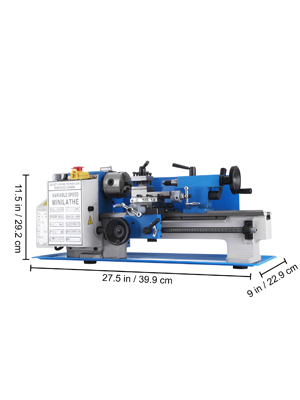

| Item Dimensions (L x W x H) | 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm |
Detailed Overview
7” x 12” Metal Lathe Machine
400W Powerful Motor & MT3 Spindle & 0.01 mm Spindle Accuracy
The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed
- Sturdy Iron Construction
- Infinitely Variable Speed
- Accurate 3-Jaw Chuck
- Professional Compound Rest
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service

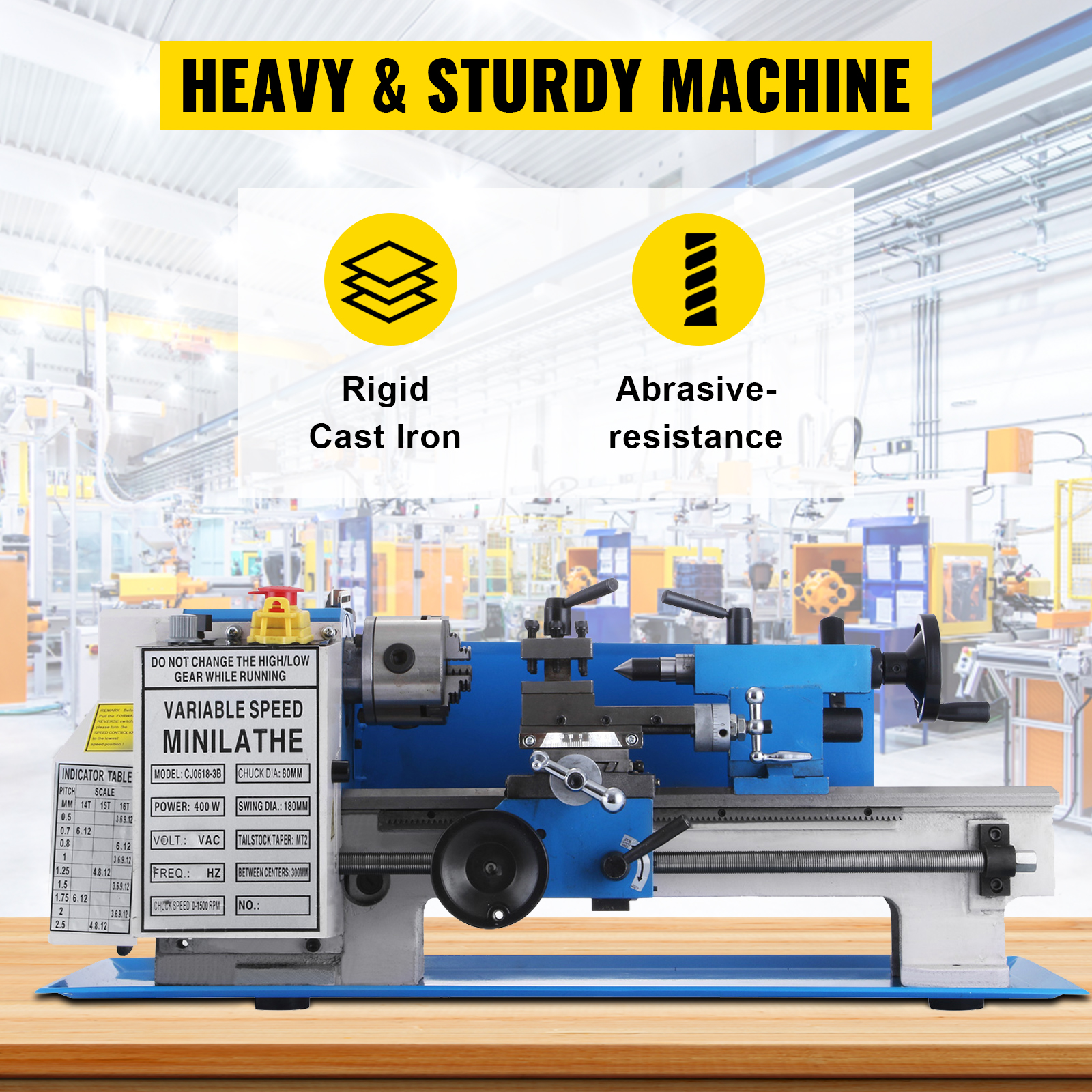

Heavy & Sturdy Machine
Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.
Infinitely Variable Speeds
Variable speed: 50-2250 RPM. You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.
Four-way Tool Post
T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.

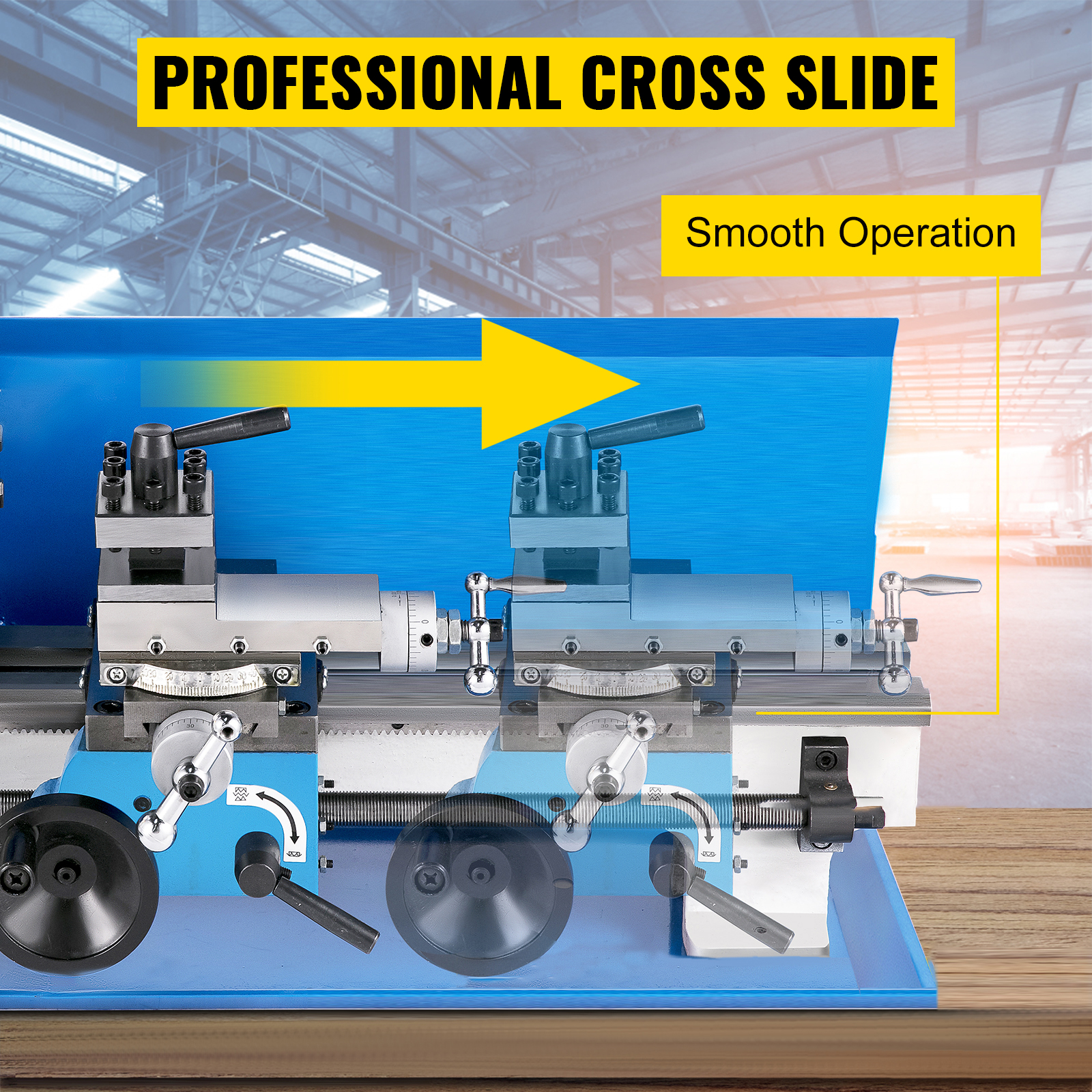

Professional Cross Slide
Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12″ / 300 mm, large workspace for more facilitate.

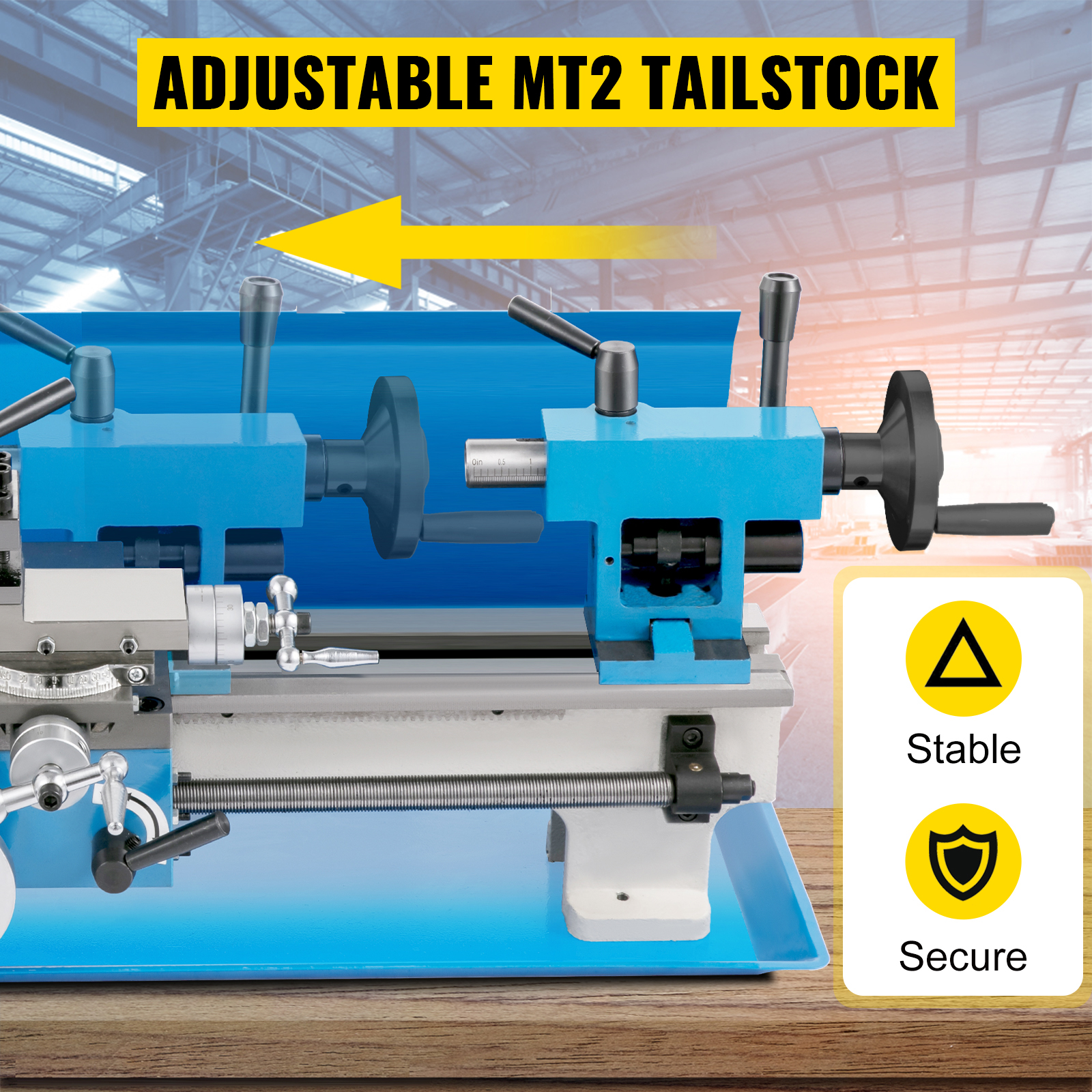

Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.
Specifications
- Volt: 110V 60 Hz
- Motor Power: 400W
- Motor Type: Brushed
- Phase: Single Phase
- Variable Speed Gear: Plastic Nylon
- Certification: CE
- Swing Over Bed: 7″ / 180 mm
- Distance Between Centers: 11.8″ / 300 mm
- Spindle Accuracy: 0.0004″ / 0.01 mm
- Spindle Speed: 50 – 2250 RPM
- Spindle Bore: 0.83″ / 21 mm
- Tail Stock Taper: MT2
- Spindle Taper: MT3
- Top Slide Travel: 1.38″ / 35 mm
- Cross Slide Travel: 2.56″ / 65 mm
- Net Weight: 102.5 lbs / 46.5 kg
- Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm

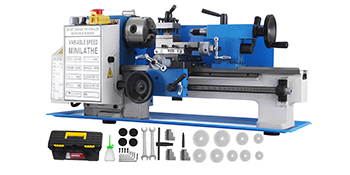

Package Content
- 1 x Mini Lathe
- 1 x Chuck Wrench
- 2 x Wrenches
- 3 x Chuck Jaws
- 9 x Nylon Gears
- 1 x Oil Can
- 5 x Hex Wrenches
- 1 x Dead Center
- 1 x Chuck Claw
- 1 x Protecting Mask
- 4 x Shockproof Foot Cushions
- 1 x Toolkit
- 1 x Instruction Manual
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR has occupied markets of more than 200 countries with 10 million plus global members.
Why Choose VEVOR?
- Premium Tough Quality
- Incredibly Low Prices
- Fast & Secure Delivery
- 30-Day Free Returns
- 24/7 Attentive Service
7” x 12” Metal Lathe Machine
400W Powerful Motor & MT3 Spindle & 0.01 mm Spindle Accuracy
The precision mini bench top lathe features a 3-jaw chuck, a spindle taper, a tailstock taper, a tool rest and a quality motor, designed to perform various types of metal turning, simple to operate through high-frequency quenching process and precision grinding of high-quality cast iron bed
- Sturdy Iron Construction
- Infinitely Variable Speed
- Accurate 3-Jaw Chuck
- Professional Compound Rest
Heavy & Sturdy Machine
Features with high quality iron material, this heavy-duty metal lathe is designed for durability and longevity.
Infinitely Variable Speeds
Variable speed: 50-2250 RPM. You can operate this bench top lathe manually. The feed speed can be adjusted according to the requirements of different workpieces.
High Accuracy Chuck
3-jaw self-centering chuck has gone tested with accuracy and repeatability to set materials steadily. The spindle is supported by precision tapered roller bearings.
Four-way Tool Post
T-slotted compound slide with 4-way tool post, easy to change quickly. Bevel cutting can be made by adjusting the angle of the compound rest with the lever.
Professional Cross Slide
Our lathe is designed with abrasive resistance, moving blades optionally with feed rod. The slide ways with a distance between center is 12″ / 300 mm, large workspace for more facilitate.
Adjustable MT2 Tailstock
The tailstock is compatible with MT2 taper, slides along the way to support your workpieces of varying lengths, ensuring stable and secure operation. All accessories are well-packed.
Package Content
- 1 x Mini Lathe
- 1 x Chuck Wrench
- 2 x Wrenches
- 3 x Chuck Jaws
- 9 x Nylon Gears
- 1 x Oil Can
- 5 x Hex Wrenches
- 1 x Dead Center
- 1 x Chuck Claw
- 1 x Protecting Mask
- 4 x Shockproof Foot Cushions
- 1 x Toolkit
- 1 x Instruction Manual
Specifications
- Volt: 110V 60 Hz
- Motor Power: 400W
- Motor Type: Brushed
- Phase: Single Phase
- Variable Speed Gear: Plastic Nylon
- Certification: CE
- Swing Over Bed: 7″ / 180 mm
- Distance Between Centers: 11.8″ / 300 mm
- Spindle Accuracy: 0.0004″ / 0.01 mm
- Spindle Speed: 50 – 2250 RPM
- Spindle Bore: 0.83″ / 21 mm
- Tail Stock Taper: MT2
- Spindle Taper: MT3
- Top Slide Travel: 1.38″ / 35 mm
- Cross Slide Travel: 2.56″ / 65 mm
- Net Weight: 102.5 lbs / 46.5 kg
- Item Dimensions (L x W x H): 27.5 x 9 x 11.5 in / 69.9 x 22.9 x 29.2 cm
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
This lathe is surprisingly capable, and the few things “wrong” with it respond well to a little cleaning, adjusting, tightening, etc.
It’s not really powerful, and although it turns aluminum and plastic without complaint, steel is a lot of work and aggressive cutting is not going to happen. Also, I don’t make much use of the auto-feed; certainly not for thread-cutting, and only rarely for finish-quality feeding. The gears there are plastic, and I have not put them to the test in any way. Metal-gear kits are available, as are many other after-market mini-lathe accessories.
Verified Customer –
Pretty good for the price. Takes a little while to tighten everything up, but is [email protected] it says it is
Verified Customer –
Overall good product, had one minor issue when the item arrived, the magnet for the RPM sensor was missing, I contacted customer support and they took care of the issue by sending me not one replacement magnet, but grisly sent me 5. I would recommend this induct.
Verified Customer –
Works great! Definitely worth the money
Verified Customer –
Works well. However, a lot of components on the lathe are loose when you receive it, so it’s definitely necessary to go through and tighten everything up before use. The belt is of low quality. I would recommend finding a better belt or using the lathe to make V-groove pulleys, allowing you to run a V-groove belt. The product description lists the tail stock as MT3, but it is not an MT3. It is an MT2. I emailed customer service and told them they need to change the description.
Verified Customer –
Working very well, love it
Verified Customer –
Ok overall. Worth the price. Can only chuck material less than 1.5 inch. Need different chuck for larger material. Haven’t looked into that yet.
Verified Customer –
Perfect machine for the DIYer to make small precision parts. If you have the ability to imagine it ,and the technical skills to do it, you can accomplish some really amazing stuff on this small compact lathe. It is powerful and accurate and very versatile. For those who need a great little machine to create things on I can most heartily recommend this unit as one of the best home shop investments I’ve ever made. Most highly recommended.
Verified Customer –
Very good
Verified Customer –
I’ve used the lathe a few times for simple fabrication/modification projects. I like it and it meets my needs.
