Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Efficient Sanding: Powered by a 1.5HP powerful motor at 1720 RPM, this VEVOR 16" drum sander with open stand delivers consistent, high-efficiency sanding. Handles boards up to 16" wide and 1/32"–3" thick for smooth finishing and fine results
- Stable Conveying: The conveyor belt tracker prevents deviation, ensuring boards move smoothly with greater stability and precision. Variable speed control lets you adjust feed rate to match different wood types and sizes for efficient and uniform sanding
- Maximum Efficiency: Built with an independent dual motor system, the direct drive motor delivers strong, consistent sanding power, while the gear reduction motor ensures precise conveying for smoother, professional-grade sanding performance
- Expanded Sanding Capacity: Equipped with 2 extension table assemblies, this drum sanding machine provides stable support, preventing large or long workpieces from wobbling. Easy to install or remove, it handles both small and oversized boards with ease
- Great Convenience: Features a 4-inch dust collection port to capture dust for a cleaner workspace, mobile wheels for easy movement, a height adjustment handwheel to handle different board thicknesses, and a stable open stand for reliable support

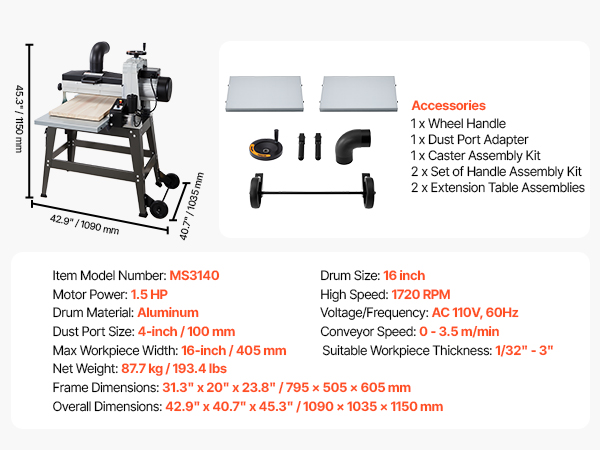

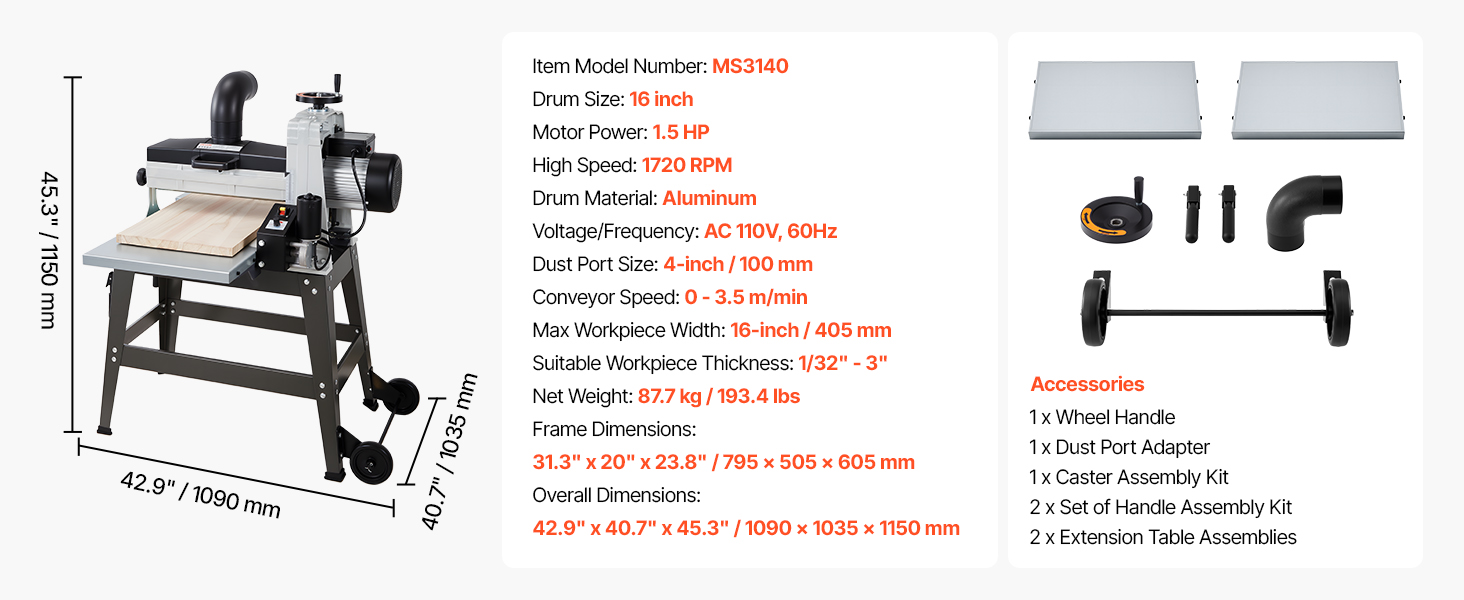

Technical Specifications
| Item Model Number | MS3140 |
|---|---|
| Drum Size | 16 inch |
| Motor Power | 1.5 HP |
| High Speed | 1720 RPM |
| Drum Material | Aluminum |
| Voltage/Frequency | AC 110V, 60Hz |
| Dust Port Size | 4-inch / 100 mm |
| Conveyor Speed | 0 – 3.5 m/min |
| Max Workpiece Width | 16-inch / 405 mm |
| Suitable Workpiece Thickness | 1/32″ – 3″ |
| Net Weight | 87.7 kg / 193.4 lbs |
| Frame Dimensions | 31.3″ x 20″ x 23.8″ / 795 x 505 x 605 mm |
| Overall Dimensions | 42.9″ x 40.7″ x 45.3″ / 1090 x 1035 x 1150 mm |
Detailed Overview
High-Efficiency Sanding for Professional Finishes

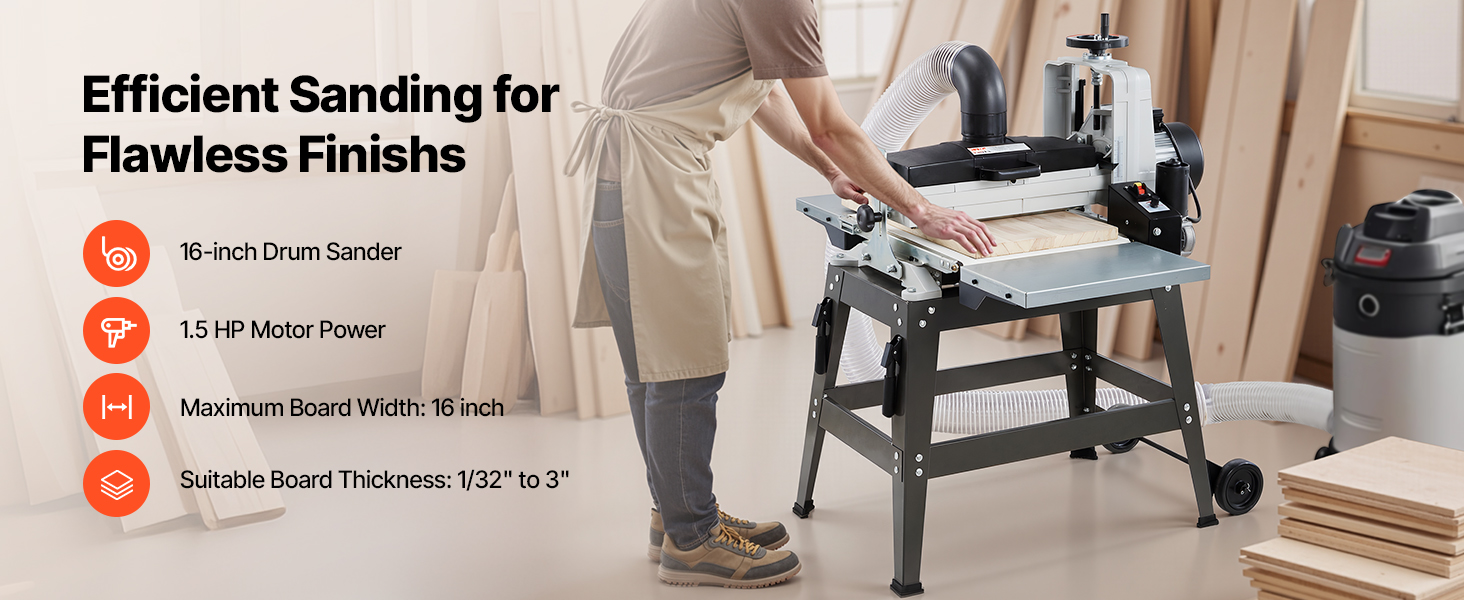

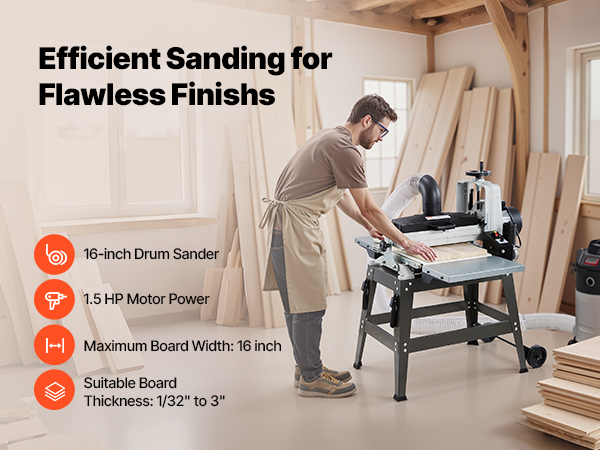

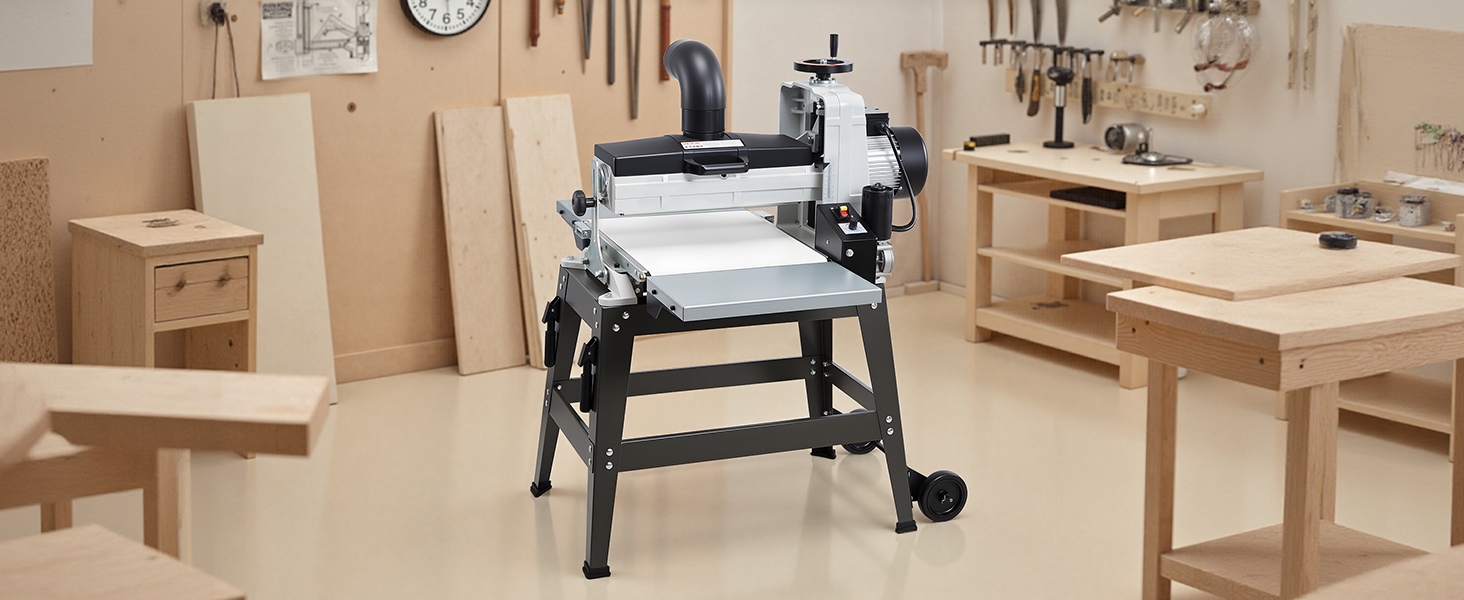

Our 16″ drum sander is powered by a strong 1.5 HP motor running at 1720 RPM. The independent dual motor system, variable conveyor speed control, and extension tables handle boards up to 16″ wide with ease. Perfect for DIY users and professional woodworkers seeking smooth, precise finishes.

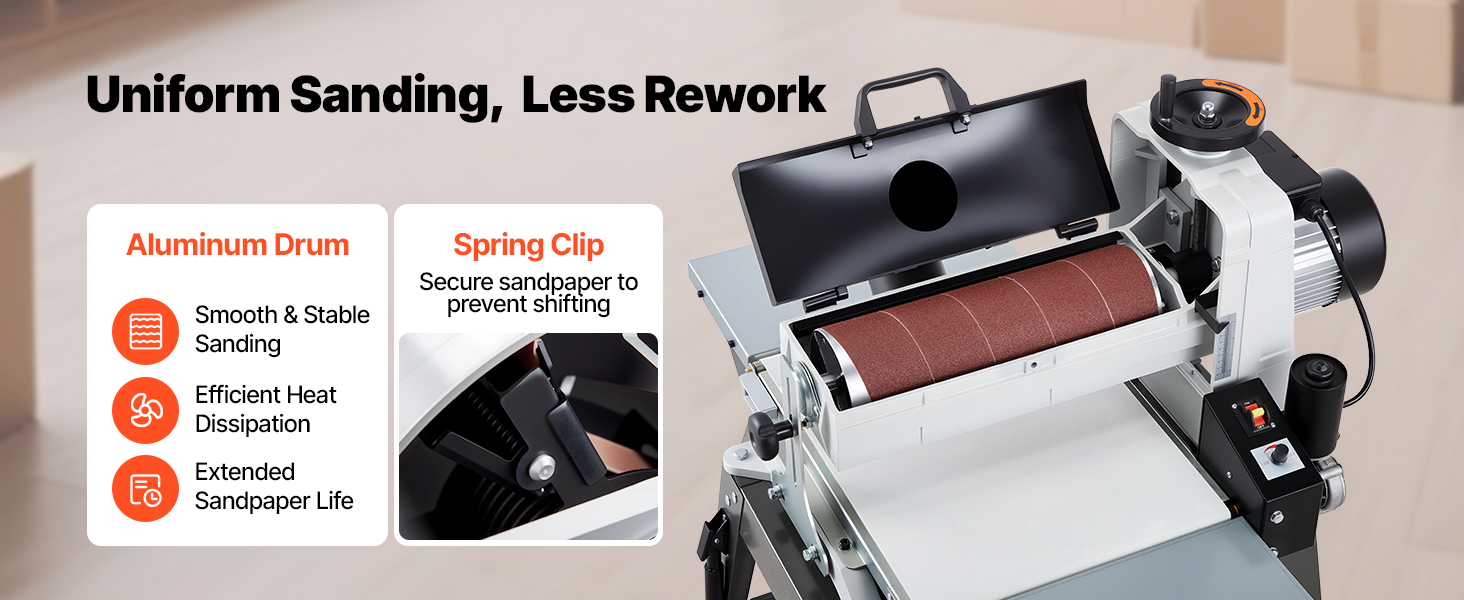

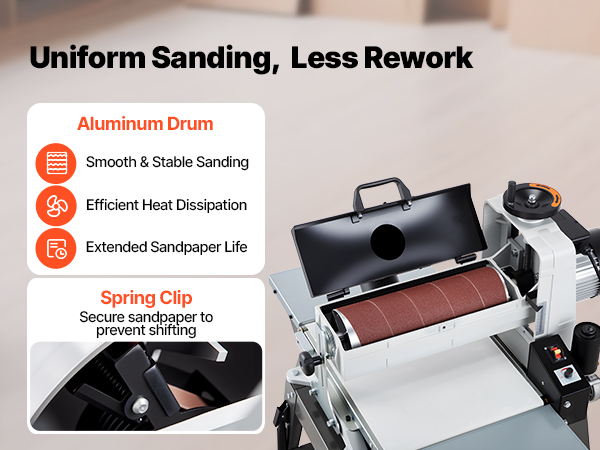

The aluminum drum provides smooth, consistent sanding while efficiently dissipating heat, extending the life of both the machine and sandpaper. And the spring clip secures the sandpaper firmly for precise and efficient sanding.

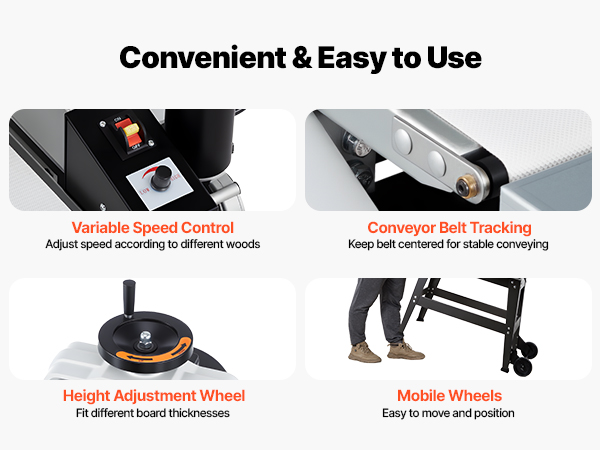

Features variable conveyor speed control, smooth conveying, adjustable height, easy mobility and extension tables — delivering stable operation and professional sanding results.

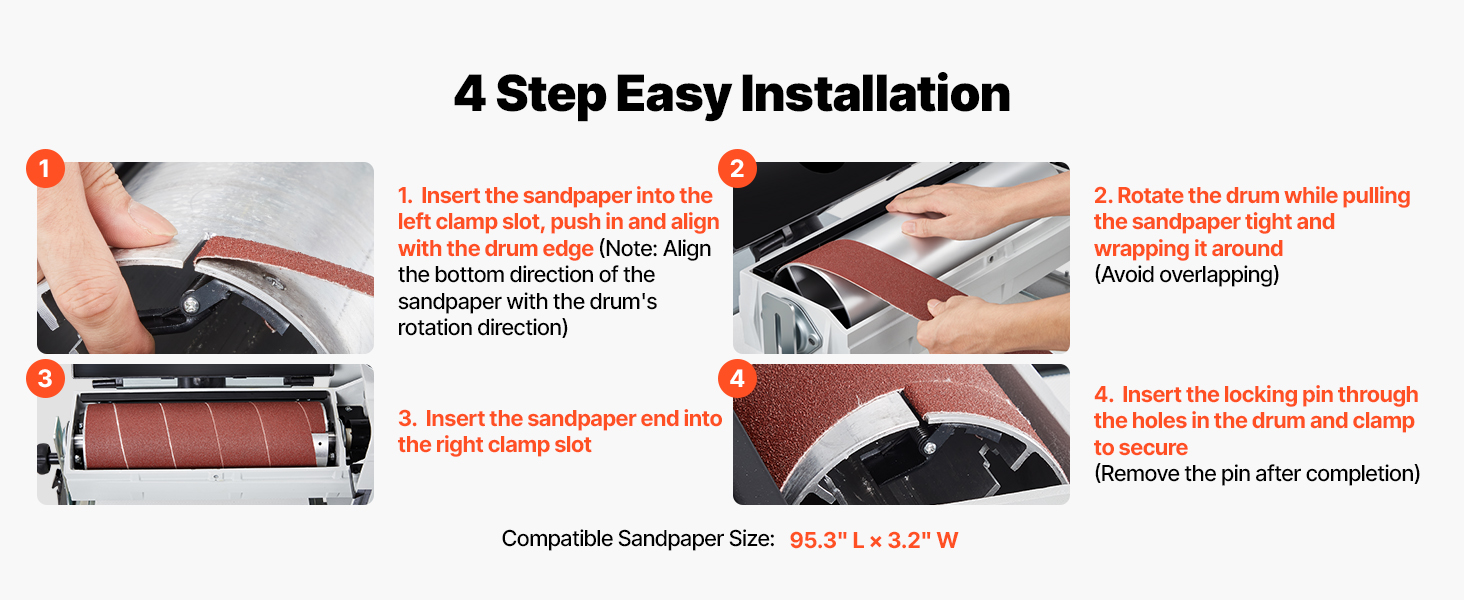

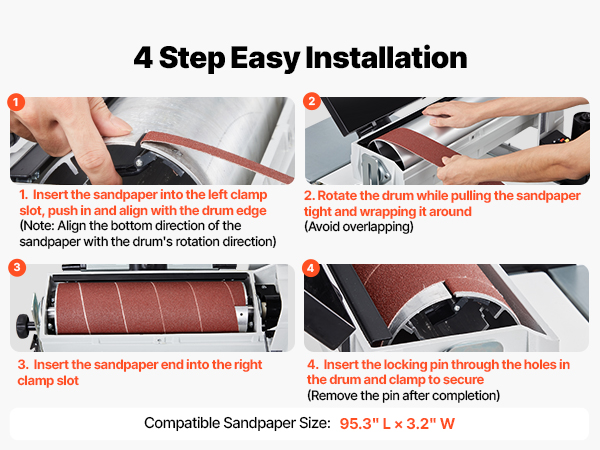

We provide a detailed sandpaper installation guide. Simply secure the sandpaper with the spring clip for secure installation onto the drum. Compatible sandpaper size: 95.3″ L x 3.2″ W.
Suitable for furniture manufacturing, cabinet making, door panel finishing, and various wood sanding tasks. Whether in personal workshops or professional woodworking settings, this drum sander delivers efficient and stable sanding support.
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
Great drum sander, it is easy to put together but I would recommend an extra set of hands because it is all there. It comes with a send of sandpaper and as of yet I have not had the need to replace it, however I do use a cleaning stick to keep the paper clean. Set up was a breeze and the open side is great for larger projects.
Verified Customer –
I got this when it was on sale, couldn’t be happier. Great tool.
Verified Customer –
Very useful sander. Since I work with figured woods this drum sander works out better than a planer.
Verified Customer –
This is a great tool. Although it is very heavy, it was otherwise fairly easy to assemble. Only the stand requires assembly and the sander needs to be bolted to it. All the holes lined up!
Among the things I have used it for is to sand an end grain butcher block cutting board. I turned out perfect. The drum sander works far better than a planer on end grain. It is also better than a planer for taking off very small amounts of thickness.
Verified Customer –
I’m impressed with the VELOR 10″ Benchtop Drum Sander. Overall quality was quite good. The sander arrived in a sturdy wooden box with large wood block feet, which made it easy to move with a dolly. At 170 lbs, it’s a heavy machine, and this packaging design was a huge help. Inside, the sander was almost completely assembled and adjusted. All I had to do was unbolt it from the crate, attach the adjustment dial, and it was ready to plug in. The instruction manual was easy to read and fairly complete. It came with one sheet of sandpaper pre-installed. If you’re ordering this, you may want to order a few extra sheets with different grit at the same time. My first test was sanding my giant Jenga set which consist of 30 2 x 4’s. The process was incredibly straightforward. After finding the initial thickness, I passed each board through once on each side. Then, a simple quarter-turn of the depth adjustment dial was all that was needed for the next pass. The depth adjustment was precise and stable. The feed speed I set was a little too fast for the material, and the internal breaker tripped, which is exactly what it’s designed to do. The nice thing is the instruction manual warned about this, it was quick to identify the issue and resolve it by reducing the feed rate. I slowed the feed rate slightly and ran all the remaining pieces through multiple times without a single issue. The results were smooth and consistent. While I haven’t needed to change the sandpaper yet, I did remove the cover to check. Access is clear and simple, which suggests maintenance will be as easy as the operation This drum sander is a very well-built and heavy-duty drum sander. It’s remarkably easy to set up and use, and the performance is excellent. I am very happy that I ordered this sander and would highly recommend it to anyone looking for a reliable benchtop drum sander.
Verified Customer –
Just received today have not had time to unpack the sander yet but it is packed in a very sturdy wood box. Will write a full review after I have had time to use the sander.
