Description
Great Oak Curated Industrial Equipment:
Part of our industrial collection, selected for durability and performance.
Features & Details
- Powerful & Durable Motor: A 13Amp industrial motor with 5.5J impact energy is designed to complete heavy-duty concrete and metalworking projects quickly and precisely. Heat-resistant copper wire motor allows you to work longer without burning the machine. The max drilling diameter is 1-1/4 inch. 1500W high-performance rotary hammer drill helps increase your efficiency and improve your life.

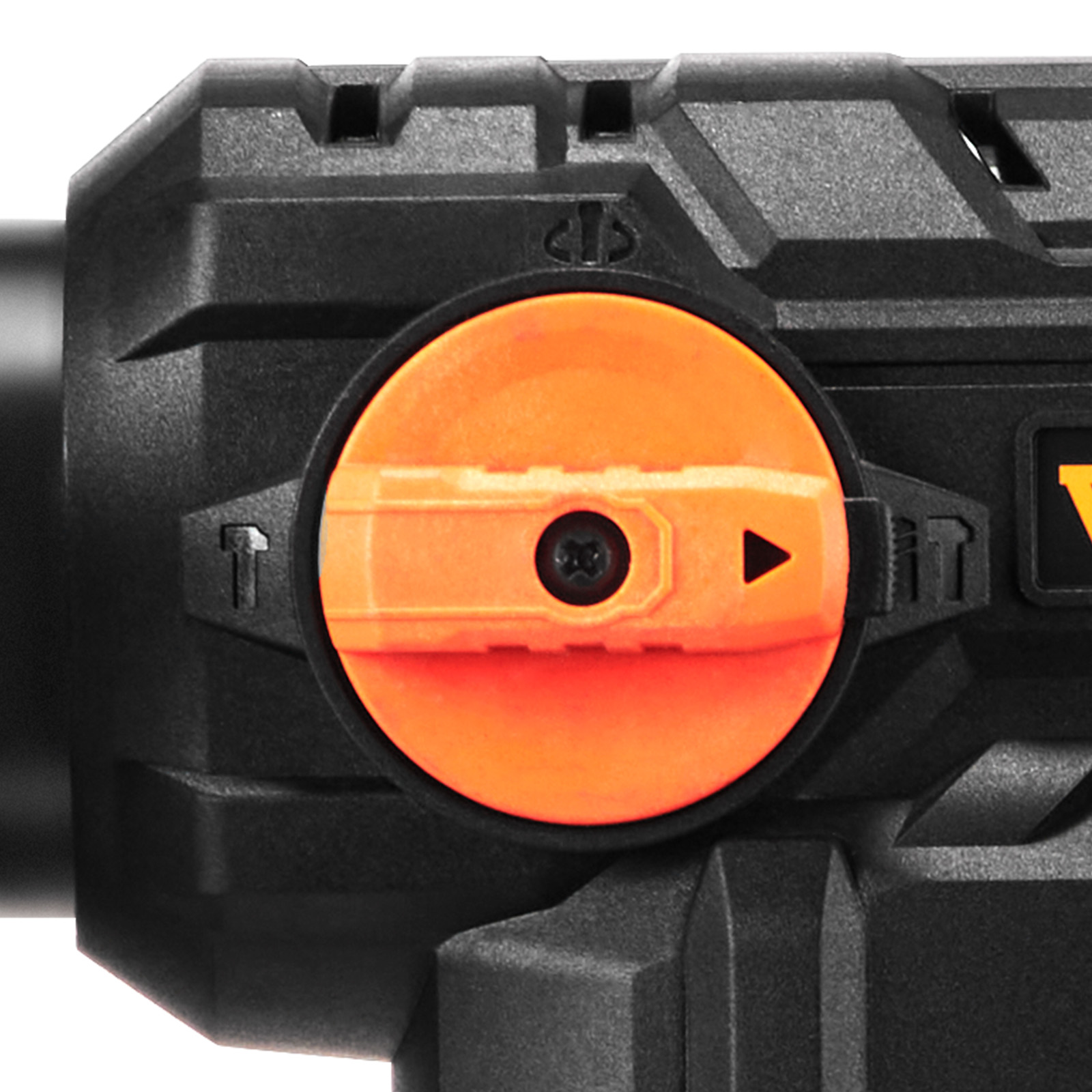

- Choose Between 4 Functions: Drill-only mode (suitable for wood and steel), hammer-only mode (ideal for concrete and brick), hammer-drill function (proper for heavy-duty work), and chisel position adjustment.
- The corded hammer drill features dual switch buttons for function switching, enabling extended operational life compared to single-switch models.
- Adjustable Speed & Vibration Control: The hammer drill for concrete is equipped with a speed control system; you can adjust the speed from 1 to 6 according to your needs. It achieves a no-load speed of 940prm and a maximum impact frequency of 4300bpm. Additionally, the double vibration control design effectively reduces operator fatigue and injury during use. Pound away at the ground and break through any challenges with ease!
- Designed to Go Above and Beyond: The 360° adjustable handle is engineered for enhanced comfort, reduced fatigue, and improved control. The SDS-Plus chuck enables quick, secure bit changes to maintain uninterrupted workflow. A well-designed heat dissipation structure extends the hammer's operational lifespan. Prepare to work with confidence.
- Multifunctional: Our heavy-duty drill set includes:
- 3 pcs drill bits
- 1 pcs flat chisel
- 1 pcs point chisel
- 1 pcs grease
- 2 pcs carbon brushes

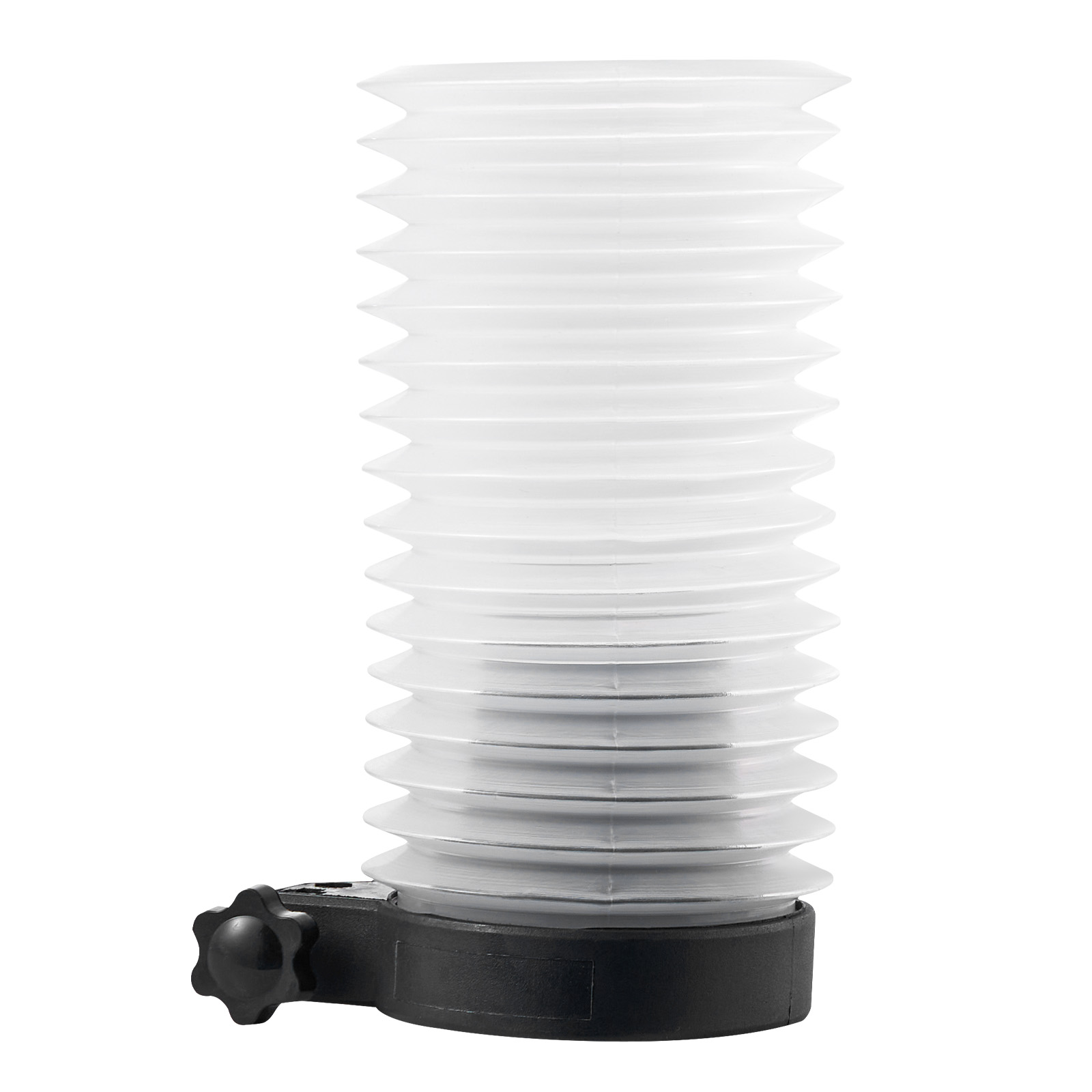

- 1 pcs unique dust cover
- 1 pcs wrench
- 2 pcs depth gauge
- 1 pcs portable carrying case

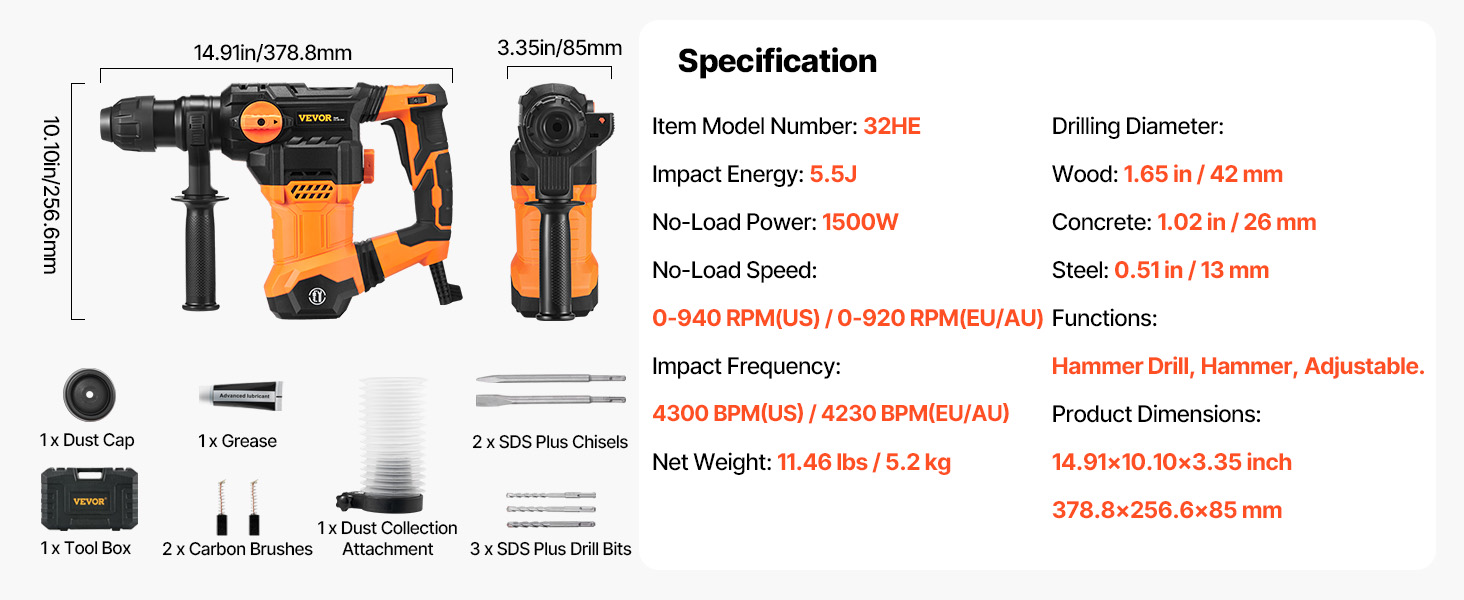

Technical Specifications
| Model | Z1C-DS-32HE |
|---|---|
| Chuck Size | SDS Plus |
| Max Drilling Diameter | 1-1/4″/ 32 mm |
| Current | 13A |
| Impact Energy | 5.5J |
| Motor Power | 1500W |
| Maximum Revolution | 940 R/MIN |
| Max Impact Rate | 4300 BPM |
| Material | Aluminum+Nylon+Glass Fiber |
| Voltage | 110V |
| Item Weight | 11 lbs/ 5 kg |
| Item Size | 15 x 10.1 x 3.3 inch/ 38 x 25.7 x 8.5 cm |
| Case Size | 16.7 x 5.1 x 13.4 inch/ 42.5 x 13 x 34 cm |
| Power Cord Length | 78.7 inch/ 2 m |
| Color | Black & Orange |
Detailed Overview
Rotary Hammer Drill

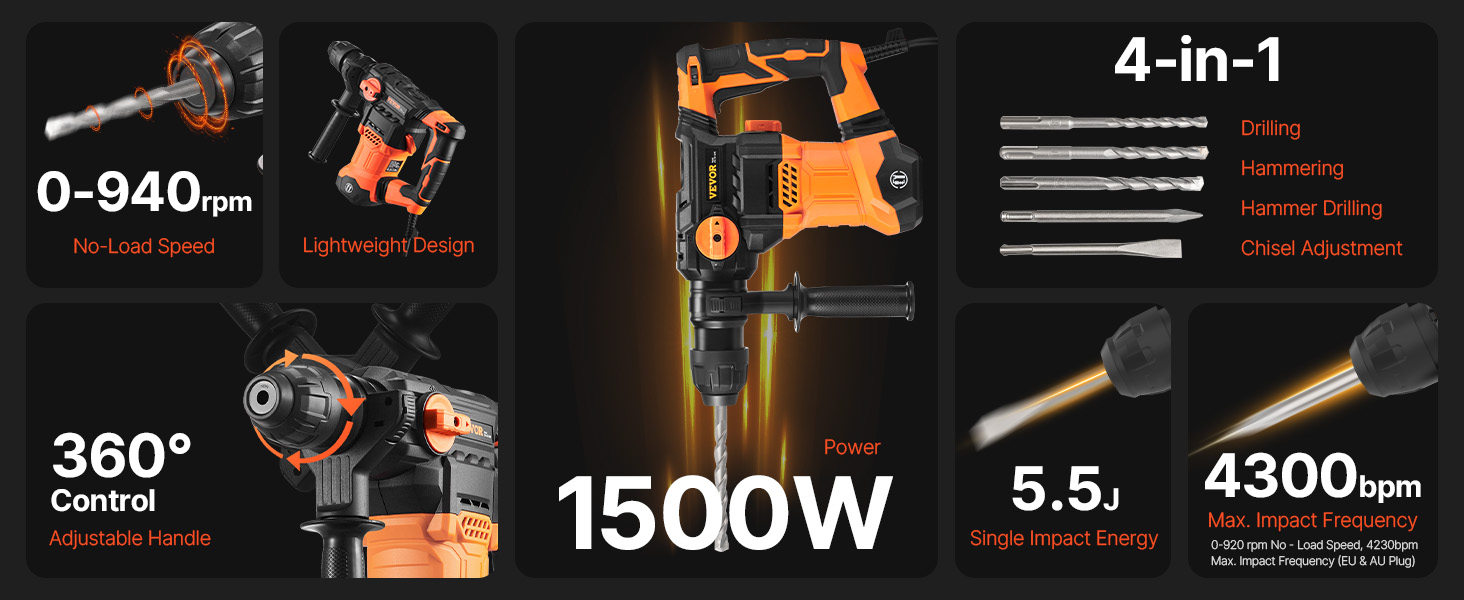

Powerful Motor & 4 Modes & Complete Accessories
Whether you are a professional worker or a DIY user, this heavy-duty hammer is your wise choice. The rotary hammer delivers 5.5J of impact energy for fast drilling in concrete. It can quickly chisel through concrete and masonry walls, take out plaster and tile, chisel through breaks and perforations in pipes in walls and floors, and does concrete repair work effortlessly. Four different functions of the drill, hammer, hammer drill, and chisel adjustment function adapt to various work scenarios. With features this good, you will be sure to blow through your next project with ease.
- Powerful & Durable Motor
- Choose Between 4 Functions
- Adjustable Speed & Vibration Control
- Designed To Go Above And Beyond
- Multifunctional
Key Features
Powerful Motor
This power hammer is equipped with a 1500W motor and high-precision bearing. It delivers powerful impact energy to complete heavy-duty concrete, Masonry, and metal projects.
4 Functions to Choose From
Four different functions of the drill, hammer, hammer drill, and chisel adjustment functions adapt to various work scenarios.
360 Degree Handle
The 360° rotary handle is designed to reduce fatigue during prolonged work. It provides accuracy and precision in some relatively narrow places.

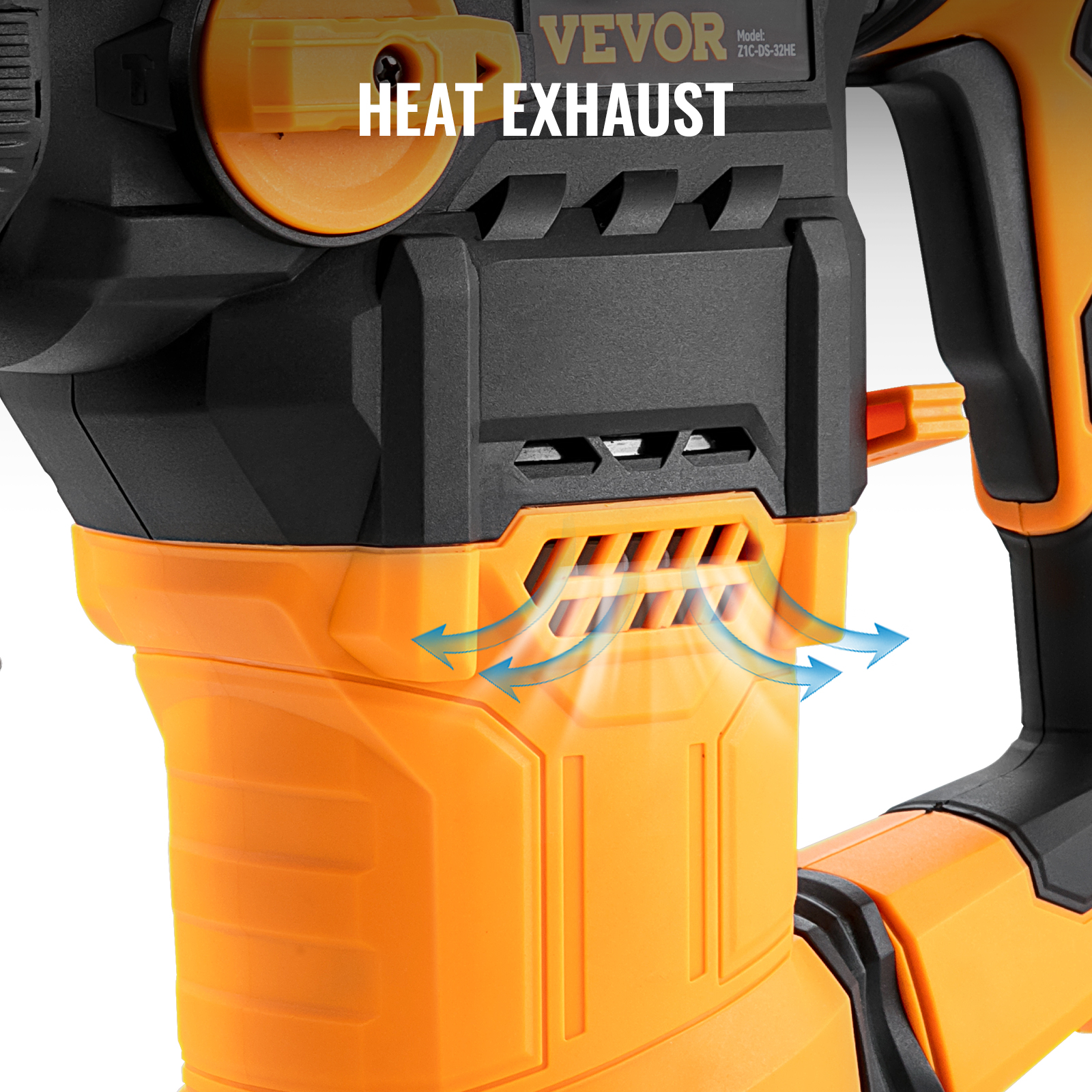

Stays Cool During Intense Work
The efficient cooling system effectively cools the motor to improve the machine’s life. The engine will be at low temperatures even after a long working time.

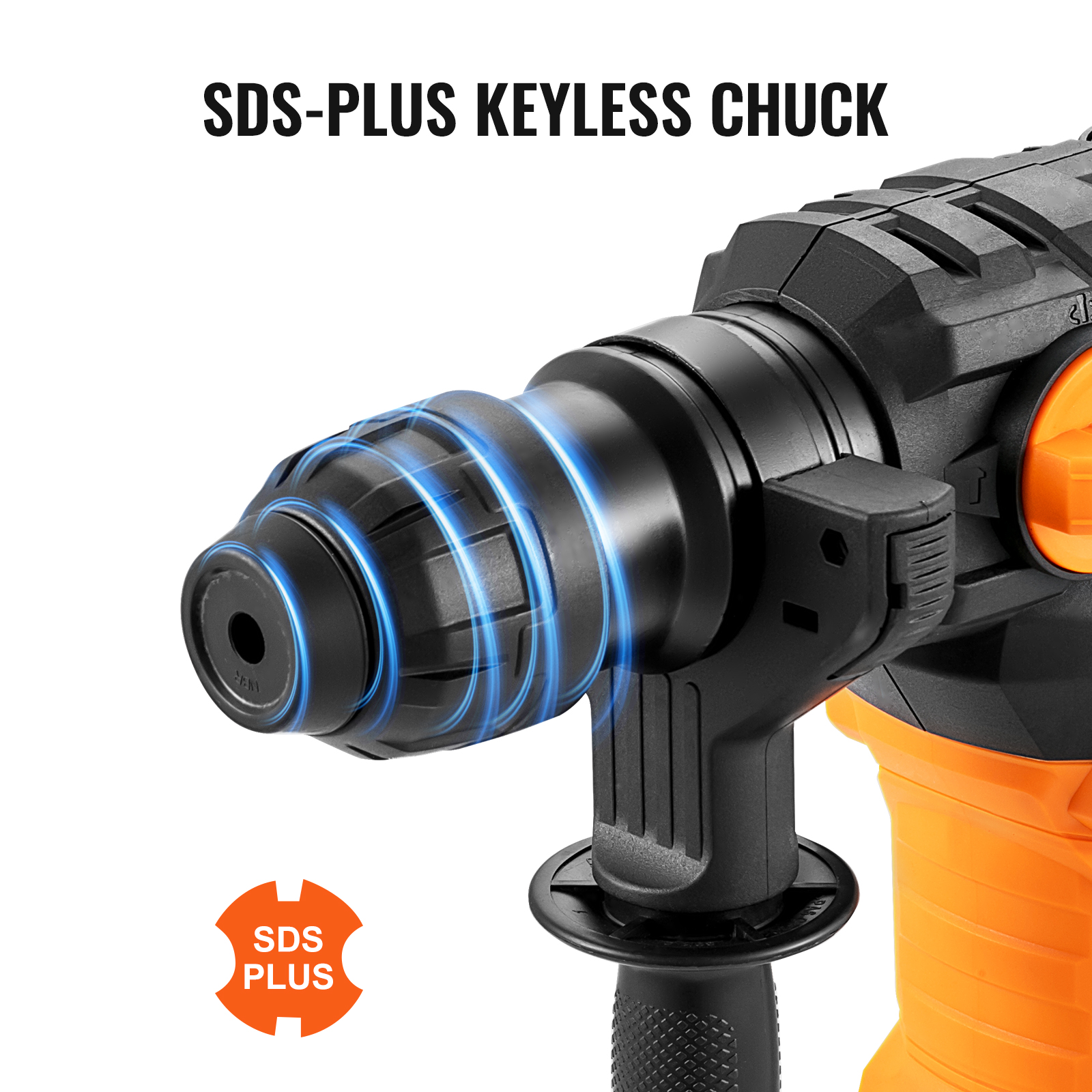

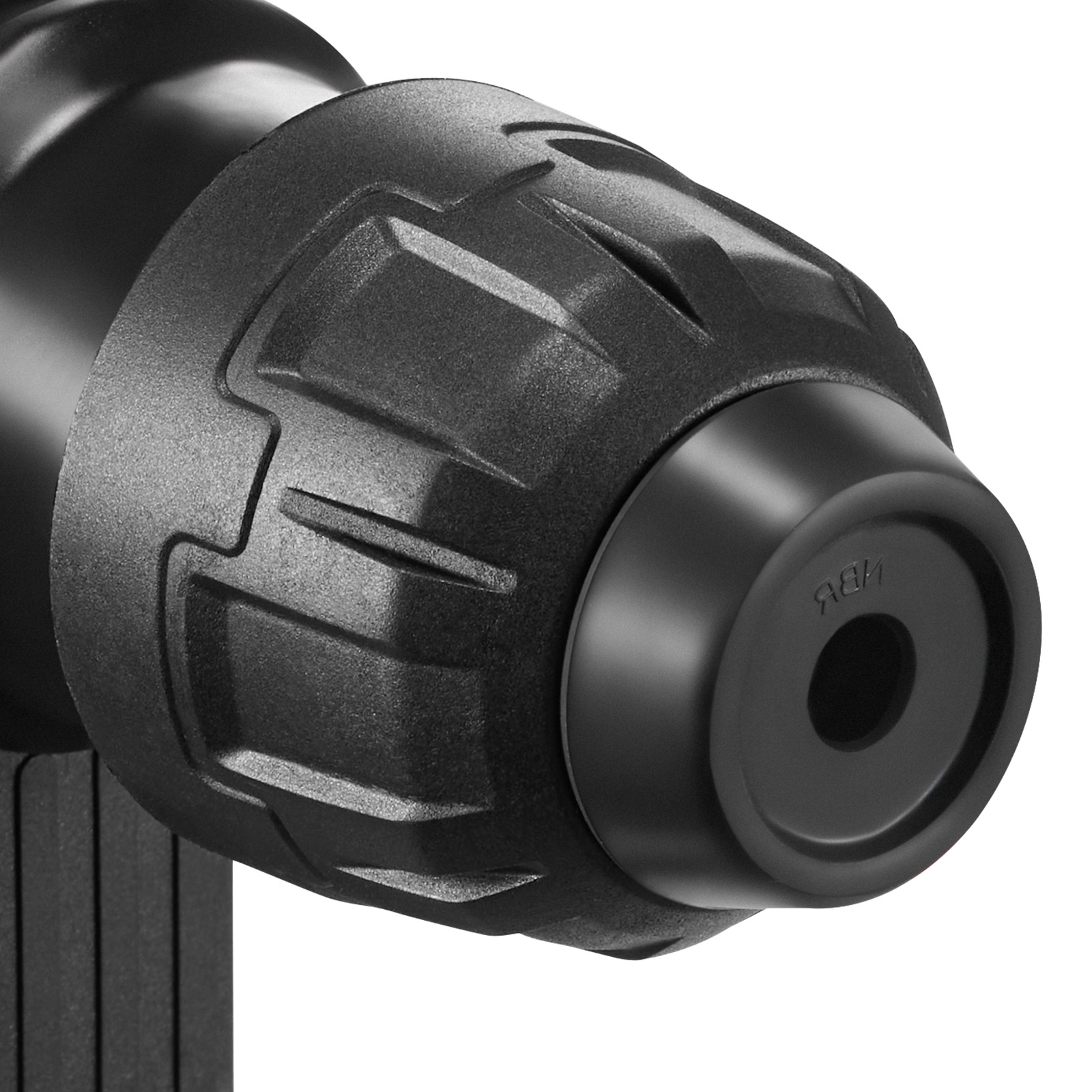

SDS-Plus Keyless Chuck
SDS-plus bit system provides tool-free bit changes to improve your work efficiency. You never need any tools to change bits in-between jobs.

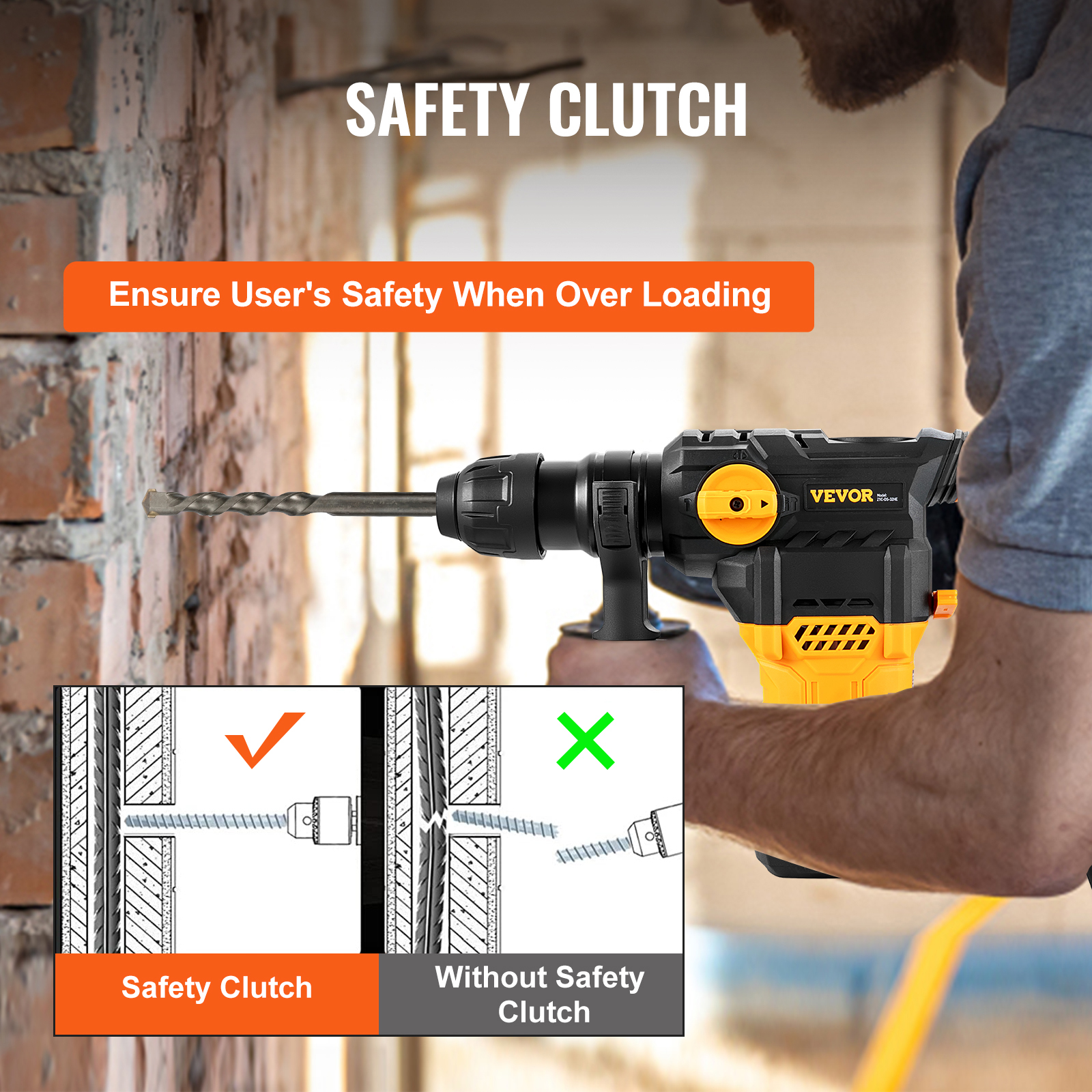

Safety Clutch
Safety clutch protection guarantees your wrist is safe when the concrete rotary hammer is experiencing high torque force.
Note: Great Oak Industrial Supply Corp. specializes in sourcing high-performance industrial tools. Manufactured by VEVOR.
Verified Customer –
Sooooooo… I bought this because it was less than the cost of renting a tool with the same capabilities for 2 days. Figured even if it only did the one job but it took 3 days I would be ahead of the game. I was NOT nice to the tool, I worked it hard, leaned on it hard, and dropped it from a ladder multiple times when tearing out the first chimney. Tool not only held up, but never showed any fatigue or signs of upcoming failure. It does feel less “industrial” in its build quality, but that light weight is actually nice when climbing ladders with it. I would definately recommend this tool to the home person trying to save money and get value for the purchase.
Verified Customer –
This is awesome. Should have bought one long ago.
Verified Customer –
Ranks right up with Bosch and Milwaukee as far as power and ease of use but more affordable for the regular joe
Verified Customer –
I’ve spent over 20yrs using hammer drills drilling anchors in concrete hanging pipe for a living. This thing is a BEAST!!
I used it to drill holes in a concrete sidewalk that was entirely too thick and then used the hammer setting to chisel it into pieces. Incredible buy! In my opinion you should look no further.
Verified Customer –
Good deal
Verified Customer –
Great tool, works great for small job. This model is a homeowner based machine, not really for the commercial world. If you are doing a DIY project like I am then this is a great tool for busting rocks, blocks, of concrete. I am installing a water line through very rocky soil and can’t really alter the path I need to take. When I hit a rock that my 1 ton mini ex can’t move, I bust it with this drill.
The set comes with everything I needed to get started – bits, instructions, grease and even extra motor brushes if you need them in the future.
Verified Customer –
I received the product
Verified Customer –
Great tool… works great
Verified Customer –
Everything worked at it should. One suggestion would be to have a bit more more for the cord in the carrying case.
Verified Customer –
Our cordless hammer drill was not getting what was needed done. This on the other hand completed the task with ease.
